Motore Eurolite 50301530 accessorio per sfera da discoteca

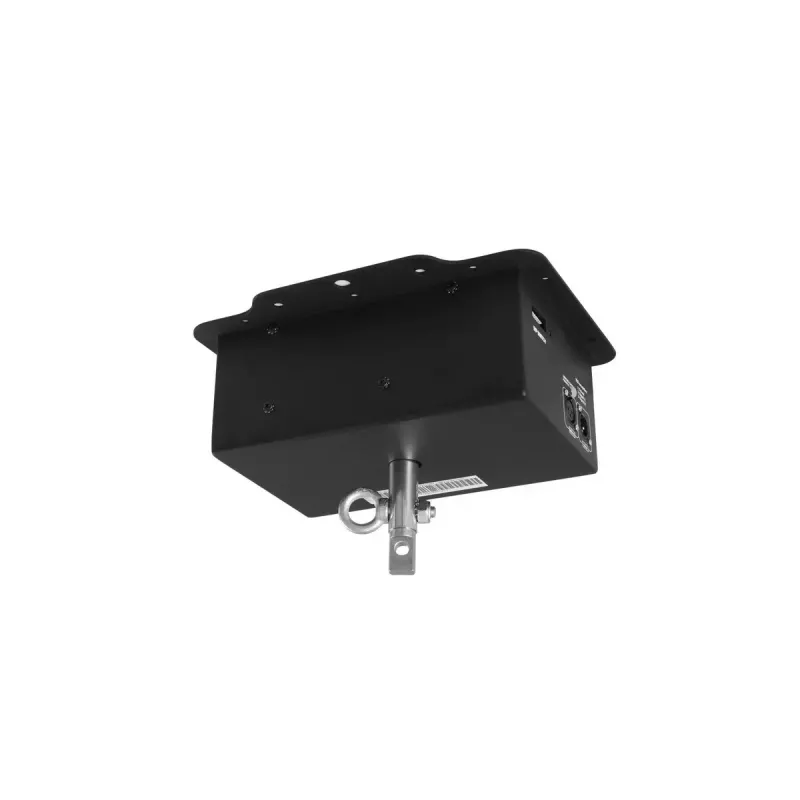

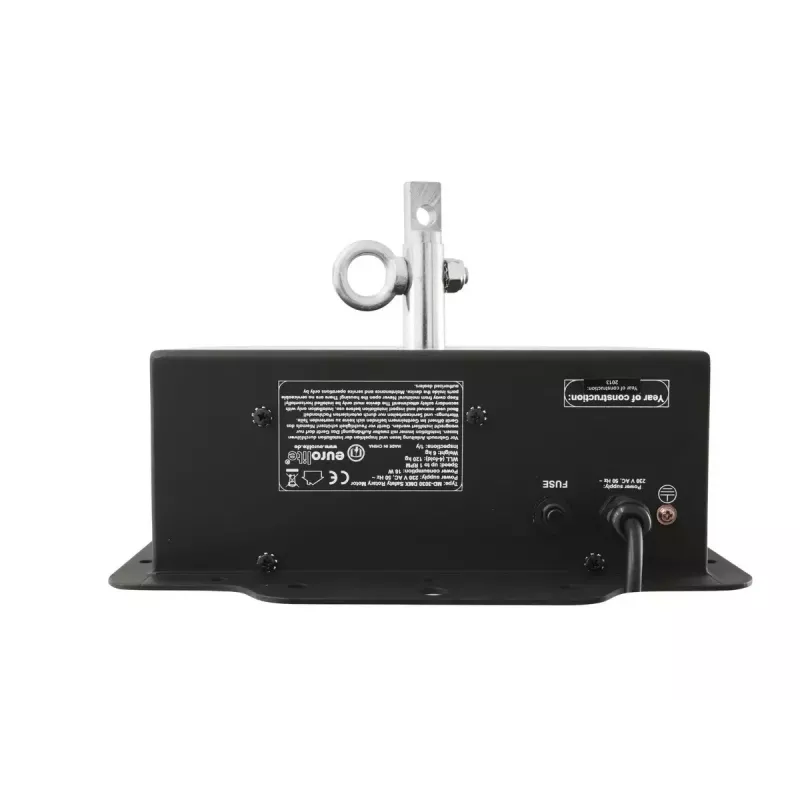

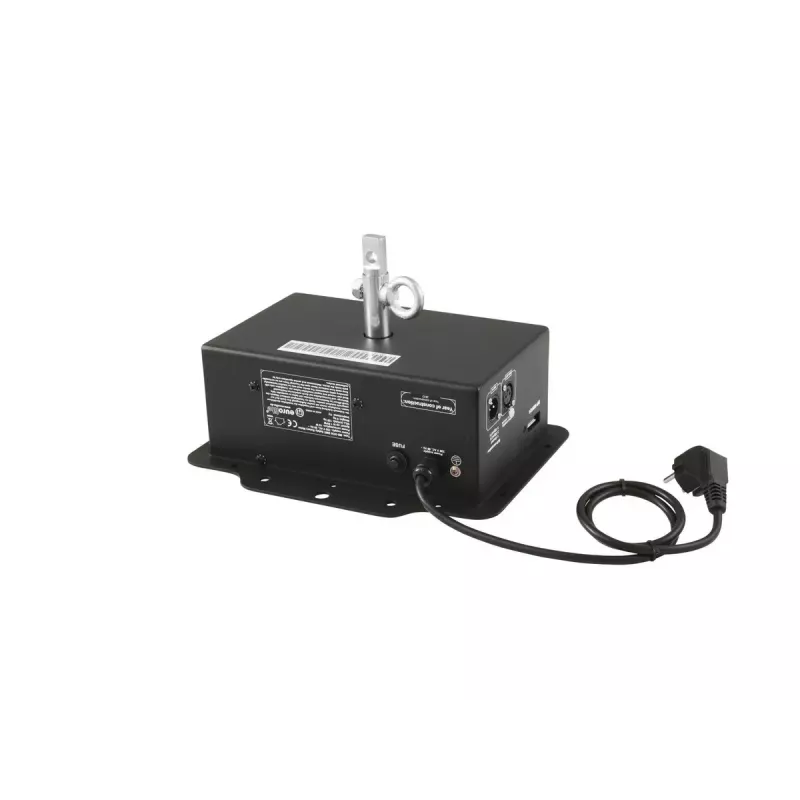

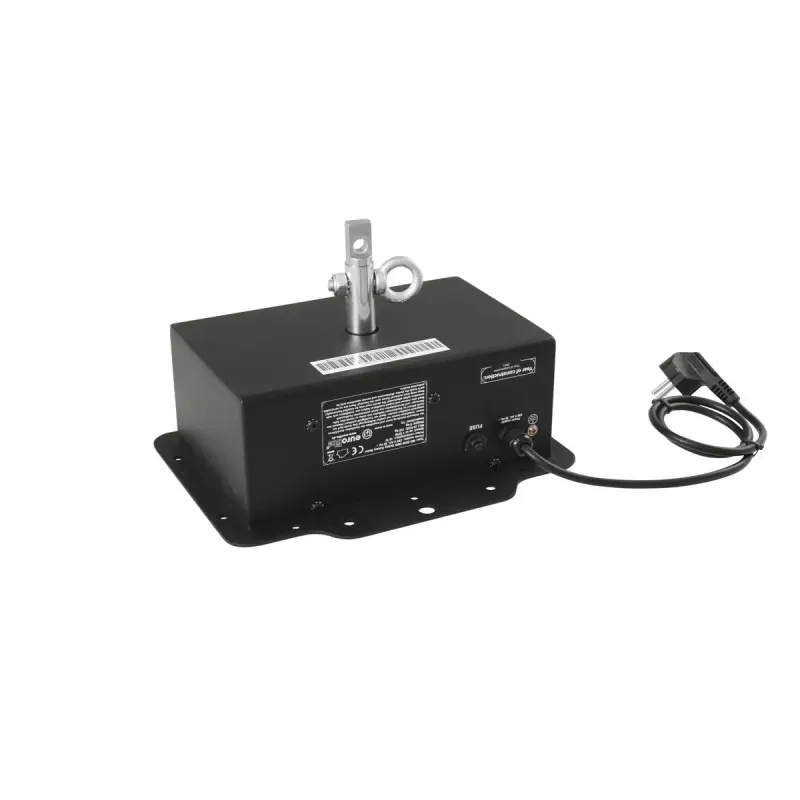

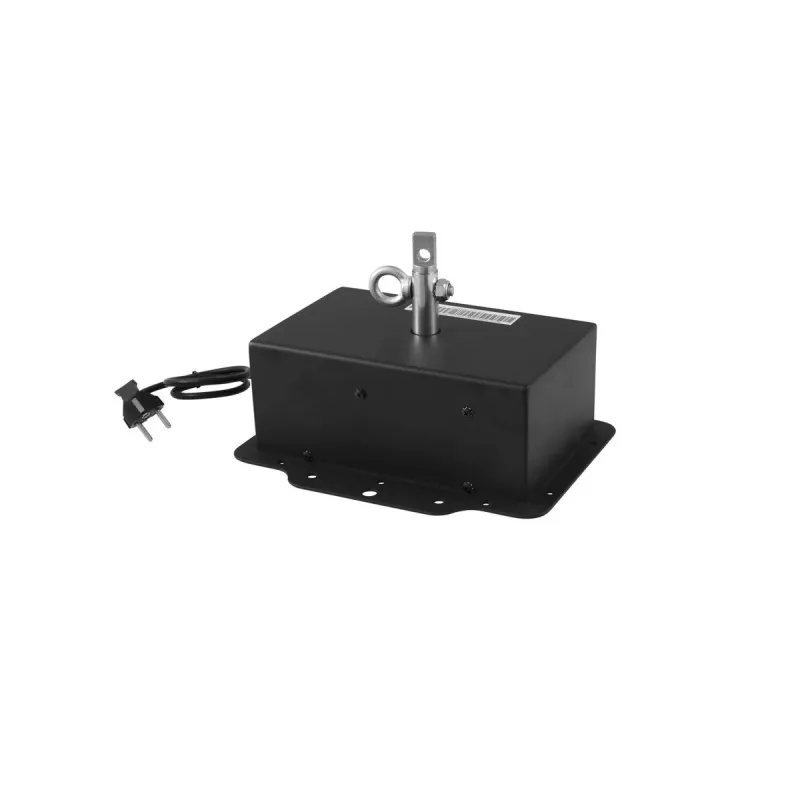

The Eurolite 50301530 disco ball motor is a compact and robust motor designed to rotate mirror balls up to 100 cm in diameter with a maximum load capacity of 40 kg. It operates from 230 V AC with a power consumption of 16 W and comes ready to use with a safety plug and power cord. The unit includes patented mechanical drop protection and a second eyelet for attaching a safety chain, meeting DIN EN ISO 12100 and relevant accident prevention regulations for use in public venues.

Advantages

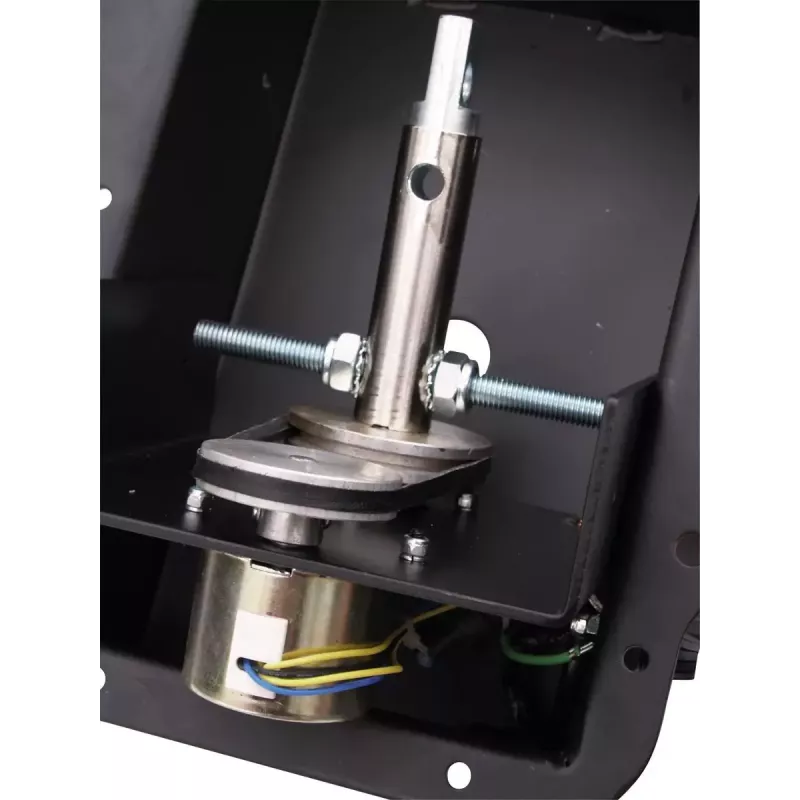

The motor offers adjustable rotation speed and reversible direction, controllable via built-in DIP switches or any standard DMX controller. It supports master-slave synchronization for multiple units without external control and features an extra safety eyelet plus patented axis protection to prevent accidental loosening. Compact dimensions and durable construction make it suitable for prolonged use in discos, theatres, and event venues.

Suitable for

Key specifications

How to use

Mount the motor securely using the provided attachment points and attach the mirror ball to the axis. Connect the safety chain to the second eyelet and plug the unit into a 230 V AC outlet using the supplied power cord and safety plug. Adjust rotation direction and speed with the DIP switches or connect to a DMX controller for remote control. For installations with several motors, configure master-slave mode to synchronise rotation without additional control equipment.

Recommendations

Regularly inspect the safety eyelet, axis connection and safety chain before each event. Ensure total load does not exceed 40 kg and confirm mirror ball diameter and weight compatibility. For fixed installations in public venues follow local regulations and perform scheduled maintenance checks.
