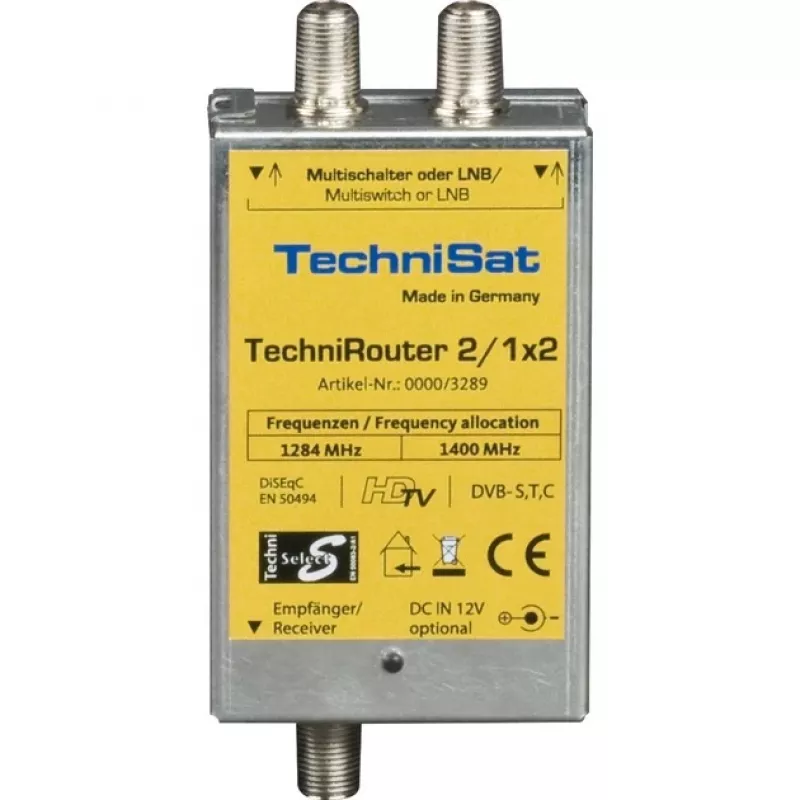

Multiswitch satellitare TechniSat TechniRouter Mini 2/1x2

The TechniSat TechniRouter Mini 2/1x2 is a compact satellite multiswitch designed for efficient distribution of DVB-S/DVB-S2 signals. It accepts two satellite LNB inputs and provides two independent outputs for receivers or set-top boxes. Built with quality components and a space-saving enclosure, the device is intended to deliver stable signal routing with minimal insertion loss for small residential or light-commercial installations.

Advantages

The TechniRouter Mini 2/1x2 offers a small footprint and straightforward installation while maintaining signal integrity. Its design focuses on low signal attenuation, reliable shielding against interference and consistent operation under typical home or small-office conditions. The unit's two outputs allow simultaneous reception on separate receivers without the need for additional splitters or amplifiers in many setups.

Key specifications

• Inputs: 2 satellite LNB inputs (DVB-S/DVB-S2 compatible)
• Outputs: 2 independent receiver outputs
• Mounting: compact enclosure suitable for wall or shelf placement
• Signal behavior: designed for low insertion loss and good shielding
• Power: passive device or requires standard satellite power through coax (depending on LNB/installation)

How to use

Connect the two coaxial cables from the satellite dish/LNBs to the two satellite inputs on the multiswitch. Use coaxial output cables to connect each receiver to one of the outputs. If your LNB or receivers require power through the coax, ensure that the appropriate receiver or external power inserter supplies voltage according to the installation instructions. After connections are secure, configure each receiver by performing channel or blind scans as required to detect available transponders and channels.
