Multiswitch satellitare Televes MS512NCQ 5 ingressi 12 uscite

The Televes MS512NCQ satellite multiswitch provides distribution of satellite signals from up to five inputs to twelve independent outputs. Designed for multi-receiver installations, it covers a wide frequency range of 950–2400 MHz and supports efficient signal handling with low power consumption. The unit is suitable for residential and commercial setups where reliable signal distribution to multiple satellite receivers is required.

Advantages

The multiswitch combines five input ports and twelve outputs in a compact housing, enabling centralized signal distribution without the need for multiple splitters. Its operating frequency range of 950–2400 MHz accommodates typical DVB-S/S2 satellite signals, while low power consumption helps reduce overall system energy use. The device maintains signal levels across all outputs within the specified voltage range, supporting stable reception on connected satellite receivers.

Suitable for

• Apartment buildings and multi-dwelling units requiring shared satellite signal distribution
• Small offices and commercial premises with multiple receiver points
• Home installations where several TVs or receivers need independent satellite feeds
• Systems combining terrestrial and satellite inputs where centralized switching is desired

Key specifications

• Inputs: 5 independent input ports for LNBs or signal sources
• Outputs: 12 independent outputs for satellite receivers
• Frequency range: 950–2400 MHz suitable for standard satellite bands
• Input voltage requirement: 12 V
• Signal level range: 92–105 dBμV
• Power consumption: 85 mA typical

How to use

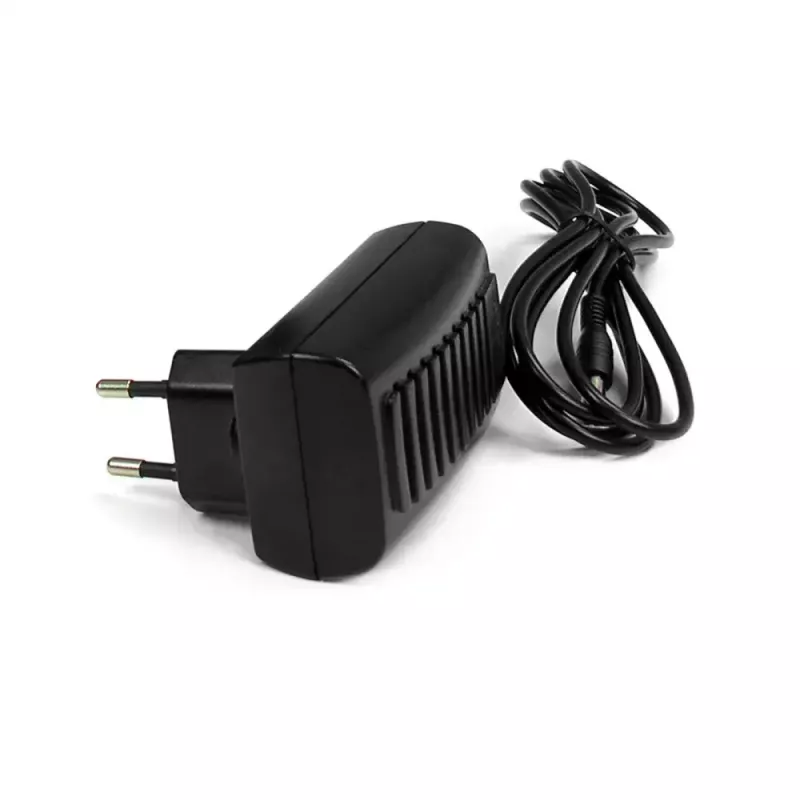

Install the multiswitch in a dry, ventilated location near the incoming satellite feed and route the LNB cables to the five input ports according to their polarity and band assignments. Connect coaxial cables from the twelve output ports to individual satellite receivers or wall outlets. Power the device with a stable 12 V supply and verify that connected receivers detect the satellite signals. Adjust any inline attenuators or amplifiers in the distribution network if signal levels at receiver inputs fall outside the recommended range.

Recommendations

Place the multiswitch in a central position in the distribution network and use high-quality, properly shielded coaxial cables and connectors to minimize signal loss. Verify compatibility of connected LNBs and receivers with the 950–2400 MHz range and ensure proper grounding of the installation for safety and signal integrity.
