Multiswitch Televes MS532C 5 in 32 out – 5 ingressi, 32 uscite multiswitch

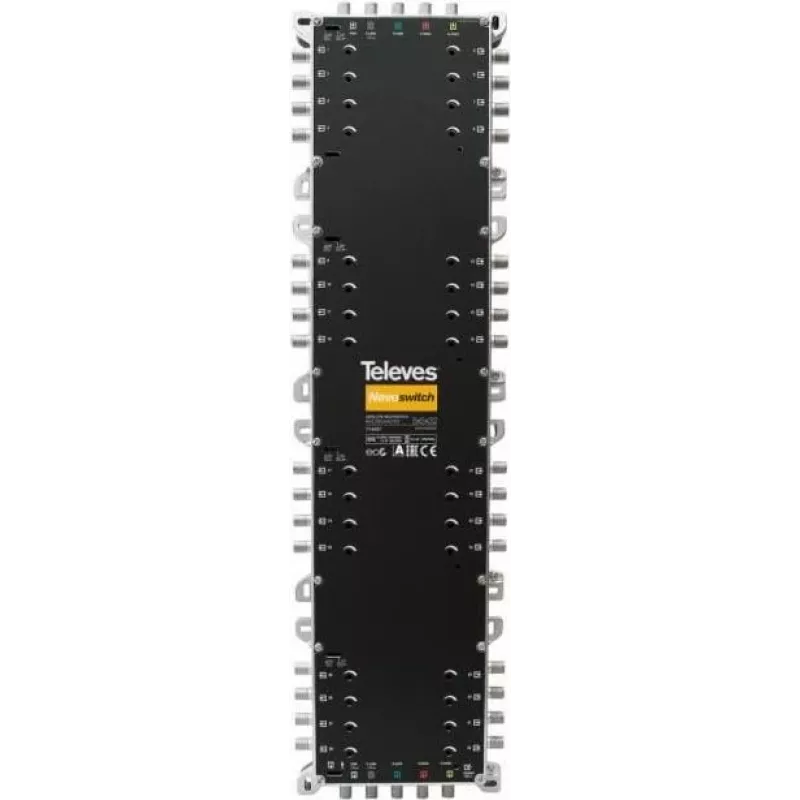

Televes MS532C 5 in 32 out is a multiswitch designed for distribution of satellite and terrestrial TV signals across medium and large installations. With five independent inputs and thirty-two outputs, this unit routes satellite polarizations, SAT IF bands and terrestrial/TV signals to multiple receivers without the need for separate LNBs at each endpoint. It is intended for use in multi-dwelling units, hotels, office buildings and other locations requiring stable multisource signal distribution.

Advantages

The Televes MS532C provides centralized signal management with stable isolation between inputs and outputs, reducing interference and preserving signal quality across multiple connected receivers. Its modular output capacity supports installation flexibility, and its robust construction ensures long-term operation in structured distribution systems. The device simplifies cabling and reduces the need for multiple distribution amplifiers when delivering satellite and terrestrial signals to many users.

Suitable for

• Multi-dwelling buildings and apartment complexes
• Hotels, hostels and guesthouses
• Office blocks and commercial premises
• Educational institutions and hospitals requiring distributed TV service
• Shared antenna systems and centralized satellite reception

Key specifications

• Inputs: 5 independent inputs for satellite polarities/bands and terrestrial signal
• Outputs: 32 independent outputs for receiver connection
• Signal types supported: Satellite IF (multiple polarizations and bands) and terrestrial/TV
• Distribution topology: Central multiswitch distribution for multi-user installations
• Mounting: Rack or wall-mountable housing suitable for telecom cabinets or equipment rooms

How to use

Install the Televes MS532C in an equipment room or cabinet, securing it to a wall or rack according to the mounting provisions. Connect the incoming satellite feeds (polarizations/bands) and the terrestrial antenna to the appropriate input ports. Run coaxial cables from the 32 outputs to each receiver or outlet point. Ensure proper grounding and follow local regulations for lightning protection and earthing. After cabling, verify signal presence and quality at representative receivers and adjust any upstream amplifiers or LNB settings as required.

Recommendations

Use high-quality coaxial cabling and connectors to minimize losses over long runs, and keep cable runs within recommended lengths for your signal frequencies. For best performance, combine the multiswitch with compatible LNBs and, where necessary, line amplifiers or equalizers to compensate for longer distribution runs. Periodically inspect connections and grounding to maintain reliable service.
