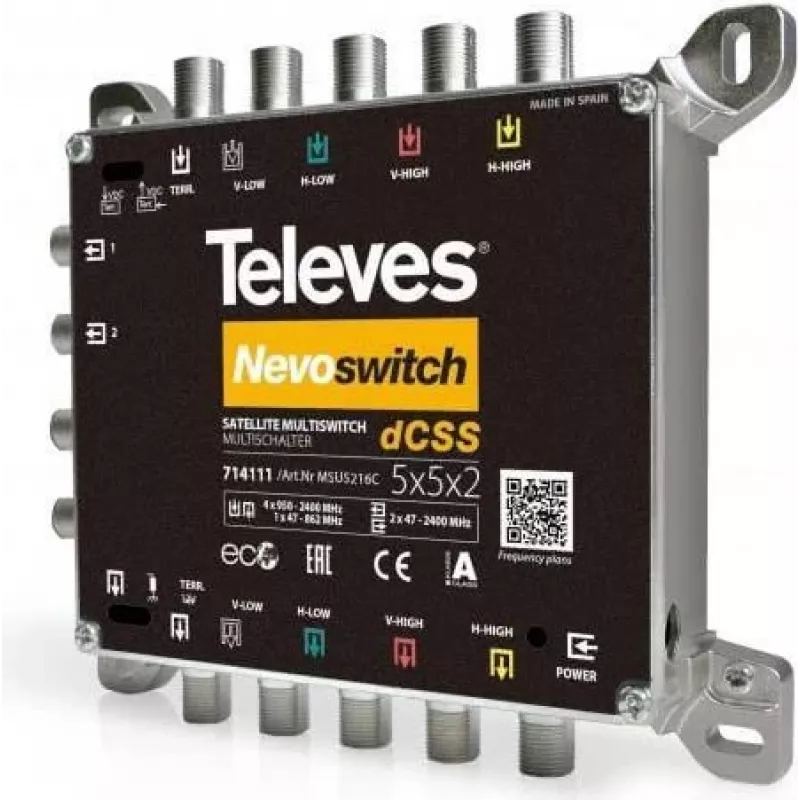

Multiswitch Televes MSU5216C 5 in 2x16 dCSS — Multiswitch per distribuzione satellitare e terrestre

Televes MSU5216C is a 5-input multiswitch engineered for centralized distribution of satellite and terrestrial television signals. The device accepts four satellite LNB polarizations and a terrestrial antenna input, combining them into two dCSS-compatible output lines with 16 user-independent channels each. Designed for multi-dwelling units and small commercial installations, the multiswitch provides stable signal routing and enables connected dCSS receivers to select channels independently over a shared coaxial infrastructure.

Advantages

The multiswitch supports dCSS technology on two outputs, allowing simultaneous independent channel selection by multiple receivers without conventional band-split limitations. Compact housing and straightforward connections simplify installation and reduce cabinet space. Signal combining of satellite and terrestrial inputs eliminates the need for additional external combiners, and the device is compatible with common single-cable distribution topologies used in residential and small commercial deployments.

Suitable for

• Apartment buildings and multi-dwelling installations
• Small hotels, guest houses and office buildings
• Shared antenna systems where independent receiver channel selection is required
• Retrofit projects upgrading legacy multiswitches to dCSS-compatible infrastructure

Key specifications

• Inputs: 4 satellite polarizations + 1 terrestrial antenna
• Outputs: 2 dCSS-compatible output lines, each providing up to 16 independent channels
• Technology: dCSS (digital channel stacking switch) support for independent subscriber access
• Signal combination: integrated satellite and terrestrial signal combiner
• Form factor: compact multiswitch housing suitable for equipment racks or distribution cabinets

How to use

Install the multiswitch in a central distribution point and connect the four outputs of the satellite LNB to the satellite input ports and the terrestrial antenna to the terrestrial input. Run coaxial cables from each of the two dCSS outputs to distribution amplifiers or directly to riser lines serving subscriber apartments or rooms. Ensure that connected receivers support dCSS to permit independent channel selection; for receivers without dCSS support, conventional switching behavior will apply. Follow standard safety and grounding practices for antenna and distribution equipment during installation.

Recommendations

For reliable operation, use quality coaxial cables (75 Ω) with proper shielding and minimize cable lengths where possible. Verify receiver compatibility with dCSS and configure receiver settings according to the satellite operator or headend requirements. If signal levels need adjustment, use appropriate inline amplifiers or attenuators designed for combined satellite and terrestrial distribution.
