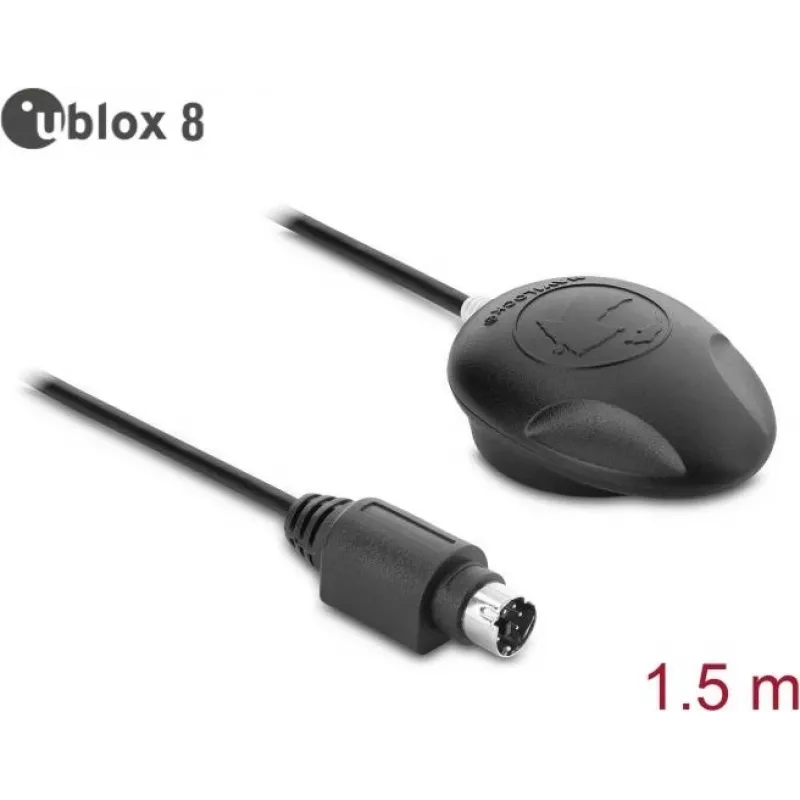

Navilock NL-804P EVA-M8Q MD6 ricevitore multi-GNSS seriale PPS u-blox 8, cavo 1,5 m 62021

Multi-GNSS receiver with integrated u-blox EVA-M8Q module, delivering precise positioning across GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS constellations. The standout feature is its PPS output with 30 ns accuracy, enabling tight time synchronization for industrial and scientific applications. Housed in a rugged IPX7 waterproof enclosure, it connects via a 1.5 m MD6 serial cable and operates reliably from -40 °C to +85 °C.

Advantages

The 72-channel u-blox M8 engine ensures fast fixes and high sensitivity down to -167 dBm, maintaining lock even in challenging environments. With a position update rate of up to 10 Hz and 2.5 m CEP accuracy, it suits dynamic tracking. The PPS signal provides a precise timing reference, ideal for synchronization tasks. Its compact, weatherproof design and wide temperature range allow deployment in harsh conditions.

Suitable for

• Fleet management and vehicle tracking
• Precision agriculture and surveying
• Time synchronization for industrial control systems
• Outdoor navigation and robotics
• Marine and aviation applications

Key specifications

• GNSS Module: u-blox EVA-M8Q
• Supported systems: GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
• Channels: 72
• Interface: Serial RS-232, MD6 connector
• Cable length: 1.5 m
• PPS output: Yes, 30 ns RMS accuracy
• Update rate: up to 10 Hz
• Position accuracy: 2.5 m CEP
• Sensitivity: -167 dBm tracking, -148 dBm cold start
• Power: 5 V DC, approx. 40 mA
• Operating temperature: -40 °C to +85 °C
• Water resistance: IPX7
• Protocols: NMEA 0183, UBX binary
• Antenna: Integrated patch
• Cold start time: 26 s

Recommendations

For reliable multi-constellation positioning with precise timing, the Navilock NL-804P is an excellent choice. Its robust build and high sensitivity make it suitable for both mobile and fixed installations. Ensure your system provides 5 V DC and an RS-232 port for seamless integration.
