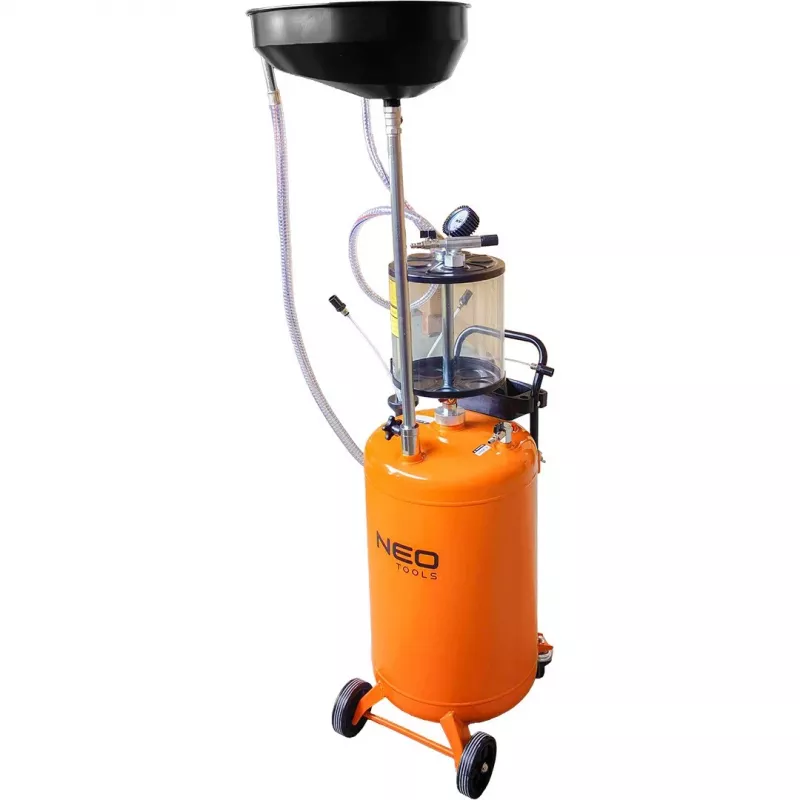

NEO TOOLS 10-811 aspiratore pneumatico mobile per olio con serbatoio di controllo, serbatoio principale 80L, serbatoio trasparente 10L, pressione aria 6-8 bar, 4 ruote piroettanti

Old engine oil, transmission fluid, and differential oil can be messy and time-consuming to extract without the right equipment. The NEO TOOLS 10-811 mobile pneumatic oil sink suction machine solves this problem by using compressed air to create a powerful vacuum, allowing you to drain fluids quickly and cleanly from vehicles and machinery. With an 80-litre main tank and a separate 10-litre inspection tank, this unit is built for workshops and garages that need reliable, high-volume fluid extraction.

Who is it for

This oil extractor is ideal for professional mechanics, automotive service centres, and industrial maintenance teams. It is especially useful for those who work with cars, trucks, agricultural equipment, or stationary engines where access to the oil drain plug is difficult or where fast turnaround is required. The pneumatic operation means no manual pumping, reducing operator fatigue and increasing productivity.

Main features

• Pneumatic vacuum extraction using standard workshop air supply (6–8 bar / 0.6–0.8 MPa)
• Large 80-litre main tank for extended use without frequent emptying
• Separate 10-litre inspection tank with sight glass for measuring extracted fluid volume
• Pneumatic discharge system for easy emptying of collected oil
• Includes multiple suction probes: copper and flexible nylon, in diameters 5 mm, 6 mm, and 8 mm
• Four swivel casters for easy manoeuvrability around the workshop
• Steel tank construction for durability and resistance to workshop conditions
• Safety valve and pressure gauge for controlled operation

Specifications

• Main tank capacity: 80 L
• Inspection tank capacity: 10 L
• Working air pressure: 6–8 bar (0.6–0.8 MPa)
• Vacuum degree: -0.7 to -0.9 bar
• Air inlet connection: 1/4" NPT
• Suction probes: copper and flexible nylon, 5 mm, 6 mm, 8 mm
• Discharge method: pneumatic pressure
• Mobility: 4 swivel casters
• Tank material: steel
• Suitable fluids: engine oil, transmission fluid, differential oil (non-corrosive)
• Max oil temperature for suction: 80°C
• Discharge hose length: approx. 2 m
• Suction hose length: approx. 1.5 m
• Pressure gauge: yes
• Safety valve: yes
• Sight glass: yes (inspection tank)

Tips

Always check that the oil temperature is below 80°C before suction to prevent damage to hoses and seals. Use the inspection tank to measure small volumes accurately before transferring to the main tank. Regularly drain the main tank and clean the suction probes to maintain optimal performance.
