NEO TOOLS 75-144 livella laser a 5 linee Green Beam 20 m con fissaggio magnetico e valigetta

Where many cross-line lasers stop at two planes, the NEO TOOLS 75-144 pushes alignment further with five green beams — four vertical, one horizontal, and a plumb-down point — all visible up to 20 metres. The green diode (520 nm) is markedly brighter to the human eye than red, so layout work stays readable even in well-lit interiors. A pendulum self-levelling system settles within ±3° and holds accuracy to ±1 mm per 5 m, while the pulse mode extends the working range when paired with an optional receiver.

Highlights

• Five green laser lines: 4 vertical + 1 horizontal + plumb-down dot
• 20 m working range, extendable with receiver in pulse mode
• ±1 mm / 5 m levelling accuracy, self-levelling within ±3°
• Class 2 laser, 520 nm wavelength, IP54 dust and splash protection
• Rechargeable Li-ion battery, up to 8 hours continuous use

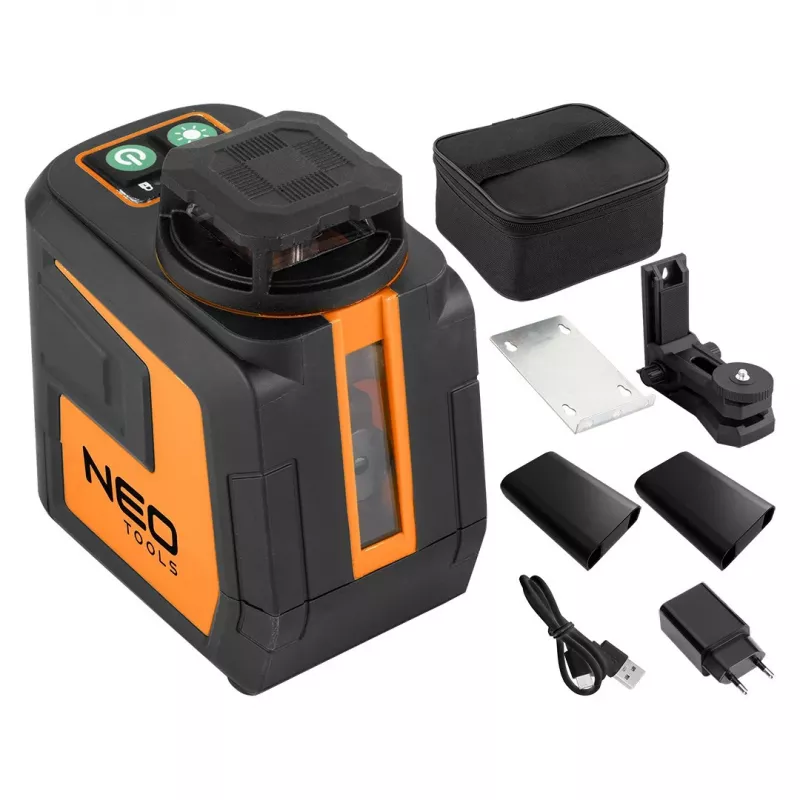

• Includes magnetic wall mount and hard carrying case

In daily use

Mount the 75-144 on the included magnetic bracket, set it on a tripod via the 1/4" or 5/8" thread, or place it on a flat surface. Switch it on and the pendulum unlocks, projecting crisp green lines for tiling, stud layout, cabinet installation, or drop-ceiling grid. The plumb-down dot transfers points from floor to ceiling, and the four vertical lines cover corners and 90° layouts in one setup. When working outdoors or over longer distances, activate pulse mode and use a compatible receiver to pick up the beam beyond the visible range.

Full specifications

• Brand: NEO TOOLS
• Model: 75-144
• MPN: 75-144
• EAN: 5906692024292
• Laser class: Class 2
• Laser wavelength: 520 nm (green)
• Number of laser lines: 5 (4 vertical, 1 horizontal)
• Beam direction: 4x vertical, 1x horizontal, 1x plumb down
• Maximum range: 20 m
• Levelling accuracy: ±1 mm / 5 m
• Self-levelling range: ±3°
• Leveling type: Automatic (pendulum)
• IP rating: IP54
• Power source: Rechargeable Li-ion battery
• Battery life: Up to 8 hours continuous use
• Operating temperature: -10°C to +50°C
• Tripod thread: 1/4" and 5/8"
• Pulse mode: Yes (for receiver use)
• Included accessories: Magnetic wall mount, carrying case

Final note

The NEO TOOLS 75-144 combines multi-line coverage, green-beam visibility, and a complete accessory kit in one portable package — a practical choice for professionals who need fast, accurate layout on every job.
