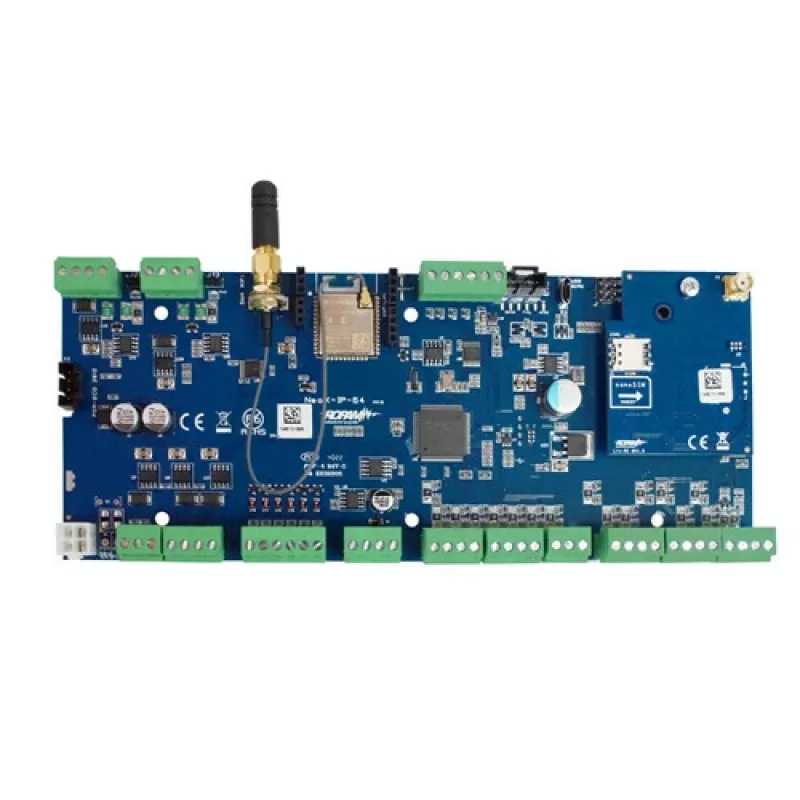

NEO TOOLS ROPAM Pannello di controllo NEOLTE-IP-64 Sistema di allarme ibrido

The NEO TOOLS ROPAM Control Panel NEOLTE-IP-64 is a hybrid alarm control panel that combines wired and wireless security capabilities. Designed for professional installations, it supports up to 64 zones and 64 outputs, with integrated LTE and Ethernet communication for reliable remote monitoring and control.

Advantages

This control panel offers flexible expansion via the RopamNET bus, dual SIM support for failover connectivity, and remote firmware updates. It is EN 50131 Grade 2 compliant, ensuring high security standards. The panel supports voice messaging, push notifications, and smart home integration.

Suitable for

• Residential and commercial security systems
• Installations requiring hybrid wired/wireless zones
• Remote monitoring via mobile app (RopamBridge), SMS, or voice

Key specifications

• System Type: Hybrid (Wired/Wireless)
• Max. Zones: 64
• On-board Wired Zones: 8
• Max. Outputs: 64
• On-board Programmable Outputs: 4
• User Capacity: 64 (Users + Administrators)
• Partition Capacity: 8
• Communication: Integrated LTE (2G/3G/4G), Ethernet (LAN)
• SIM Card Support: Dual SIM
• Event Memory: 10,000 events
• Power Supply Input: 17-20V AC or 20-24V DC
• Standby Current: ~150 mA (without peripherals)
• Battery Backup: Yes (7Ah or 17Ah recommended)
• Operating Temperature: -10°C to +55°C
• Compliance: EN 50131 Grade 2
• Expansion Bus: RopamNET
• Control Methods: Keypads, Mobile App (RopamBridge), SMS, Voice
• Integrated Features: Voice messaging, PUSH notifications, Email alerts, Smart Home functions
• Firmware Update: Remote via RopamBridge/USB

Recommendations

For optimal performance, use a 7Ah or 17Ah backup battery and ensure proper ventilation. The panel is designed for indoor installation only.
