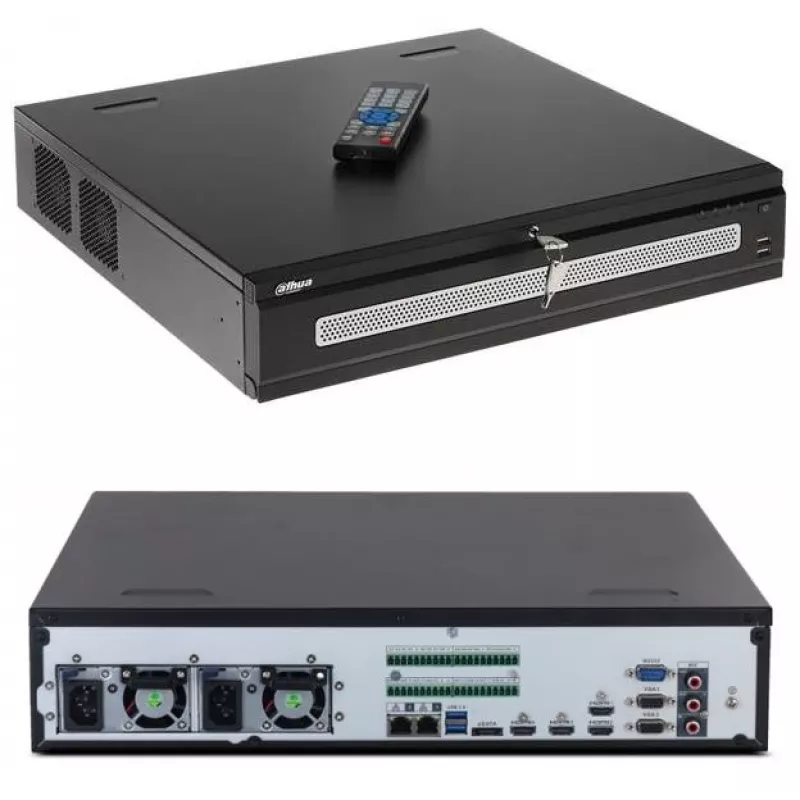

Network Video Recorder Dahua 64CH 8HDD 2U AI NVR608RH-64-XI

The Dahua NVR608RH-64-XI is a high-performance 64-channel AI network video recorder designed for professional surveillance systems. With 8 SATA III HDD bays supporting up to 128 TB total storage, RAID 0/1/5/6/10, and advanced AI functions including face recognition and ANPR, this 2U rackmount NVR delivers robust recording and intelligent analytics for medium to large-scale deployments.

Advantages

Supports up to 64 IP cameras with 384 Mbps input bandwidth; AI capabilities such as perimeter protection, SMD Plus, face recognition, ANPR, people counting, and heat mapping; RAID support for data redundancy; dual HDMI 4K outputs; and reliable 24/7 operation in temperatures from -10°C to +55°C.

Suitable for

• Commercial and industrial security systems
• Retail stores, warehouses, and logistics centers
• Government and public safety installations
• Large-scale multi-site surveillance networks

Key specifications

• 64-channel IP video input
• 8 SATA III HDD bays, up to 16 TB each (128 TB total)
• RAID 0/1/5/6/10 support
• AI: Perimeter protection (16 ch), SMD Plus (16 ch), Face recognition (8 ch), ANPR (8 ch), People counting (8 ch), Heat map (8 ch)
• Decoding: 2-ch@32MP (20fps) / 8-ch@8MP (25fps) / 32-ch@1080P (25fps)
• Video compression: Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
• 2x HDMI (up to 4K), 1x VGA (up to 1080P)
• 2x RJ-45 10/100/1000 Mbps Ethernet
• 2x USB 2.0, 2x USB 3.0
• Alarm: 16 in / 8 out; Audio: 1 in / 2 out (RCA)
• Power: AC100-240V, 50/60Hz
• Operating temperature: -10°C to +55°C

Recommendations

For optimal performance, pair with Dahua AI cameras and use enterprise-grade HDDs (e.g., WD Purple or Seagate SkyHawk). Ensure proper ventilation in the rack for continuous operation.
