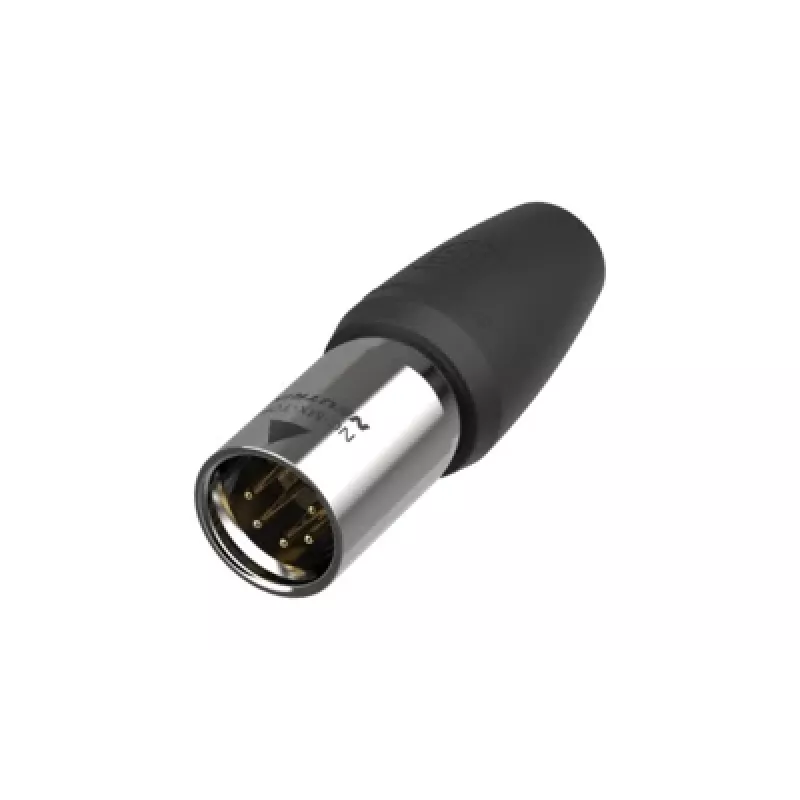

Neutrik NC5MX1-TOP connettore maschio per cavo XLR a 5 poli, maschio, nero, IP65

The NC5MX1-TOP from Neutrik's TOP series is a 5-pin XLR male cable connector engineered for outdoor and demanding environments. Its black chrome-plated zinc diecast housing and IP65 rating when mated set it apart from standard XLR connectors, providing reliable protection against dust and water ingress.

Highlights

• 5-pin XLR male plug with straight body style
• IP65 rated when mated for outdoor use
• Gold-plated contacts for superior signal integrity
• Durable black chrome-plated zinc diecast housing
• Solder cup termination for secure cable assembly

In daily use

Designed for professional audio, lighting, and control applications, this connector accommodates cable diameters from 5.0 to 8.0 mm and supports up to 7.5 A per contact. Its robust construction withstands over 1000 mating cycles, ensuring long-term reliability in the field.

Full specifications

• Connector type: XLR
• Gender: Male (plug)
• Number of pins: 5
• Body style: Straight
• Colour: Black
• Series: TOP (Outdoor Protection)
• IP rating: IP65 (when mated)
• Contact plating: Gold
• Housing material: Zinc diecast, black chrome plated
• Insulation material: Polyamide (PA 6.6)
• Cable outer diameter range: 5.0 - 8.0 mm
• Termination type: Solder cups
• Rated current per contact: 7.5 A
• Rated voltage: < 50 V
• Contact resistance: < 3 mΩ
• Dielectric strength: 1.5 kVdc
• Insulation resistance: > 10 GΩ (initial)
• Mating cycles: > 1000
• Temperature range: -30 °C to +80 °C
• Flammability rating: UL94 V-0

Final note

A rugged, weather-resistant XLR connector built to perform in challenging conditions.
