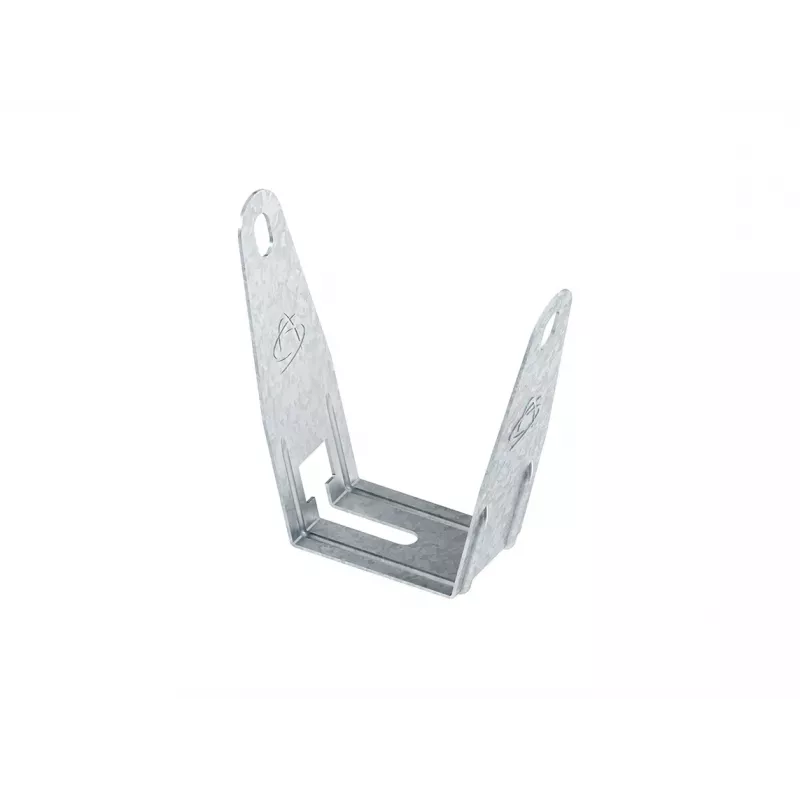

Niedax DBT70S-50 supporto a soffitto per barra filettata M10, acciaio, zincato sendzimir

The Niedax DBT70S-50 is a robust ceiling bracket designed for secure mounting of cable trays, conduits, and other installations using M10 threaded rods. Manufactured from high-quality steel with a Sendzimir-galvanized (pre-galvanized) surface treatment, this bracket offers excellent corrosion resistance and long-lasting durability. Ideal for indoor dry environments, it provides a reliable support solution for electrical and mechanical installations.

Advantages

High load capacity of up to 1.0 kN (approx. 100 kg) ensures safe support for heavy cable bundles and equipment. The pre-galvanized finish protects against rust and extends product life. Easy to install with a single ceiling fixing point and 11 mm hole diameter, compatible with standard M10 threaded rods. Compact L-shaped design saves space and simplifies alignment.

Suitable for

• Cable tray support systems
• Conduit and pipe hanging
• General ceiling mounting of electrical equipment
• Industrial and commercial building installations

Key specifications

• Product Type: Ceiling Bracket / Hanger
• Material: Steel, Sendzimir-galvanized
• Threaded Rod Compatibility: M10
• Load Capacity: Up to 1.0 kN (static)
• Ceiling Fixing Hole Diameter: 11 mm
• Number of Threaded Rod Connections: 1
• Number of Ceiling Fixing Points: 1
• Colour: Metallic (Silver)
• Series: DBT
• Standard Compliance: DIN EN 10346

Recommendations

For optimal performance, use with Niedax M10 threaded rods and appropriate ceiling anchors. Ensure the ceiling structure can support the intended load. Suitable for indoor dry environments; for outdoor or humid conditions, consider additional corrosion protection.
