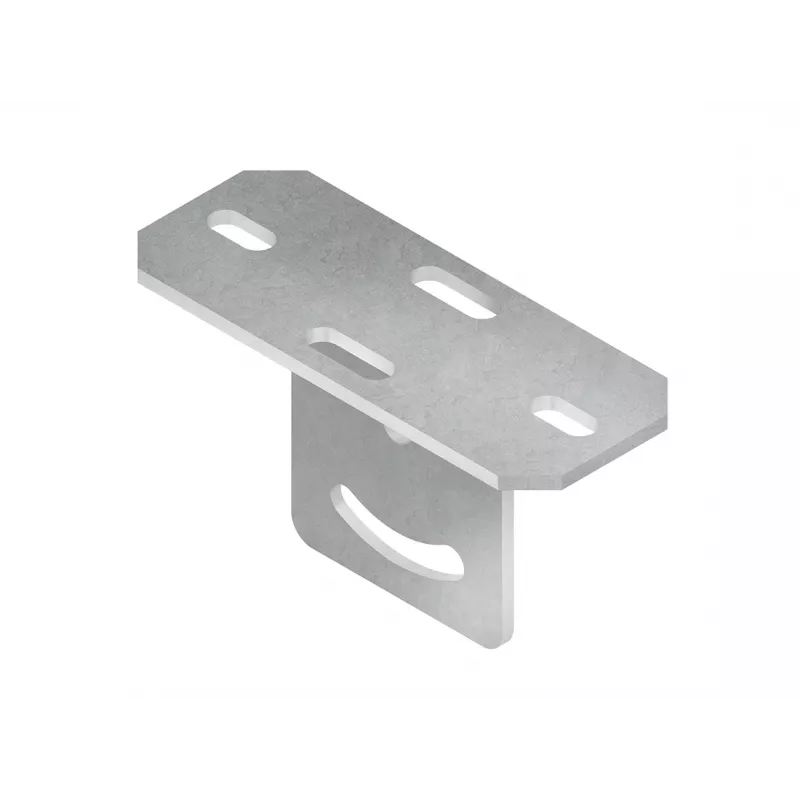

Niedax KUGV50 Piastra verticale a testa di vite zincata a caldo 50x50x50 mm

The Niedax KUGV50 Vertical Screw Head Plate is a robust mounting component designed for secure support and attachment of cable trays, mesh trays, and conduits in Niedax cable management systems. Manufactured from high-quality steel with a hot-dip galvanized finish according to DIN EN ISO 1461, this plate offers excellent corrosion protection for both indoor and outdoor installations.

Advantages

Hot-dip galvanized surface ensures long-lasting durability and resistance to environmental influences. Compact 50x50x50 mm dimensions with 2.5 mm material thickness provide reliable strength. Pre-drilled holes simplify installation: one main attachment hole (6.8 mm) for M6 screw and two wall mounting holes (7 mm).

Suitable for

• Support and mounting of cable trays
• Mesh tray installations
• Conduit fastening
• Vertical mounting applications in cable management systems

Key specifications

• Product Type: Vertical Screw Head Plate
• Material: Steel, hot-dip galvanized
• Dimensions: 50 x 50 x 50 mm
• Material Thickness: 2.5 mm
• Main Attachment Hole Diameter: 6.8 mm (for M6 screw)
• Number of Main Attachment Holes: 1
• Wall Mounting Holes: 2, diameter 7 mm
• Corrosion Protection: Yes (DIN EN ISO 1461)
• Colour: Metallic Grey

Recommendations

For optimal performance, use with Niedax cable trays and appropriate M6 screws. Suitable for both indoor and outdoor environments where corrosion resistance is required.
