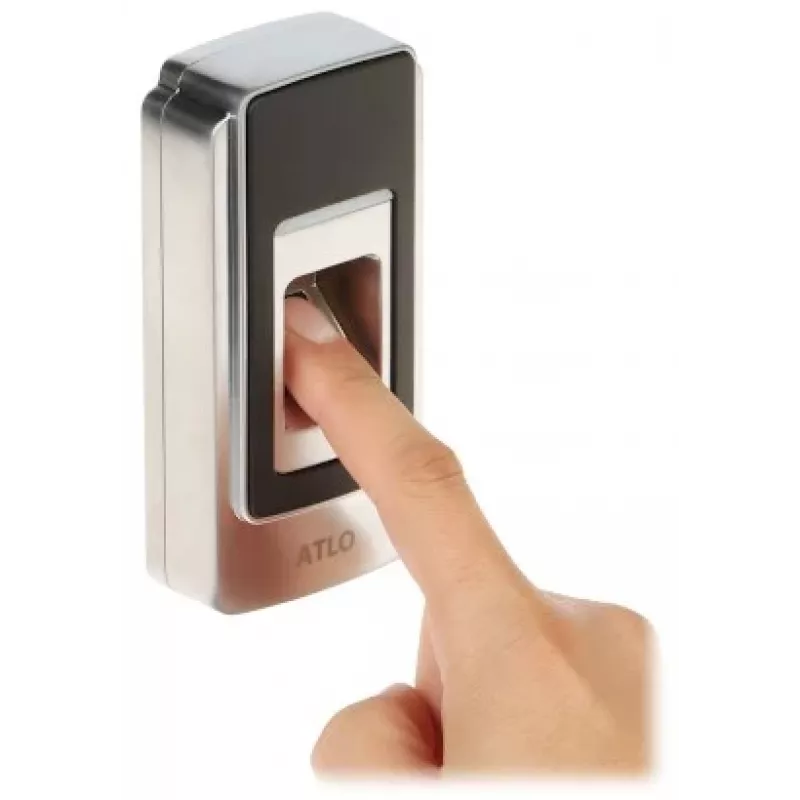

ATLO-RFM-505 lettore di impronte digitali con terminale di controllo accessi RFID e tastiera

Security teams in offices and warehouses rely on the ATLO-RFM-505 to manage employee access without the hassle of keycards alone. This terminal combines a fingerprint sensor, RFID card reader, and PIN keypad into one wall-mounted unit, so you can choose the authentication method that fits each user. It connects over TCP/IP, RS485, or USB and includes Wiegand input/output for integration with existing door controllers.

Key specifications

• Authentication methods: fingerprint, RFID card (EM 125kHz), PIN
• Optical fingerprint sensor with capacity for 1,000 fingerprints
• Supports up to 1,000 users and 1,000 RFID cards
• Event log stores up to 100,000 access records
• Communication: TCP/IP, RS485, USB host, Wiegand 26/34 input & output
• Door control: lock relay, alarm relay, exit button, door sensor
• Power: DC 12V (operating range 9V–15V DC)
• Operating temperature: -10°C to 50°C; humidity 10%–90% RH non-condensing
• Monochrome LCD display and touch keypad
• Includes PC management software for time attendance and access control

Why choose it

The ATLO-RFM-505 gives you three authentication options in one device, reducing the need for separate readers. Its optical sensor is reliable for daily use, and the built-in event log helps with audits. The Wiegand interface makes it compatible with many third-party controllers, while the included software simplifies user enrollment and reporting.

Ideal use cases

• Office buildings needing multi-factor access at main entrances
• Warehouses and factories tracking employee time and attendance
• Server rooms or restricted areas requiring biometric verification
• Small businesses upgrading from keypad-only systems

Good to know

Installation requires a standard 12V DC power supply and a door lock relay connection. The reader is designed for indoor use and should be mounted in a protected location. The package includes the terminal, mounting hardware, and management software.
