Curva camino 45/90° con apertura di pulizia, 150 mm, Acciaio nero

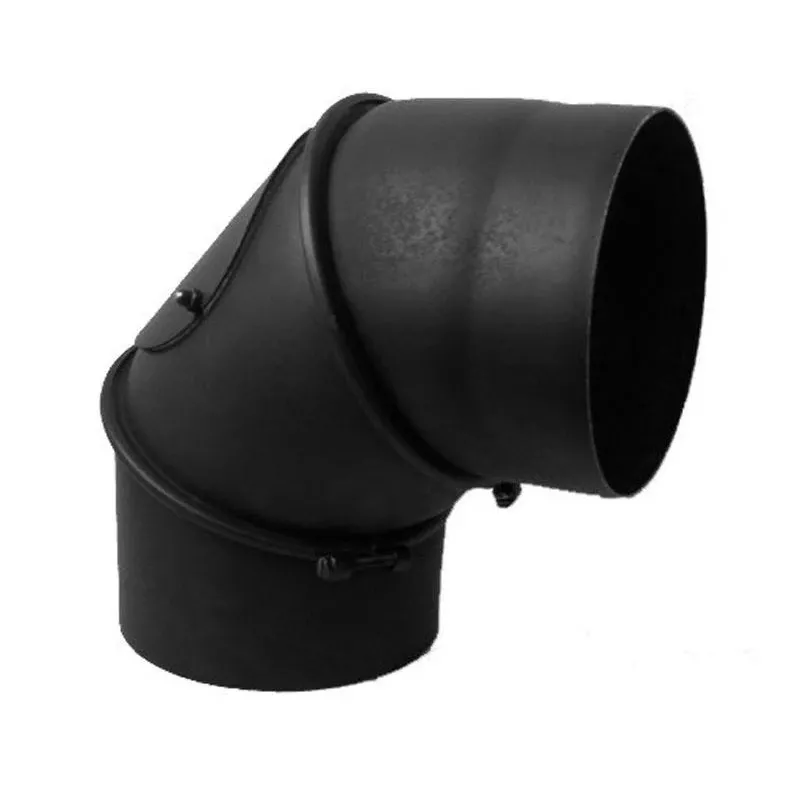

Connecting a solid fuel appliance to a chimney system often requires navigating bends and offsets without sacrificing access for maintenance. This 150 mm black steel elbow solves that by offering an adjustable angle from 45° to 90° and an integrated cleanup port, ensuring efficient flue gas routing and easy soot removal.

Who is it for

Designed for installers and homeowners working with wood stoves, coal boilers, or peat-burning fireplaces, this elbow is ideal for creating smooth transitions in chimney systems where a straight pipe cannot be used. It suits both new installations and retrofits in residential or light commercial settings.

Main features

• Adjustable angle from 45° to 90° for flexible routing around obstacles
• Integrated cleanup port with cover for convenient chimney sweeping
• Durable 2.0 mm black steel construction for long service life
• High-temperature Senotherm paint finish rated up to 600°C
• Push-fit spigot connection for quick, tool-free assembly
• CE certified for solid fuel applications

Specifications

• Nominal diameter: 150 mm
• Material: Black steel, 2.0 mm thickness
• Coating: Senotherm high-temperature paint
• Maximum operating temperature: 600°C
• Fuel compatibility: Wood, coal, peat
• Connection type: Spigot (male/female), push-fit
• Certification: CE
• Brand series: Darco K-Series
• Country of manufacture: Poland

Tips

For optimal performance, ensure the elbow is installed with the correct orientation to maintain proper draft. Use the cleanup port at least once per heating season to remove creosote buildup and reduce fire risk. Always follow local building codes and manufacturer guidelines for chimney components.
