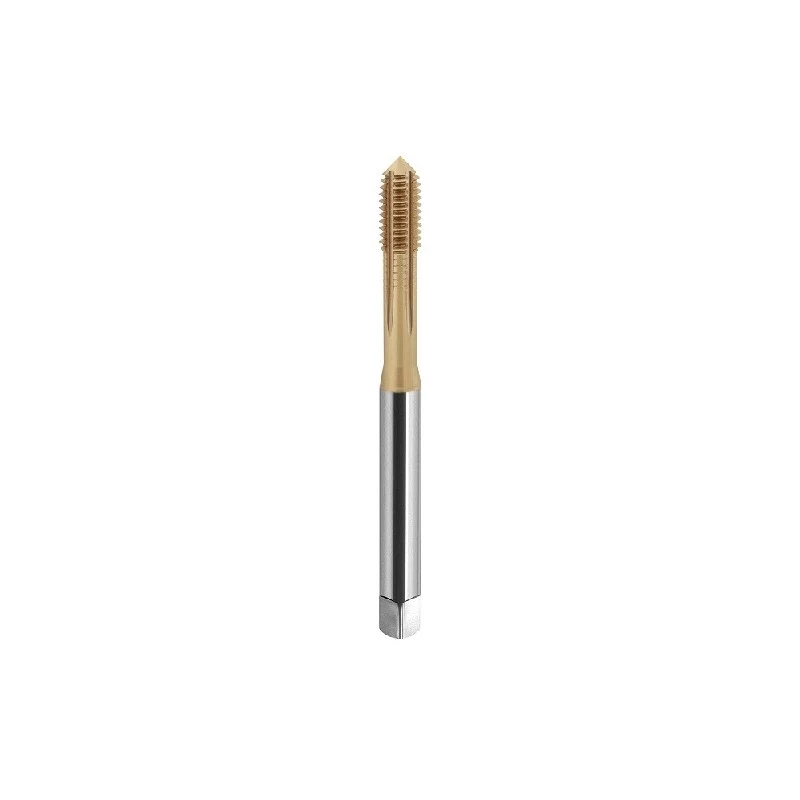

Maschio per filettare a rullare M10 DIN 371C (6HX) SR HSSE-PM WGN TiN

Creating strong, precise internal threads in ductile materials without the mess and weakness of chips is a challenge. This thread forming tap solves that by cold-forming threads, resulting in stronger, more accurate threads with superior surface finish. Ideal for through and blind holes in materials like stainless steel, aluminum, and copper alloys, it eliminates chip disposal issues and reduces tap breakage risk.

Who is it for

Machinists and manufacturing professionals who need reliable thread production in high-volume or precision applications. Perfect for those working with ductile steels, stainless steels, aluminum, and copper alloys, especially where chip removal is problematic or thread strength is critical.

Main features

• Chip-less cold forming technology for stronger threads with excellent surface quality.
• Premium HSSE-PM (powder metallurgy high-speed steel with cobalt) for exceptional wear resistance and toughness.
• TiN (Titanium Nitride) coating reduces friction and extends tool life.
• Reinforced shank (SR) for enhanced rigidity and reduced deflection.
• Ground profile ensures high precision and consistent thread quality.
• DIN 371C standard with 6HX tolerance class for reliable interchangeability.

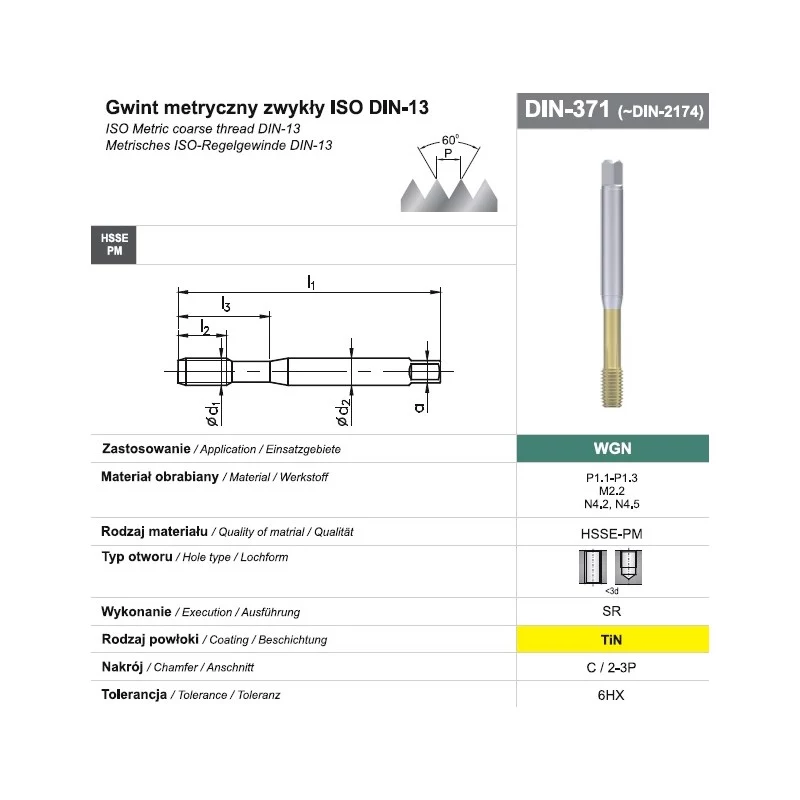

Specifications

• Product Type: Thread Forming Tap
• Thread Standard: Metric Coarse
• Nominal Diameter: M10
• Thread Pitch: 1.5 mm
• Tolerance Class: 6HX
• Tool Standard: DIN 371C
• Material: HSSE-PM
• Coating: TiN
• Shank Type: Reinforced Shank
• Shank Diameter: 7.0 mm
• Square Drive Size: 5.5 mm
• Overall Length: 100 mm
• Thread Length: 20 mm
• Coolant Compatibility: Oil, Emulsion, Dry
• Tool Series: WGN
• Manufacturing Process: Ground Profile

Tips

For best results, use a suitable lubricant and ensure proper alignment. This tap is suitable for both through and blind holes. Store in a dry place to prevent coating damage.
