Pompa WC WAVE 600W con lame trituratrici

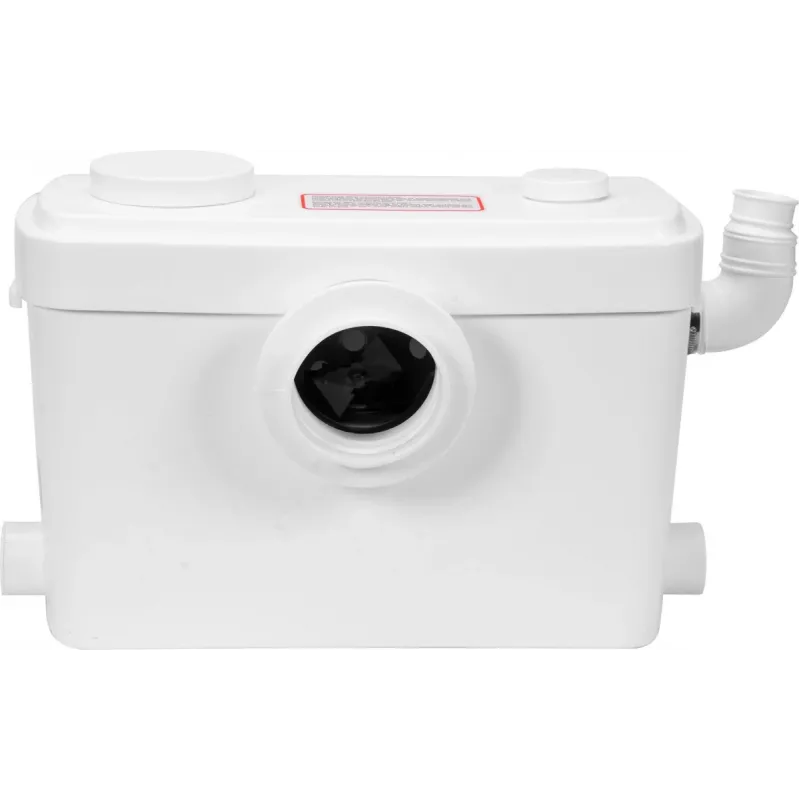

The WAVE WC Pump 600W with Cutting Knives tackles the challenge of installing a toilet, sink, or shower in spaces without direct access to the main drain line. Its integrated stainless steel macerating blades grind waste into a fine slurry, allowing discharge through a small 32 mm pipe over distances up to 80 metres horizontally or 8 metres vertically. Unlike standard sewage pumps that demand large-diameter plumbing, this unit works with a standard 100 mm WC inlet and two auxiliary 40 mm inlets, making it a practical retrofit solution for basements, extensions, or loft conversions.

Highlights

• Powerful 600 W motor with stainless steel cutting knives for efficient waste maceration
• Handles a full bathroom suite: WC, shower, sink, and bidet simultaneously
• Compact ABS housing with IPX4 splash protection for humid environments
• Automatic float switch operation – starts and stops as needed
• Thermal overload protection prevents motor damage during heavy use

In daily use

The pump activates automatically when the float switch detects rising water, macerating and discharging waste quickly and quietly (under 50 dB). Its 1.2 m power cable and standard 220–240 V connection simplify installation. The 45 °C maximum liquid temperature accommodates typical wastewater from washing machines or dishwashers when connected to an auxiliary inlet. With a flow rate of 140 L/min, it clears the bowl rapidly, reducing the chance of backups. The ABS housing resists corrosion and is easy to wipe clean.

Full specifications

• Power: 600 W
• Voltage: 220–240 V, 50 Hz
• Maximum vertical lift (head): 8 m
• Maximum horizontal discharge: 80 m
• Maximum flow rate: 140 L/min
• WC inlet diameter: 100 mm
• Auxiliary inlet diameter: 40 mm (2 inlets)
• Outlet diameter: 32 mm
• Cutting mechanism: stainless steel macerating knives
• Housing material: ABS plastic
• Protection class: IPX4
• Maximum liquid temperature: 45 °C
• Automatic operation: yes (float switch)
• Noise level: < 50 dB
• Thermal overload protection: yes
• Pump type: macerator waste water pump
• Applications: WC, shower, sink, bidet
• Cable length: 1.2 m

Final note

The WAVE WC Pump 600W delivers dependable waste removal for challenging installations, combining robust maceration with quiet, automatic operation in a compact, splash-proof design.
