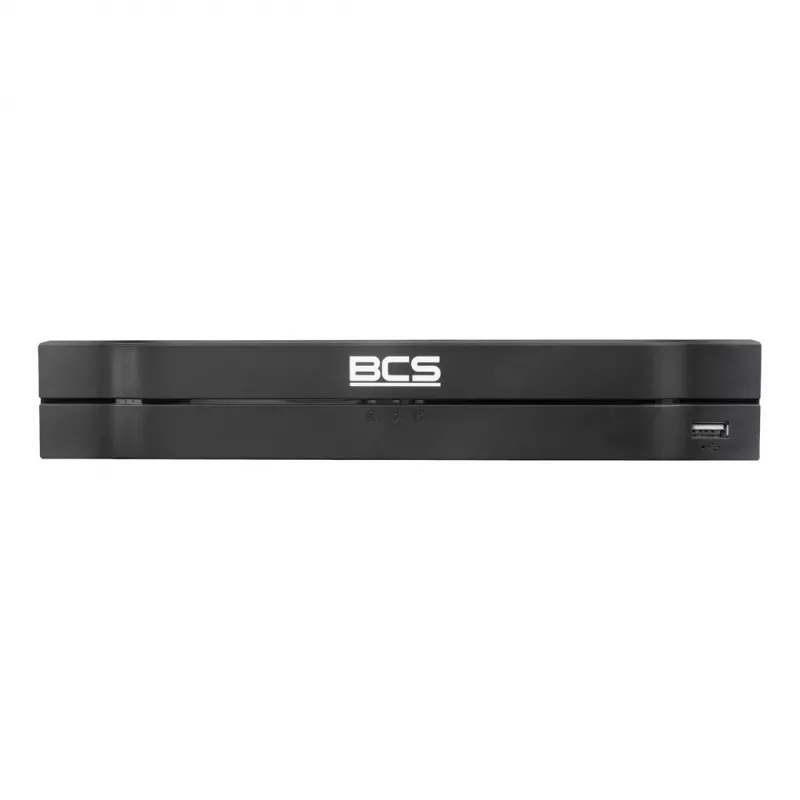

NVR PoE 4K 16 canali BCS BCS-L-NVR1602-A-4KE-16P(2)

The BCS-L-NVR1602-A-4KE-16P(2) is a professional 16-channel network video recorder with built-in 16-port PoE switch, designed for high-resolution IP surveillance systems. Supporting up to 8MP (4K) recording per channel, this NVR delivers exceptional image clarity and advanced compression technologies (H.265+/H.265/H.264+/H.264) to optimize storage and bandwidth. With a maximum incoming/outgoing bandwidth of 160 Mbps, it ensures smooth recording and remote access for up to 16 cameras simultaneously.

Advantages

Integrated 16-port PoE (IEEE 802.3af/at) with a total power budget of 150W simplifies installation by powering cameras directly via Ethernet cables, eliminating the need for separate power supplies. Dual SATA ports support up to 20TB total storage (10TB per HDD), providing ample space for long-term recording. The NVR features both HDMI (up to 4K) and VGA (up to 1080p) outputs for local monitoring, along with audio and alarm I/O for comprehensive security integration.

Suitable for

• Medium to large retail stores, warehouses, and office buildings requiring 16-channel 4K surveillance
• Outdoor and indoor installations where PoE simplifies cabling
• Applications needing reliable 24/7 recording with H.265+ efficiency

Key specifications

• 16 IP camera channels, max 8MP (4K) per channel
• 16x PoE ports (802.3af/at), total 150W
• 2x SATA ports, up to 10TB each (max 20TB)
• Video compression: H.265+/H.265/H.264+/H.264
• 1x HDMI (4K), 1x VGA (1080p) output
• 1x RCA audio in, 1x RCA audio out
• 4x alarm input, 2x alarm output
• 1x Gigabit Ethernet RJ-45
• 1x USB 2.0 (front), 1x USB 3.0 (rear)
• Power: AC 100-240V, 50/60Hz
• Operating temperature: -10°C to +55°C

Recommendations

For optimal performance, use compatible BCS PoE IP cameras and enterprise-grade SATA HDDs rated for surveillance. Ensure proper ventilation and avoid exceeding the PoE power budget.
