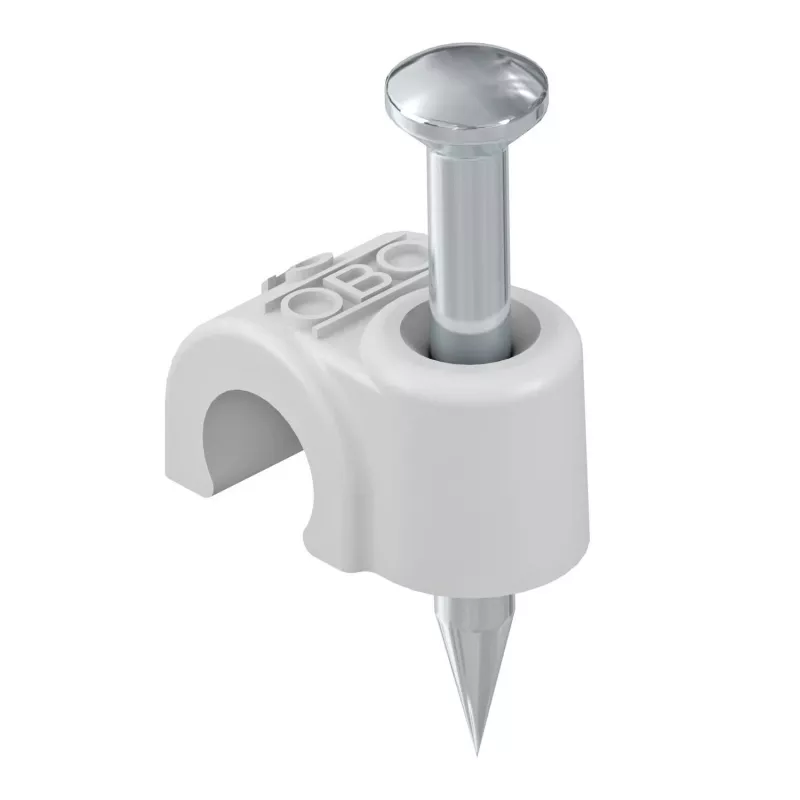

OBO Bettermann clip chiodo isolata 10mm grigio chiaro 100 pezzi (2227800)

Securing cables and conduits to walls or wood can be time-consuming and risky if the fastening damages the insulation. The OBO Bettermann Insulated Nail Clip 10mm offers a quick, safe solution: a pre-mounted galvanized steel nail and a polyamide clip that holds the cable without crushing it, while providing electrical insulation.

Who is it for

Electricians and installers who need to fasten round cables or conduits with a diameter of 10 mm to wooden or masonry surfaces. Ideal for residential, commercial, and industrial wiring projects where speed and reliability matter.

Main features

• Clamping diameter: 10 mm
• Material: polyamide (PA), light grey
• Pre-mounted galvanized steel nail for hammer-in installation
• Insulated clip prevents cable damage and provides electrical separation
• Halogen-free, UV-resistant, and flame retardant
• Temperature range: -20 °C to +85 °C
• Pack of 100 pieces

Specifications

• Product type: Insulated nail clip
• Manufacturer series: OBO Bettermann 2010
• Clamping diameter: 10 mm
• Material: Polyamide (PA)
• Colour: Light grey (LGR)
• Mounting type: Nail (pre-mounted steel nail)
• Nail material: Steel, galvanized
• Installation method: Hammer-in
• Quantity per pack: 100 pieces
• Temperature resistance: -20 to +85 °C
• Halogen-free: Yes
• UV-resistant: Yes
• Flame retardant: Yes
• Application: For insulated fastening of cables and conduits
• Suitable for cable type: Round cables, conduits

Tips

Use a hammer with a plastic head or a nail set to avoid damaging the clip when driving the nail. Ensure the surface is suitable for nailing; for hard materials, pre-drill a pilot hole.
