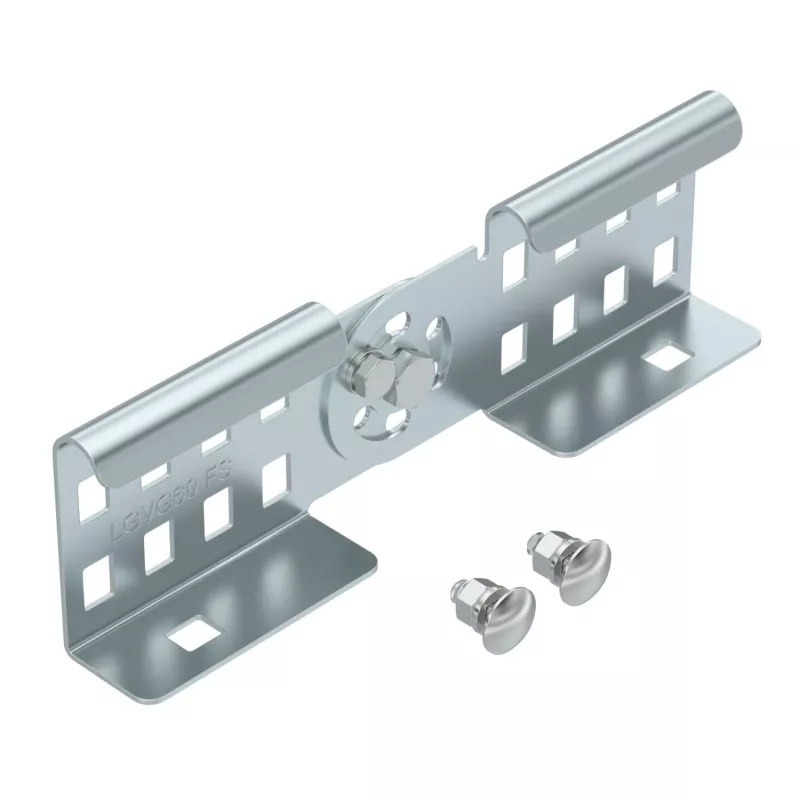

OBO Bettermann giunto di collegamento LGVG60F 64x210 zincato a nastro (6208941)

The OBO Bettermann LGVG60F joint connector stands out for its ability to link mesh cable trays at adjustable angles, enabling horizontal, vertical, and diagonal connections in one compact component. Unlike fixed-angle connectors, this strip-galvanized steel piece adapts on site to the required routing, making it a practical choice for complex tray layouts.

Highlights

• Adjustable angle for flexible tray connections
• Strip galvanized finish for corrosion protection
• Compatible with 60 mm side height mesh trays
• DIN EN 61537 compliant

In daily use

Installers benefit from the screw-mount design, which allows quick and secure attachment without special tooling. The 210 mm length and 64 mm width provide a stable overlap, while the 20 mm height keeps the profile low. Suitable for indoor applications where a metallic galvanized appearance is acceptable.

Full specifications

• Product type: Joint connector
• Material: Steel
• Surface finish: Strip galvanized
• Compatible tray side height: 60 mm
• Length: 210 mm
• Width: 64 mm
• Height: 20 mm
• Mounting type: Screw connection
• Adjustable angle: Yes
• Standard: DIN EN 61537
• Colour: Metallic (galvanized)
• Environmental suitability: Indoor use
• Pieces per unit: 1

Final note

A reliable joint connector for mesh cable tray systems, offering on-site angle adjustment and durable strip galvanized protection.
