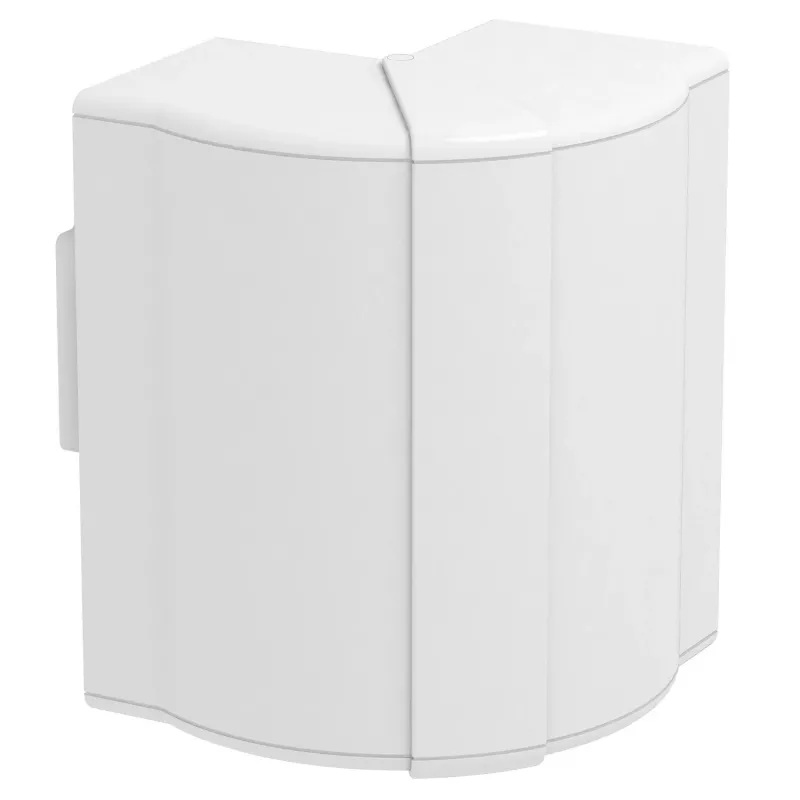

OBO Bettermann GK-AH70170RW Angolo esterno 70x170 mm bianco puro 6274610

The OBO Bettermann GK-AH70170RW external corner is a 90° bend for the GK cable tray system, sized for 70 mm side height and 170 mm width. It is made from strip-galvanised steel with a powder coating in pure white (RAL 9010), making it suitable for indoor cable routing where a clean, bright finish is required.

Overview

This external corner connects two horizontal GK cable tray sections at a right angle, allowing the tray to turn outward. The clip-on/screw-on mounting method ensures a secure fit without additional brackets. The white powder coating provides a durable, halogen-free surface that blends with modern installations.

What stands out

• 90° external corner for GK cable trays
• Compatible with 70 mm height and 170 mm width trays
• Strip-galvanised steel with pure white powder coating (RAL 9010)
• Clip-on or screw-on mounting
• Halogen-free and RoHS compliant

Technical details

• Product type: External corner
• Compatible system: OBO Bettermann Gitterkanal GK
• Compatible tray height: 70 mm
• Compatible tray width: 170 mm
• Angle: 90°
• Material: Steel
• Surface finish: Strip galvanised and powder-coated
• Colour: Pure White (RAL 9010)
• Mounting method: Clip-on / Screw-on
• Application: Horizontal cable routing
• Halogen-free: Yes
• RoHS compliant: Yes
• UV resistant: No (indoor use)

Our verdict

A precise and durable corner piece for GK cable trays, finished in a clean white that suits indoor environments. It ensures a smooth 90° turn while maintaining the tray's load-bearing integrity.
