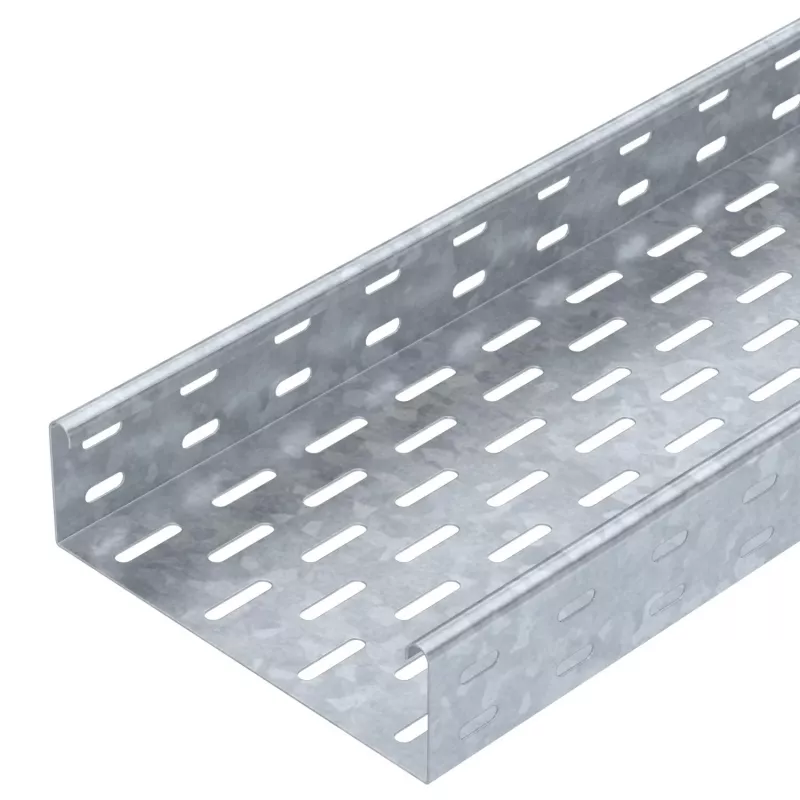

OBO BETTERMANN MKS 620 FT canale portacavi 60x200x3000 mm perforato zincato a caldo 6055575

Electricians and installers routing power or data cables in industrial and commercial buildings rely on the OBO BETTERMANN MKS 620 FT cable tray for a robust, corrosion-resistant pathway. This 3-metre section with perforated base and sides provides ventilation and easy cable fixing.

Key specifications

• Side height: 60 mm
• Width: 200 mm
• Length: 3000 mm
• Material: Steel, hot-dip galvanised (FT)
• Material thickness: 0.75 mm
• Usable cross-section: 120 cm²
• Integrated push-fit connector
• Compliant with DIN EN 61537

Why choose it

The hot-dip galvanised finish provides high corrosion protection for indoor and outdoor use. Perforations allow air circulation and simplify cable management. The integrated push-fit connector speeds up installation without separate couplings.

Ideal use cases

• Industrial cable routing along walls or ceilings
• Commercial buildings with high cable density
• Outdoor installations requiring durable corrosion resistance
• Retrofitting in existing OBO MKS systems

Good to know

Mounting requires appropriate support brackets or hangers, which are not included. Electrical continuity is ensured through the connectors. The tray is part of the OBO Bettermann MKS system for full compatibility.
