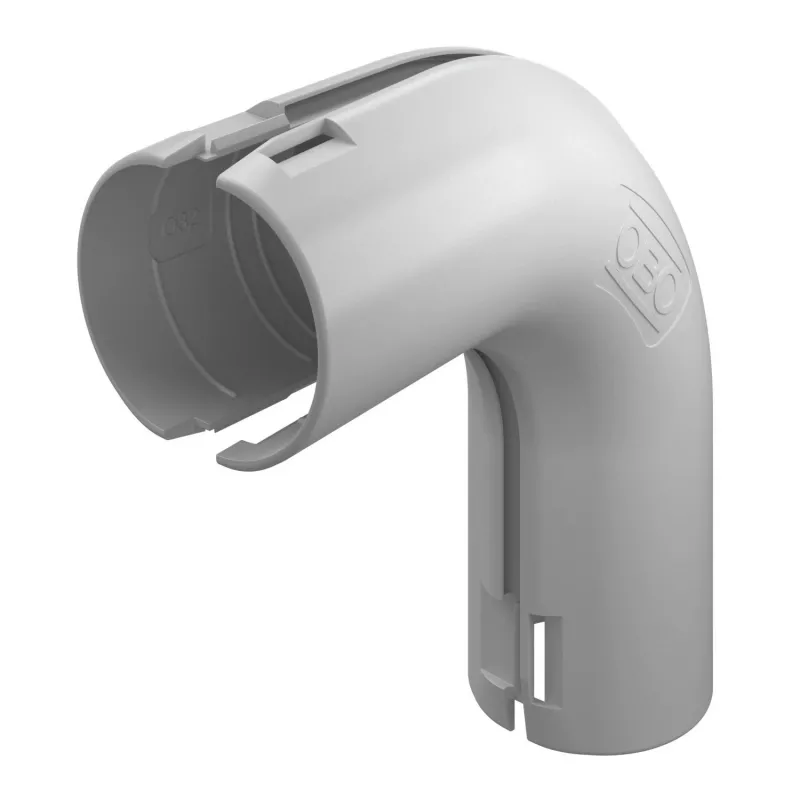

OBO BETTERMANN OBO 3000 BMS M32 LGR Curva Quick-Pipe 90° grigio chiaro 2154058

The OBO 3000 BMS M32 LGR Quick-Pipe Bend 90° in light grey is a rigid conduit fitting engineered for fast, tool-free installation in OBO Quick-Pipe systems. Its plug-in connection and 90° bend angle simplify routing around corners in surface-mounted, flush-mounted, hollow wall, and concrete applications.

Highlights

• Nominal diameter M32 (32 mm) for secure cable routing
• 90° bend for clean directional changes
• Halogen-free polypropylene construction
• UV resistant for outdoor use
• Flame-retardant and self-extinguishing
• Impact resistance IK08
• Compressive strength 750 N (Class 3321)
• Operating temperature range -25 °C to +100 °C
• Installation temperature range -25 °C to +60 °C

In daily use

This bend is part of the OBO Quick-Pipe system, designed for quick and secure connections without additional tools. The light grey colour (RAL 7035) blends well in visible installations, while the halogen-free material supports safer environments in case of fire.

Full specifications

• Nominal diameter: M32 (32 mm)
• Bend angle: 90°
• Material: Polypropylene (PP)
• Colour: Light grey (RAL 7035)
• System compatibility: OBO Quick-Pipe
• Halogen-free: Yes
• UV resistance: Yes
• Protection class: IP67 (when installed correctly)
• Operating temperature range: -25 °C to +100 °C
• Installation temperature range: -25 °C to +60 °C
• Fire behaviour: Flame-retardant, self-extinguishing
• Impact resistance: IK08
• Compressive strength: 750 N (Class 3321)
• Standard: DIN EN 61386-22
• Mounting type: Plug-in connection
• Application: Surface-mounted, flush-mounted, hollow walls, concrete
• Electrical insulation: Yes
• Conduit type: Rigid

Final note

For reliable and efficient conduit installations, the OBO 3000 BMS M32 LGR Quick-Pipe Bend 90° offers the quality and performance expected from OBO BETTERMANN.
