OBO FBS-S+P kit antincendio PYROSIT NG 7203801

Sealing cable and pipe penetrations in solid walls and ceilings is a critical fire safety task. The OBO FBS-S+P Action Pack PYROSIT NG provides a complete solution for creating fire-resistant seals that prevent the spread of fire and smoke through openings in building structures.

Who is it for

This kit is intended for electricians, plumbers, and fire protection professionals who need to seal penetrations in solid walls and ceilings, ensuring compliance with fire safety regulations.

Main features

• Complete kit for sealing cable and pipe penetrations

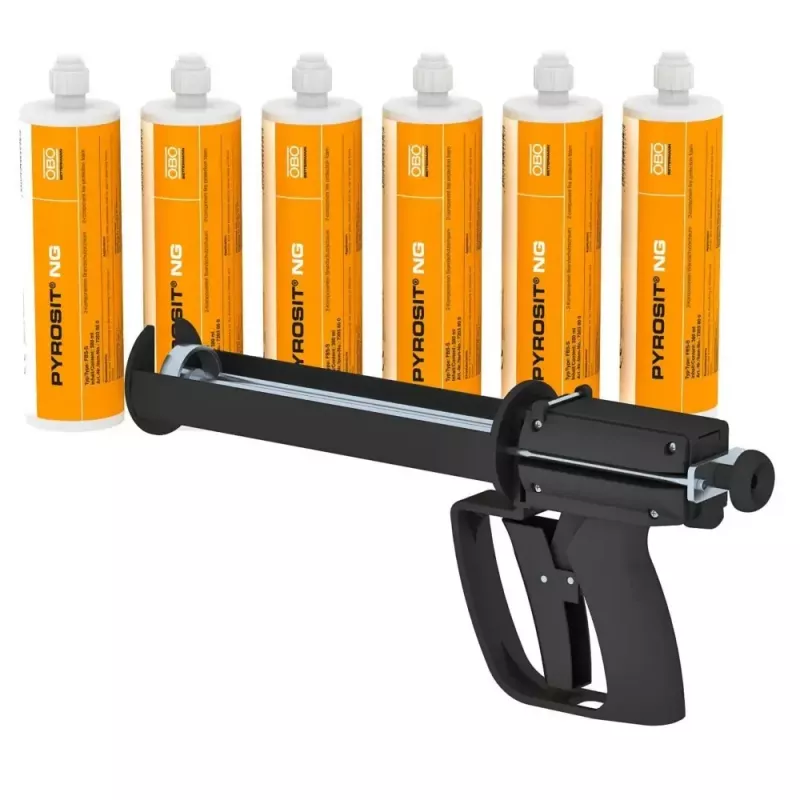

• Includes 2-component polyurethane fire protection foam (380 ml cartridge)
• Includes fire protection filler/putty (310 ml cartridge)
• Includes 2x PYROSIT NG mounting plates made of mineral fiber fire protection board
• Fire resistance class up to EI 90 according to EN 13501-2
• Smoke tight and sound insulating
• DIBt approved

Specifications

• Product type: Fire Protection Kit
• Foam type: 2-component polyurethane fire protection foam
• Foam volume: 380 ml
• Filler type: Fire protection filler/putty
• Filler volume: 310 ml
• Mounting plates: 2x PYROSIT NG, dimensions 250 x 150 x 5 mm
• Mounting plate material: Mineral fiber fire protection board
• Foam color (cured): Reddish-brown
• Initial curing time (foam): approx. 5-10 minutes (tack-free)
• Full curing time (foam): approx. 24 hours
• Temperature resistance (cured foam): -40°C to +80°C
• Density (cured foam): approx. 150 kg/m³
• Fire resistance class: up to EI 90

Tips

Ensure the penetration is clean and free of debris before applying the foam and filler. Follow the installation instructions provided with the kit for optimal fire protection performance.
