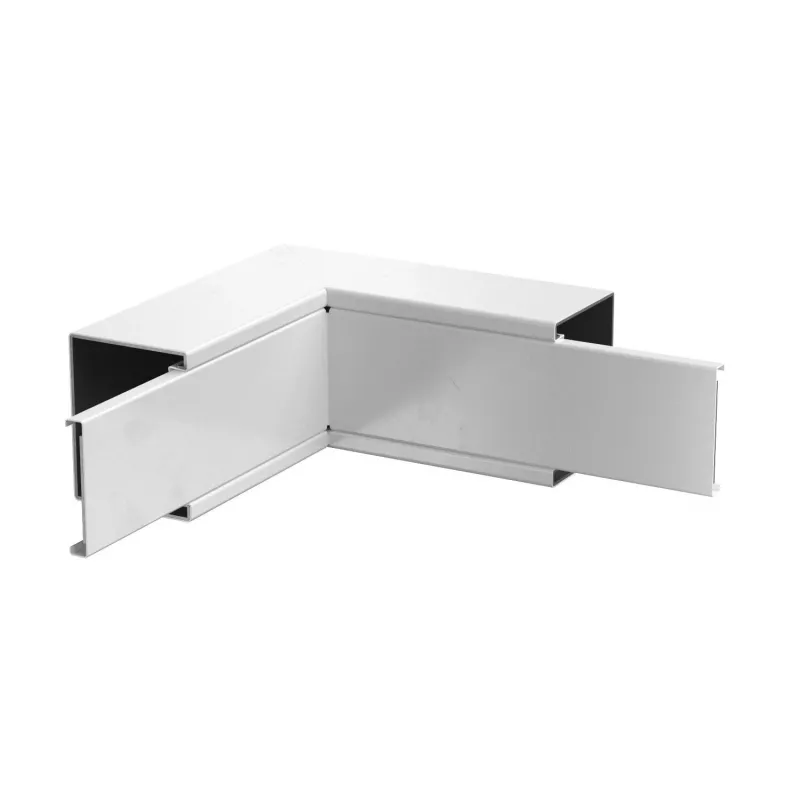

OBO PLM IC 0810 RW angolo interno con tessuto antifuoco 330x100x330

For fire-rated cable routing, the OBO PLM IC 0810 RW internal corner stands out by integrating fire protection fabric directly into the bend, eliminating the need for separate wraps or coatings. This pre-galvanized steel component is engineered for 800 mm wide, 100 mm high PLM cable ladders, providing a precise 90° change of direction while maintaining functional integrity under fire conditions.

Highlights

• Integrated fire protection fabric maintains circuit integrity in the event of fire, removing the need for additional fire-rated tape or coatings.
• Pre-galvanized steel construction offers robust corrosion resistance and long service life in indoor installations.
• Designed specifically for OBO Bettermann PLM cable ladder systems with 800 mm width and 100 mm side height, ensuring perfect fit and alignment.
• 90° angle allows smooth routing of cables around corners without compromising fire protection or mechanical strength.
• Simple screw connection enables fast, secure installation with standard tools, reducing on-site labor time.

In daily use

Installers appreciate how this corner slots directly into the PLM system, matching the ladder profile exactly. The integrated fabric stays in place during handling, so there is no risk of forgetting a fire protection step on site. Once screwed into position, the corner provides a rigid, continuous path for cables, and the galvanized finish resists corrosion in typical indoor environments.

Full specifications

• Product Type: Internal Corner
• System Type: Cable Ladder & Tray System
• Fire Protection Feature: Integrated Fire Protection Fabric
• Material: Steel
• Surface Treatment: Pre-galvanized (Bandverzinkt)
• Compatible Cable Ladder/Tray Width: 800 mm
• Compatible Cable Ladder/Tray Side Height: 100 mm
• Angle: 90°
• Mounting Method: Screw connection
• Series Compatibility: OBO Bettermann PLM
• Application: Fire-rated cable installations, functional integrity in case of fire
• Color: Metallic (Galvanized)
• Standards/Certifications: Meets requirements for fire protection installations
• Number of Pieces: 1

Final note

This internal corner is a reliable choice for maintaining fire protection continuity in PLM cable ladder systems, offering both compliance and ease of installation.
