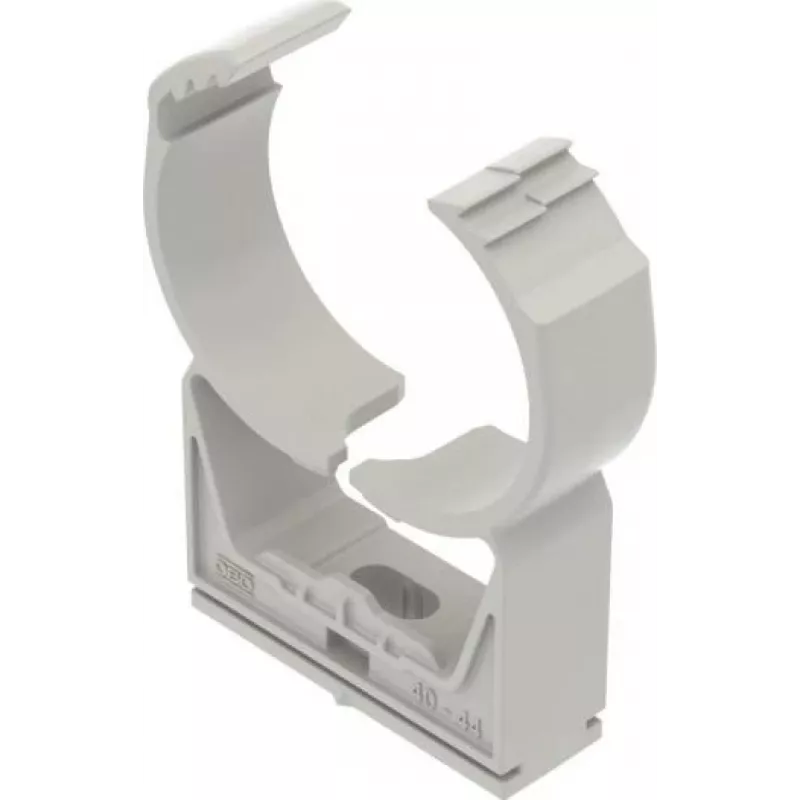

OBO BETTERMANN proQuick PQ-40 LGR morsetto per cavi 39,3-44,5mm grigio chiaro (confezione da 100) 2147320

Loose cables and conduits can create safety hazards and an untidy installation. The OBO BETTERMANN proQuick PQ-40 LGR clamp solves this by providing a secure, single-screw mounting point for cables, pipes, and conduits with diameters from 39.3 to 44.5 mm. Its light grey polyamide body blends into most environments, while the robust design ensures long-term reliability.

Who is it for

Electricians, panel builders, and facility maintenance teams who need a fast, dependable way to organise and fasten medium-sized cables or conduits. Ideal for industrial, commercial, and residential installations where halogen-free and UV-resistant materials are required.

Main features

• Quick and secure single-screw mounting with 6.5 mm hole
• Clamping range 39.3–44.5 mm for versatile use
• Halogen-free polyamide (PA) – safe for people and buildings
• UV-resistant for outdoor applications
• Wide temperature range: -20 °C to +90 °C
• High impact resistance (IK08) and glow wire tested to 850 °C
• Flammability rating UL 94 V-2
• Supplied in a convenient pack of 100 pieces

Specifications

• Brand: OBO BETTERMANN
• Model: PQ-40 LGR
• MPN: 2147320
• EAN: 4012197395988
• Product type: Cable & Conduit Clamp
• Series: proQuick
• Clamping diameter range: 39.3 - 44.5 mm
• Material: Polyamide (PA)
• Colour: Light grey
• Mounting type: Single screw mounting
• Mounting hole diameter: 6.5 mm
• Halogen-free: Yes
• UV resistance: Yes
• Temperature resistance: -20 to +90 °C
• Glow wire test: 850 °C (EN 60695-2-11)
• Impact resistance: IK08
• Flammability rating: UL 94 V-2
• Distance to wall: 10 mm
• Overall width: 19 mm
• Overall height: 50 mm
• Overall depth: 50 mm
• Pack size: 100 pieces

Tips

For best results, pre-drill the mounting hole with a 6.5 mm bit and use a pan-head screw. Ensure the cable or conduit sits fully inside the clamp before tightening to avoid pinching. When installing outdoors, the UV-resistant material will maintain its colour and strength over time.
