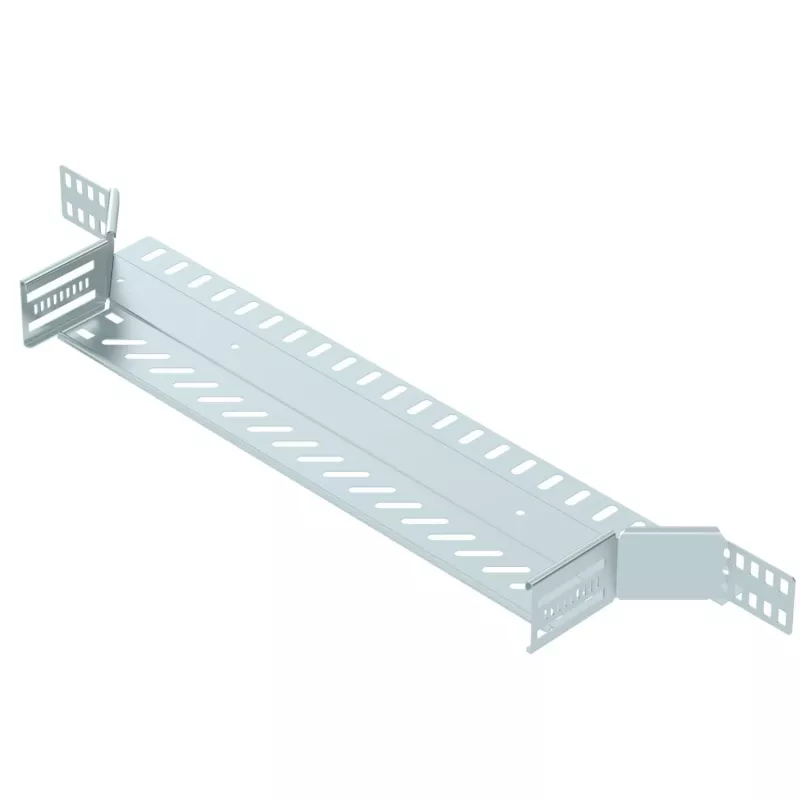

OBO Bettermann RAA 650 FS pezzo di derivazione per canale portacavi 60x500 6042121

Electricians and panel builders routing cable trays in industrial or commercial buildings use the OBO Bettermann RAA 650 FS branch piece to create a 90° horizontal diversion from a main 60 mm high, 500 mm wide cable tray. The hot-dip galvanized steel construction matches the corrosion protection of OBO's RKS, SKS, and IKS tray systems, ensuring a uniform installation.

Key specifications

• Compatible cable tray height: 60 mm
• Compatible cable tray width: 500 mm
• Branching angle: 90°
• Material: Steel, hot-dip galvanized
• Material thickness: 1.25 mm
• Connection: Screw connection (connectors not included)

Why choose it

The RAA 650 FS is a factory-formed branch piece that eliminates field cutting and bending, saving time and ensuring a precise fit. Its hot-dip galvanization provides long-term corrosion resistance, making it suitable for both indoor and sheltered outdoor applications.

Ideal use cases

• Branching cable tray runs at 90° in electrical installations
• Creating T-junctions in cable management systems
• Retrofitting existing OBO cable tray networks

Good to know

This branch piece is designed for use with perforated and non-perforated cable trays of the specified dimensions. It requires separate connectors for assembly, which are available from OBO Bettermann.
