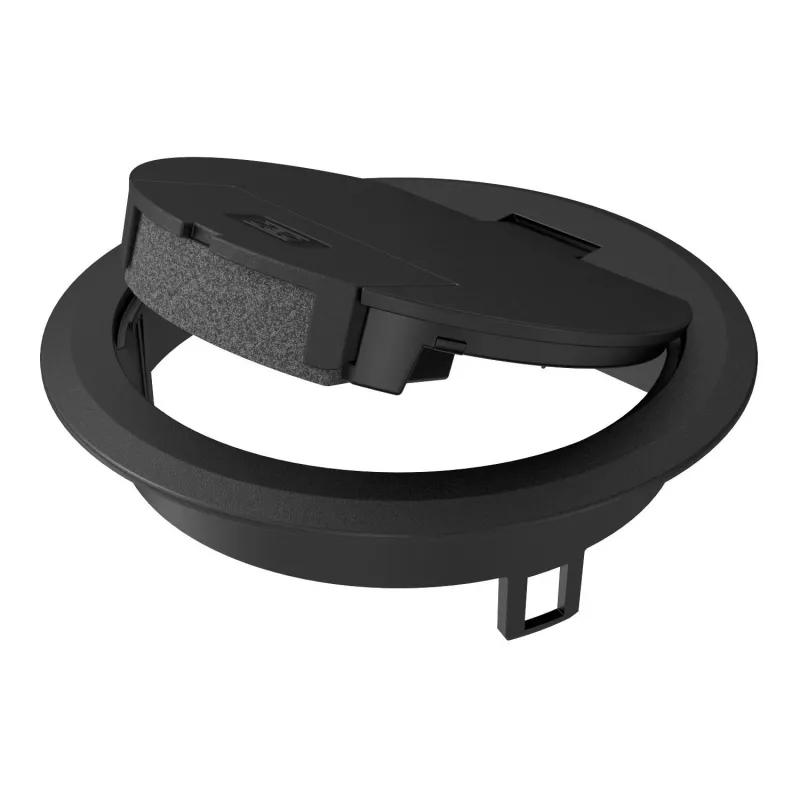

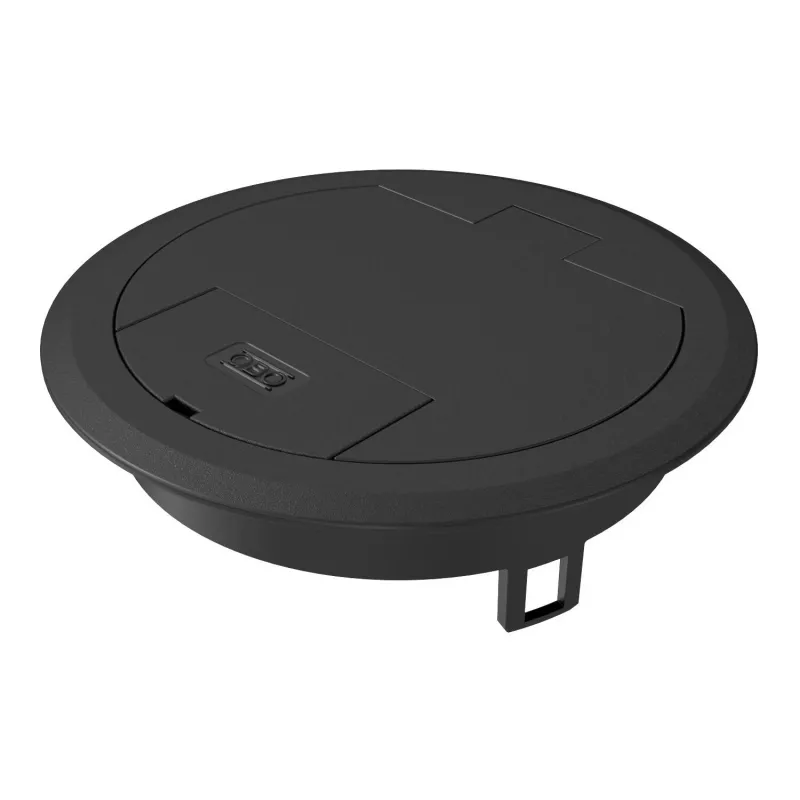

OBO BETTERMANN Sportello passacavi con guarnizione a spazzole GES R2, nero grafite RAL 9011 7405084

For electricians and facility managers installing underfloor power and data access points, the OBO BETTERMANN cable outlet flap provides a neat, protected passage for cables exiting the GES R2 floor box system. The hinged lid opens easily for cable routing and closes to keep dust and debris out of the box when not in use.

Key specifications

• Product type: Cable outlet flap
• Design: Hinged lid
• System compatibility: OBO Bettermann GES R2 floor box system
• Material: Polyamide (PA)
• Colour: Graphite black (RAL 9011)
• Cable management: Integrated brush seal
• Mounting method: Snap-in for device inserts
• Number of cable outlets: 1
• Halogen-free: Yes
• Surface finish: Smooth
• Operating temperature range: -5 °C to +60 °C

Why choose it

The brush seal allows cables to pass through while maintaining a barrier against dust and small particles, keeping the floor box interior clean. The snap-in mounting ensures quick installation without additional tools, and the graphite black finish blends with modern floor coverings.

Ideal use cases

• Underfloor electrical installations in offices and commercial spaces
• Routing power or data cables from floor boxes to desks or equipment
• Retrofitting existing GES R2 floor boxes with a cable outlet solution

Good to know

This accessory is designed specifically for use with OBO Bettermann GES R2 device inserts. It is halogen-free and suitable for indoor environments within the specified temperature range.
