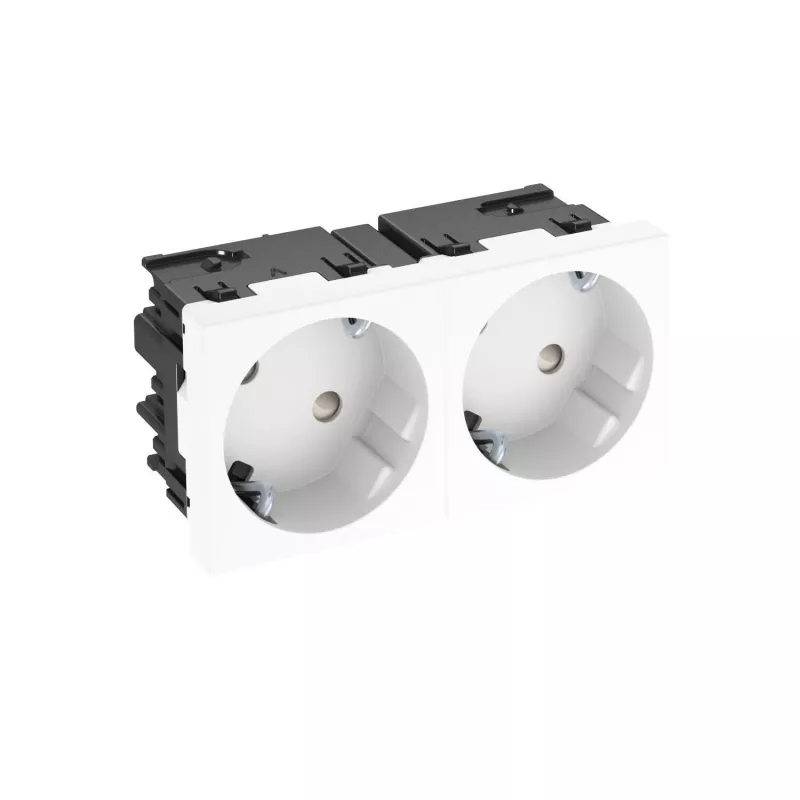

OBO BETTERMANN STD-D3SC RW2 presa 33° 2 vie Schuko Connect 45 6120483

Double Schuko socket outlet with 33° angled sockets for OBO Connect 45 trunking system, rated 250 V / 16 A. The angled orientation simplifies plug insertion in tight spaces. Integrated child protection and halogen-free thermoplastic housing in pure white (RAL 9010) ensure safe, durable use.

Advantages

33° socket angle for easier access, plug-in terminals for quick installation, and integrated child protection. Fits standard OBO Connect 45 mounting frames.

Suitable for

• Device installation in OBO Connect 45 trunking
• Cable duct installation
• Indoor electrical installations

Key specifications

• Socket type: Schuko (Type F)
• Sockets quantity: 2
• Rated voltage: 250 V AC
• Rated current: 16 A
• Mounting system: OBO Connect 45
• Module width: 90 mm
• Module height: 45 mm
• Installation depth: 40 mm
• Connection type: Plug-in terminals
• Material: Thermoplastic (PC/ABS)
• Colour: Pure White (RAL 9010)
• Surface finish: Matt
• Halogen-free: Yes
• Child protection: Integrated
• Protection class (IP): IP20

Recommendations

For use with OBO Connect 45 trunking systems. Ensure proper wiring by a qualified electrician.
