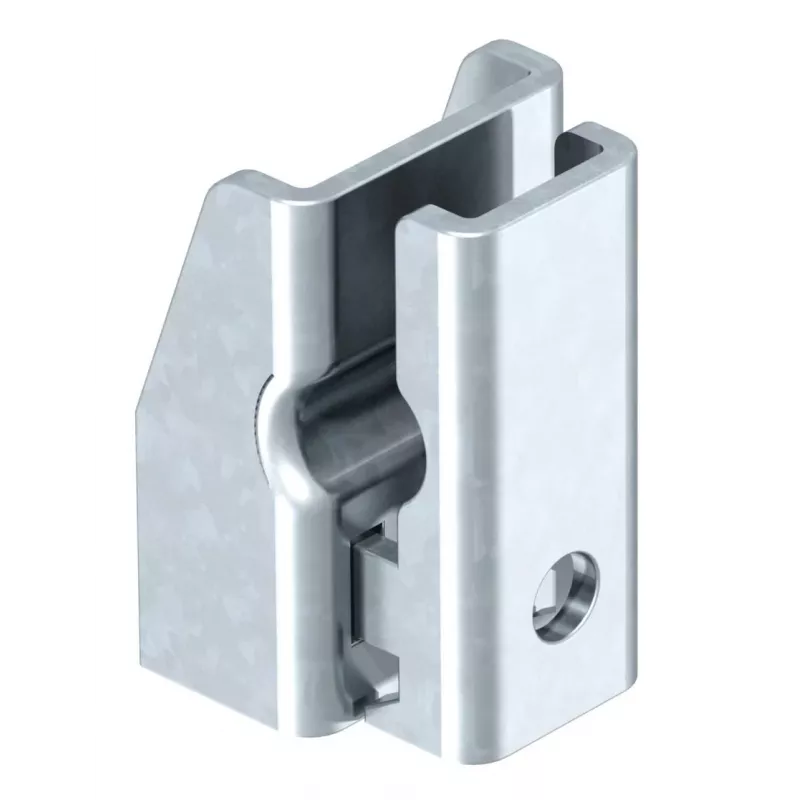

OBO Bettermann supporto verticale per nastro in acciaio 835 supporto per conduttore in acciaio piatto 5033209

Electricians and lightning protection installers use the OBO Bettermann Vertr Bandstahlhalter 835 to secure flat steel conductors on walls and concrete surfaces. This holder keeps lightning protection and earthing conductors at a fixed distance from the mounting surface, ensuring a reliable and safe installation.

Key specifications

• Product type: Flat steel conductor holder
• Material: Steel, hot-dip galvanized
• Max. conductor dimensions: 30 x 3.5 mm
• Mounting type: Surface mounting
• Mounting hole diameter: 10 mm
• Standoff distance: Approx. 30 mm
• Application: Lightning protection and earthing systems
• Corrosion resistance: High
• UV resistance: Yes
• Temperature range: -50°C to +100°C
• Standard compliance: DIN EN 62561-4
• Colour: Metallic grey/silver

Why choose it

The hot-dip galvanized steel construction provides excellent corrosion resistance, making this holder suitable for both indoor and outdoor use. Its design ensures a secure hold for flat steel conductors up to 30 mm wide and 3.5 mm thick, while maintaining the required separation distance from the mounting surface.

Ideal use cases

• Lightning protection systems on buildings
• Earthing installations in industrial facilities
• Outdoor conductor routing on concrete or masonry

Good to know

Installation requires an M10 dowel and screw, which are not included. The holder complies with DIN EN 62561-4 for lightning protection components.
