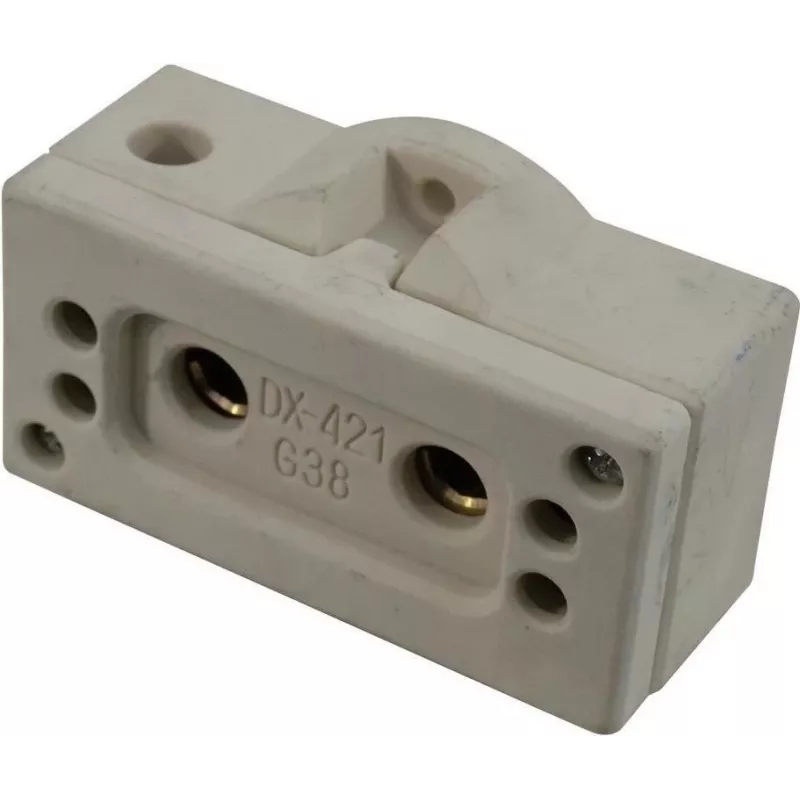

OMNILUX portalampada DX-421 per zoccolo G38 (9450050C)

The OMNILUX Socket DX-421 is a ceramic lampholder engineered specifically for G38-base lamps in professional stage and studio lighting. Unlike generic sockets, its high-temperature porcelain body and screw terminals are built to handle the extreme heat and current of 6000 W HMI and discharge lamps, ensuring reliable power delivery in demanding rigs.

Highlights

• G38 base compatibility for HMI and discharge lamps
• High-temperature ceramic construction withstands up to 250°C
• Robust screw terminals for secure, low-resistance connections
• Rated for 6000 W, 250 V, and 30 A
• Two-hole screw mounting for stable installation

In daily use

This socket is a workhorse for lighting technicians who need dependable lamp retention and electrical contact under continuous high-wattage operation. The white ceramic housing resists thermal stress, while the metal alloy contacts maintain conductivity over repeated lamp changes.

Full specifications

• Lamp base type: G38
• Material: Ceramic (porcelain)
• Connection type: Screw terminals
• Maximum power: 6000 W
• Maximum voltage: 250 V
• Maximum current: 30 A
• Temperature resistance: Up to 250°C
• Mounting: Screw mounting (2 holes)
• Number of poles: 2-pole
• Application: Professional stage and studio lighting
• Compatibility: HMI and discharge lamps with G38 base
• Housing colour: White
• Insulation material: Ceramic
• Contact material: Metal alloy

Final note

For reliable operation in high-temperature lighting fixtures, the OMNILUX DX-421 socket provides the thermal endurance and electrical integrity required by professional productions.
