OMNITRONIC PAS-212 MK4 diffusore top a 2 vie 12" 300W RMS 8 Ohm nero 11039554

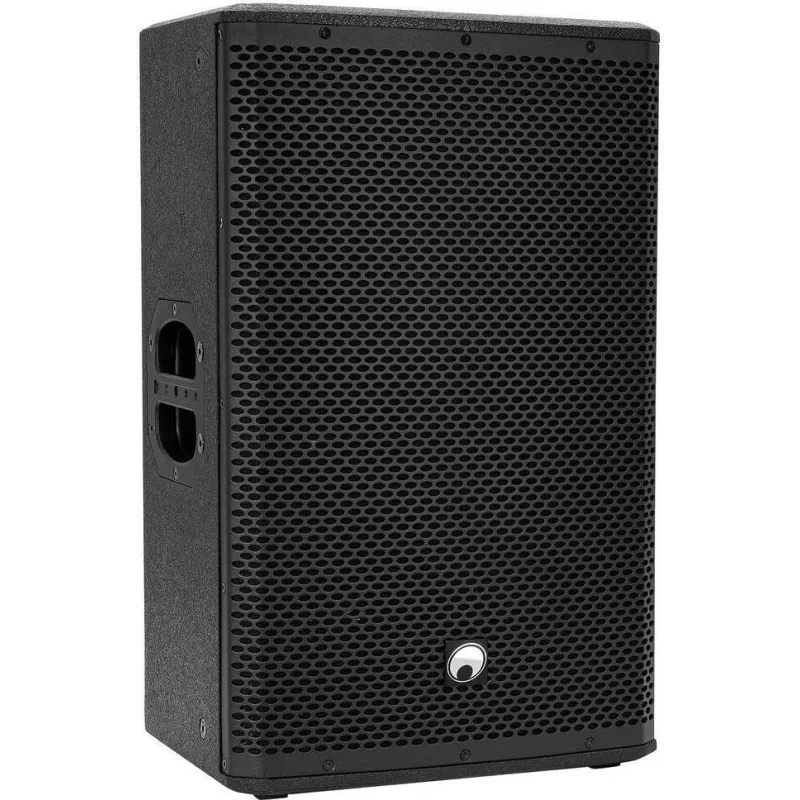

Live sound engineers and mobile DJs rely on the OMNITRONIC PAS-212 MK4 for crisp vocals and punchy mid-bass in clubs, bars, and small to medium venues. This passive 2-way top speaker combines a 12" woofer with a 1.75" compression driver, delivering 300 W RMS power handling and a peak SPL of 124 dB. The 90° x 60° dispersion pattern ensures even coverage across the audience, while the rugged plywood enclosure with scratch-resistant black lacquer and steel grille withstands the rigors of touring and fixed installations. A 35 mm pole mount flange and M8 threaded inserts provide flexible mounting options for stands or flown arrays.

Key specifications

• Passive 2-way PA top speaker
• 12" woofer, 1.75" compression driver
• Power handling: 300 W RMS, 600 W program, 1200 W peak
• Impedance: 8 Ohm
• Frequency response: 50 Hz - 18 kHz
• Sensitivity: 97 dB (1W/1m), Max SPL: 124 dB
• Dispersion: 90° x 60°
• Crossover frequency: 2.5 kHz
• Connectors: 2 x Speakon NL4
• Enclosure: Plywood, scratch-resistant black lacquer, steel grille
• Integrated carrying handles, 35 mm pole mount, M8 flying points
• PTC tweeter protection

Why choose it

The PAS-212 MK4 offers professional-grade sound reinforcement in a compact, road-ready package. Its high sensitivity and robust power handling make it suitable for a wide range of live sound applications, from vocal PA to DJ monitors. The durable plywood cabinet and protective grille ensure long-term reliability, while the versatile mounting options allow for quick setup on stands or permanent installation.

Ideal use cases

• Live music venues and clubs
• Mobile DJ setups
• Corporate events and presentations
• Houses of worship
• Portable PA systems

Good to know

The speaker is passive and requires an external amplifier. Two Speakon NL4 connectors allow for easy daisy-chaining of multiple cabinets. The PTC tweeter protection prevents damage from transient peaks. Weight and dimensions are available upon request.
