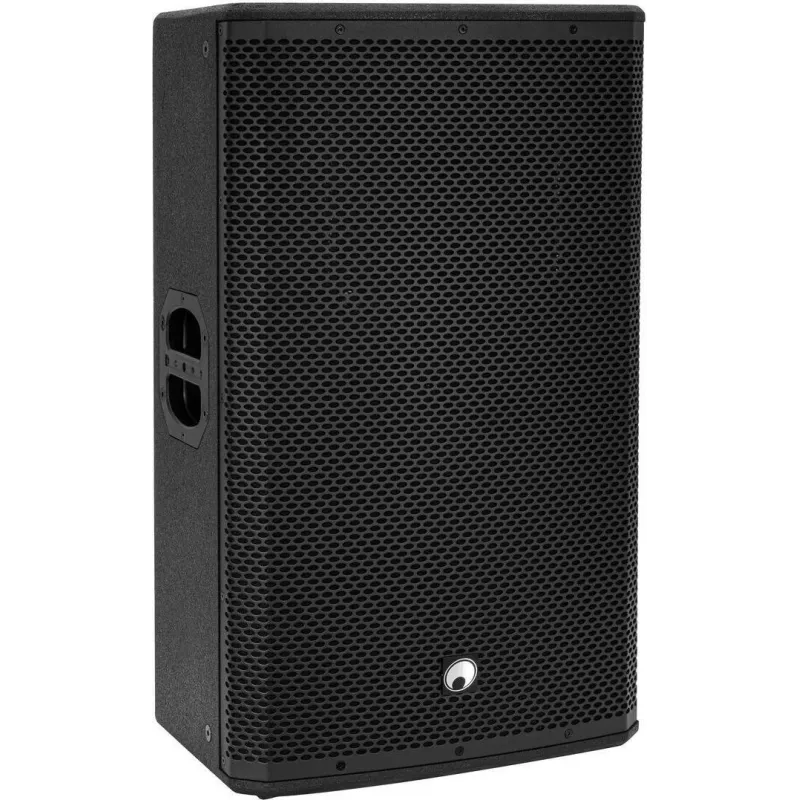

OMNITRONIC PAS-215 MK4 diffusore top a 2 vie 2x15 pollici 700W RMS 4 Ohm nero 11039556

For sound reinforcement that demands serious low-end authority without sacrificing vocal clarity, the OMNITRONIC PAS-215 MK4 stands apart from typical dual-15 tops. Its twin 15-inch woofers deliver a punchy, room-filling bass foundation, while the 3.4-inch compression driver ensures crisp, intelligible highs even at high output levels. Built around a robust plywood enclosure with a rugged black felt cover, this speaker is equally at home on a tripod or stacked for larger setups.

Highlights

• Dual 15" woofers for powerful low-frequency reproduction
• 3.4" compression driver with 90° x 40° horn for wide, controlled dispersion
• 700 W RMS / 1400 W program / 2800 W peak power handling
• High sensitivity of 100 dB (1W/1m) and max SPL of 128 dB
• Plywood cabinet with durable black felt covering and two carry handles
• 35 mm pole flange for easy mounting on speaker stands
• Parallel NL4 connectors for flexible signal routing

In daily use

The PAS-215 MK4 is engineered for DJs, bands, and rental companies who need a full-range top that can keep up with demanding program material. The 4-ohm impedance allows the amplifier to deliver more current, translating to higher acoustic output. With a frequency response extending down to 35 Hz, it can even serve as a full-range speaker for smaller events without a subwoofer, though pairing with subs unlocks its true potential for bass-heavy music. The 90° x 40° horn pattern focuses energy onto the audience and reduces ceiling reflections, improving intelligibility in reverberant spaces.

Full specifications

• Speaker type: 2-way full-range top speaker
• Woofer: 2 x 15" (38 cm)
• Tweeter: 3.4" (8.7 cm) compression driver
• RMS power: 700 W
• Program power: 1400 W
• Peak power: 2800 W
• Impedance: 4 Ohm
• Frequency response: 35 Hz – 18 kHz
• Sensitivity (1W/1m): 100 dB
• Max SPL (peak): 128 dB
• Dispersion (H x V): 90° x 40°
• Crossover frequency: 2.5 kHz
• Connectors: 2 x Speaker (NL4) sockets, parallel
• Enclosure material: Plywood with black felt cover
• Mounting: 35 mm pole flange, 2 x carrying handles

Final note

The PAS-215 MK4 combines high output, robust construction, and versatile mounting options, making it a reliable workhorse for mobile DJs, live sound, and fixed installations where powerful, clear audio is essential.
