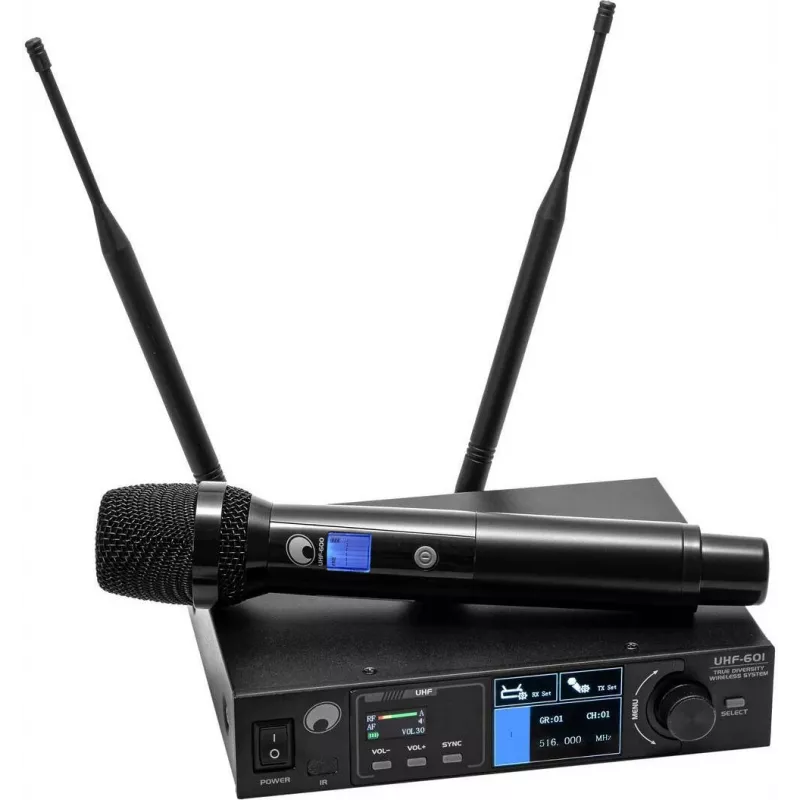

OMNITRONIC UHF-601 sistema microfonico wireless UHF a canale singolo 823-832/863-865 MHz 13063600

Single-channel UHF wireless microphone system delivering reliable, interference-resistant audio transmission across two selectable frequency bands (823-832 MHz and 863-865 MHz). The true diversity receiver with adjustable squelch ensures a stable signal and clear sound for live vocals, presentations, and events.

Advantages

True diversity reception minimizes dropouts, while the wide frequency response (40 Hz – 18 kHz) and high signal-to-noise ratio (>90 dB) capture every nuance. The handheld transmitter runs up to 10 hours on two AA batteries, and the desktop receiver offers both balanced XLR and unbalanced 6.3 mm outputs for flexible connectivity.

Suitable for

• Live stage performances and vocal applications
• Conference rooms, lecture halls, and houses of worship
• Mobile entertainers and DJs needing a dependable wireless link
• Small to medium venues requiring a single wireless microphone channel

Key specifications

• UHF operation: 823-832 MHz and 863-865 MHz
• True diversity receiver with adjustable squelch
• Frequency response: 40 Hz – 18 kHz; S/N ratio >90 dB
• Operating range: up to 30 m line-of-sight
• Receiver power: 12-18 V DC via included AC adapter
• Transmitter power: 2x AA batteries (approx. 8-10 h battery life)
• Audio outputs: 1x XLR balanced, 1x 6.3 mm jack unbalanced
• LED indicators for power, RF, and AF

Recommendations

For optimal performance, position the receiver with clear line of sight to the transmitter and avoid obstacles. Use high-quality AA batteries for maximum transmitter runtime. Connect the balanced XLR output to a mixer for professional audio quality.
