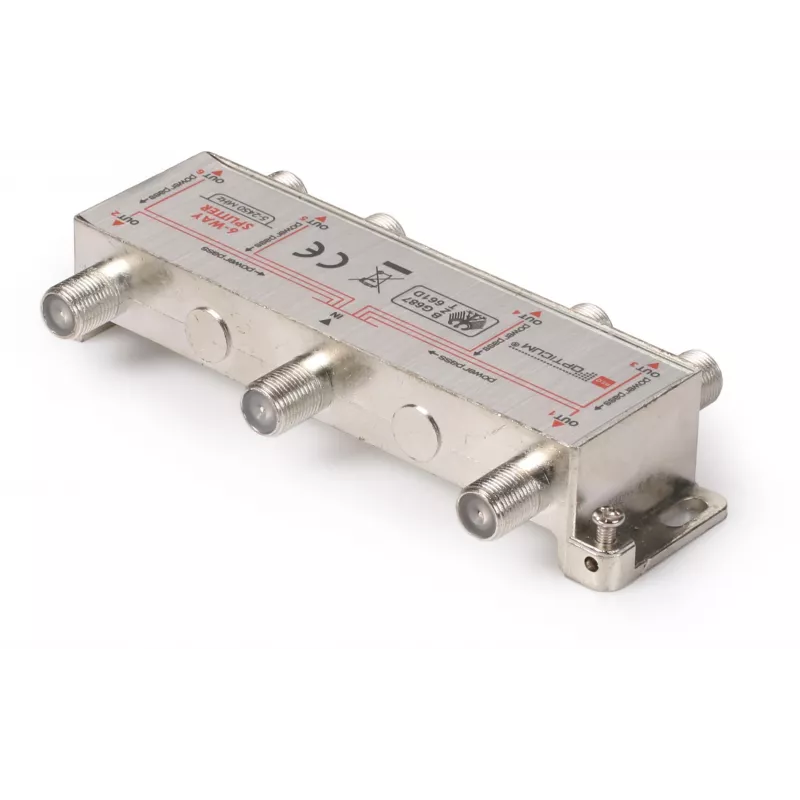

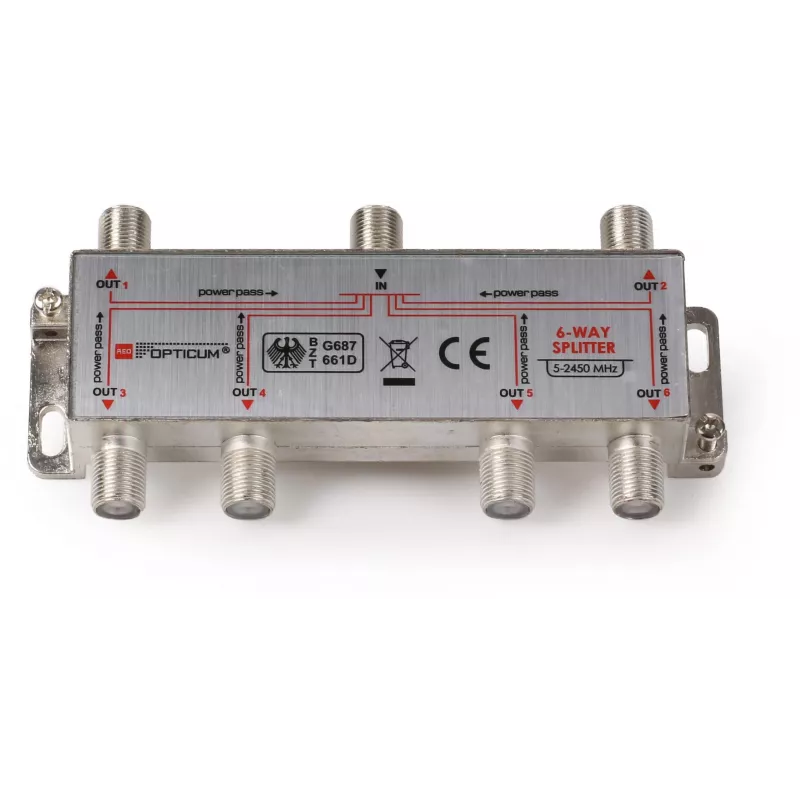

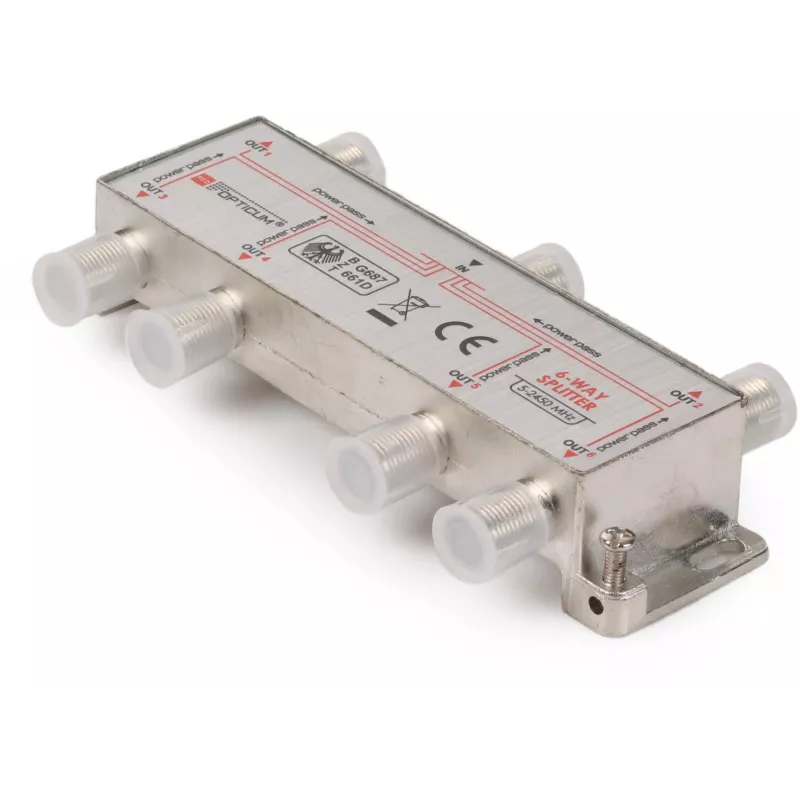

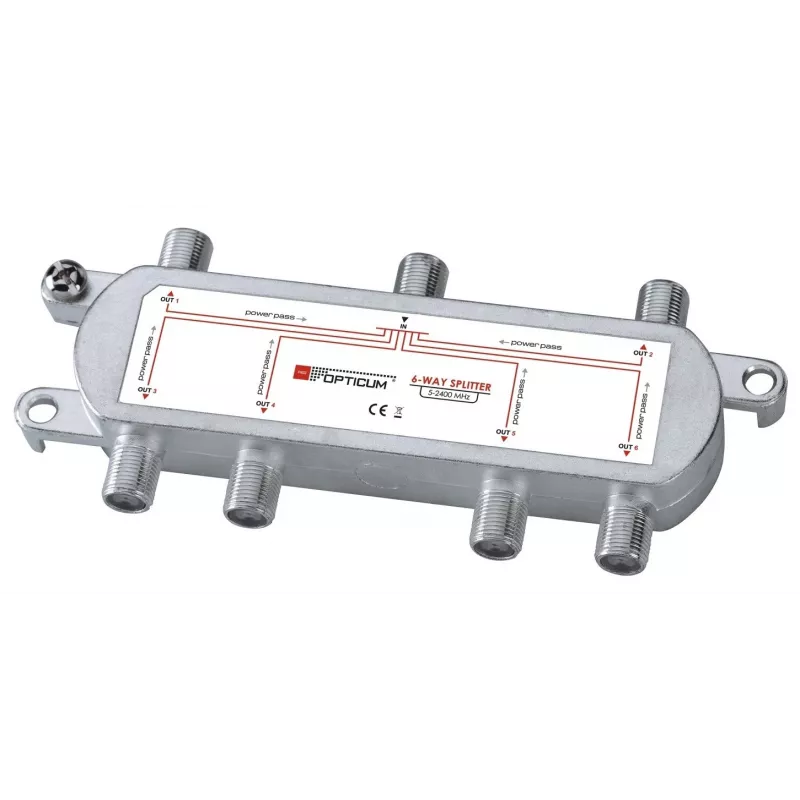

OPTICUM distributore di segnale DVB-T/SAT 1x6 5-2400 MHz

Passive 1x6 signal splitter for distributing DVB-T, DVB-C, SAT, FM, and DAB signals across six outputs. Its wide 5–2400 MHz frequency range and low insertion loss ensure reliable signal distribution to multiple receivers.

Advantages

Built with a nickel-plated zinc alloy housing for durability and high shielding effectiveness (>100 dB) to minimize interference. DC pass-through on one output allows remote powering of an active antenna or LNB. Screw mounting holes enable secure installation.

Suitable for

• Distributing terrestrial TV signals to multiple rooms
• SAT IF distribution in multi-dwelling units
• Combining FM/DAB radio signals
• Home and small commercial installations

Key specifications

• Frequency range: 5–2400 MHz
• Insertion loss: ≤10.5 dB (5–40 MHz), ≤11.0 dB (40–470 MHz), ≤11.5 dB (470–860 MHz), ≤13.0 dB (950–1750 MHz), ≤14.0 dB (1750–2400 MHz)
• Isolation between outputs: ≥20 dB
• Return loss: ≥10 dB
• Impedance: 75 Ohm
• Connectors: F-type female
• DC pass: Yes, one output to input
• Housing: Zinc alloy, nickel-plated

Recommendations

Ideal for installers needing a rugged, high-performance splitter for mixed terrestrial and satellite signal distribution. Pair with quality F-type connectors and RG6 coaxial cable for best results.
