ORNO OR-GB-447 kit radiocomando per luce a 1 canale 433,92 MHz 1000W

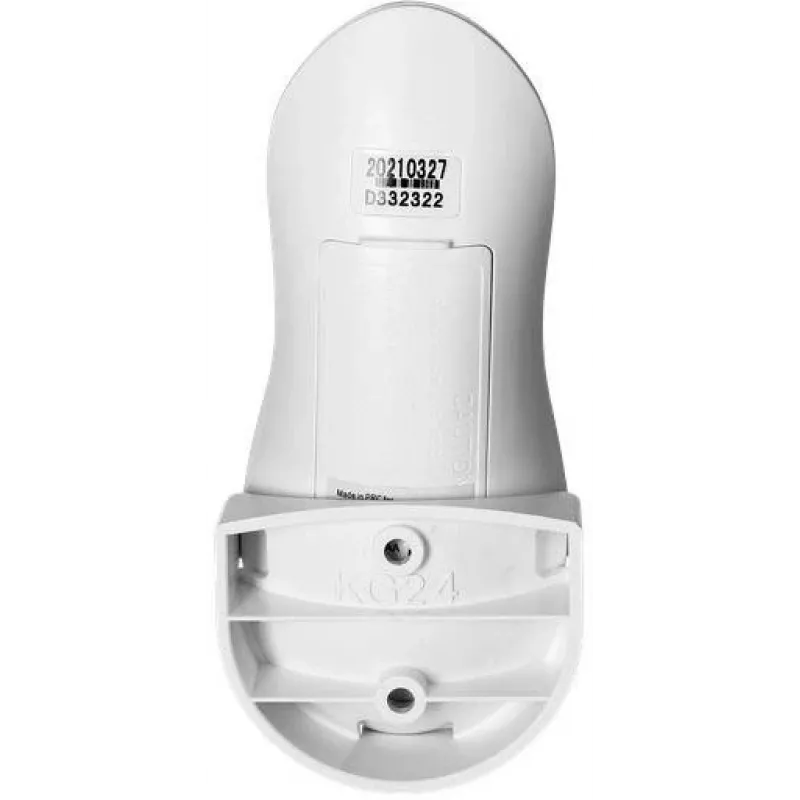

The ORNO OR-GB-447 is a wireless lighting controller set consisting of a 1-channel RF remote control and a receiver. Designed for convenient on/off switching of lighting circuits, it operates at 433.92 MHz with a range of up to 30 meters in open field. The receiver accepts 230V AC input and supports resistive loads up to 1000W, inductive/LED loads up to 300W. Ideal for controlling incandescent, halogen, LED, and fluorescent lamps.

Advantages

Easy installation without wiring between switch and light; surface-mounted receiver fits in junction boxes; reliable RF communication; compact design.

Suitable for

• Residential lighting control
• Small office or retail lighting
• DIY home automation projects

Key specifications

• Control Type: Wireless RF
• Operating Frequency: 433.92 MHz
• Wireless Range: Up to 30m (open field)
• Receiver Input Voltage: 230V AC, 50Hz
• Max Resistive Load: 1000W
• Max Inductive/LED Load: 300W
• Number of Channels: 1
• Control Functions: On/Off
• Remote Control Power Supply: 1 x 12V DC (23A battery)
• Receiver Dimensions (L x W x H): 50 x 25 x 20 mm
• Remote Control Dimensions (L x W x H): 110 x 40 x 15 mm
• Installation Type: Surface-mounted
• Protection Rating: IP20
• Material: Plastic
• Operating Temperature: -20°C to +50°C

Recommendations

For best performance, ensure the remote and receiver are within range and avoid metal obstructions. Use only with compatible lamps and loads.
