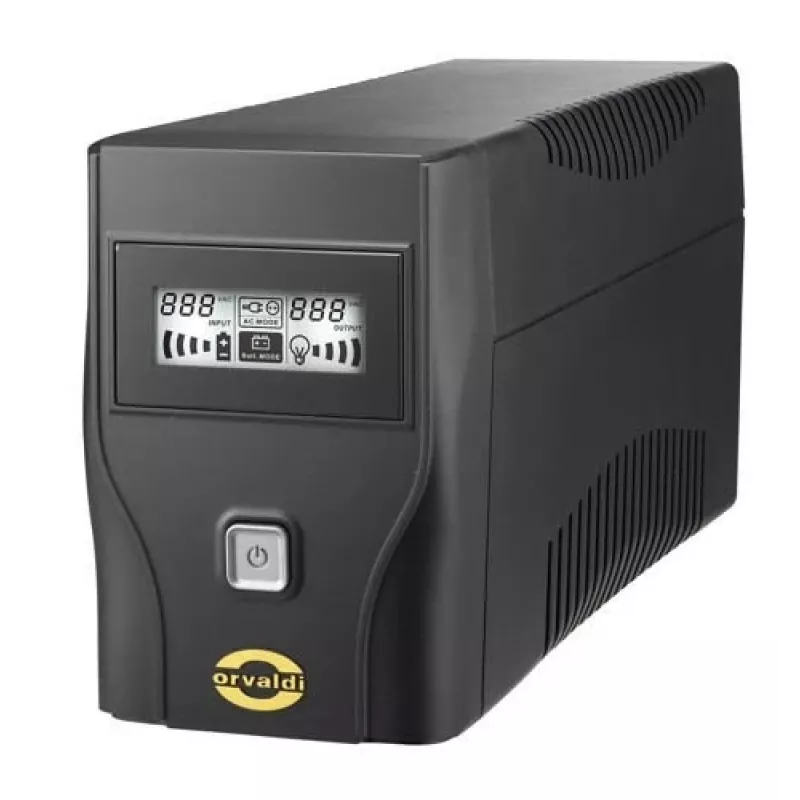

Orvaldi VPS 800 Gruppo di Continuità Line-Interactive 0,8 kVA 480 W 4 Uscite AC

The Orvaldi VPS 800 is a line-interactive uninterruptible power supply (UPS) designed to protect critical electronic equipment such as mini servers, gaming PCs, and computers with active PFC power supplies. With a digitalized PWM-based controller, it delivers a pure sine wave output, ensuring stable and clean power for sensitive devices. This UPS offers a power capacity of 800 VA / 480 W and features 4 Schuko AC outlets, providing reliable backup power during outages and voltage fluctuations.

Advantages

Reliable line-interactive topology with automatic voltage regulation (AVR) ensures consistent output voltage. The pure sine wave output is compatible with active PFC power supplies, preventing system crashes or damage. Compact tower design saves space, and the USB management port allows for easy monitoring and control via software. Fast transfer time (2-6 ms) ensures seamless switch to battery power during blackouts.

Suitable for

• Mini servers and home servers
• Gaming PCs and workstations
• Network equipment (routers, switches, modems)
• Critical data-loaded computers with active PFC power supplies

Key specifications

• UPS Topology: Line-Interactive
• Output Power Capacity: 800 VA / 480 W
• Input Voltage: 220/230/240 V AC
• Output Voltage: 220/230/240 V AC ± 10%
• Input Frequency: 50/60 Hz (Auto-sensing)
• Output Waveform: Simulated Sine Wave

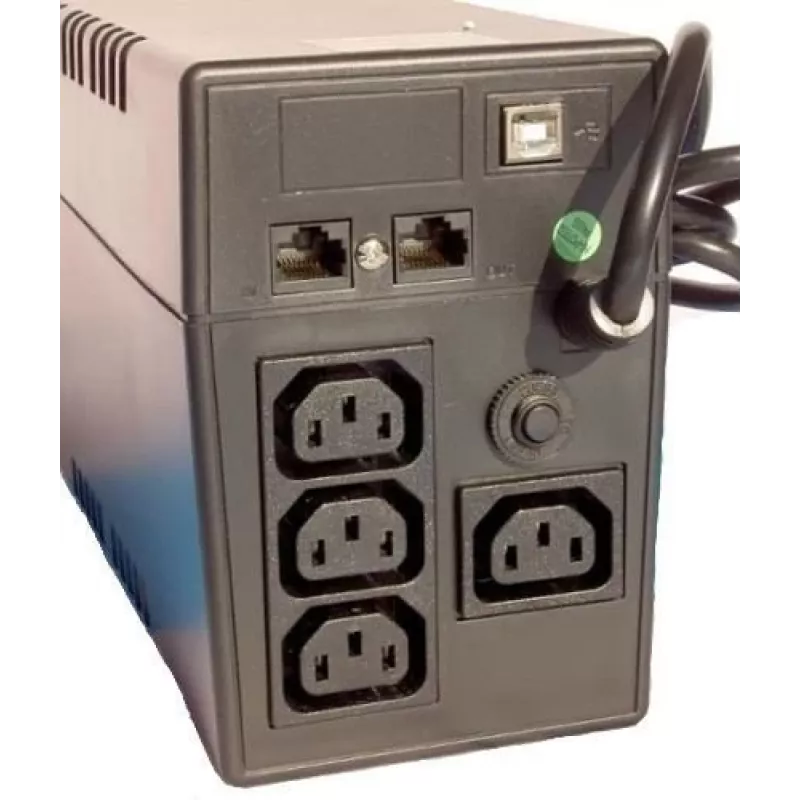

• Number of AC Outlets: 4 (Schuko)
• Transfer Time: 2-6 ms
• Battery Type: Sealed Lead Acid (SLA)
• Battery Capacity: 9 Ah
• Battery Recharge Time: 4-6 hours to 90%
• Management Port: USB Type-B
• Surge Protection: Yes
• Data Line Protection: RJ-11 (Phone/Fax)
• Audible Alarms: Yes (Battery mode, Low battery, Overload, Fault)
• Noise Level: <40 dB
• Operating Temperature: 0 - 40 °C
• Relative Humidity: 0 - 90% (non-condensing)
• Dimensions (WxDxH): 10 cm x 32.8 cm x 14.5 cm
• Weight: 6 kg

Recommendations

For optimal performance, connect only critical devices to the UPS and avoid overloading. Regularly test the battery and replace it every 2-3 years. Use the included USB cable and management software to monitor power events and battery status.
