Outletbox METZ CONNECT 1308895021-I bianco 79,8x50x54 mm

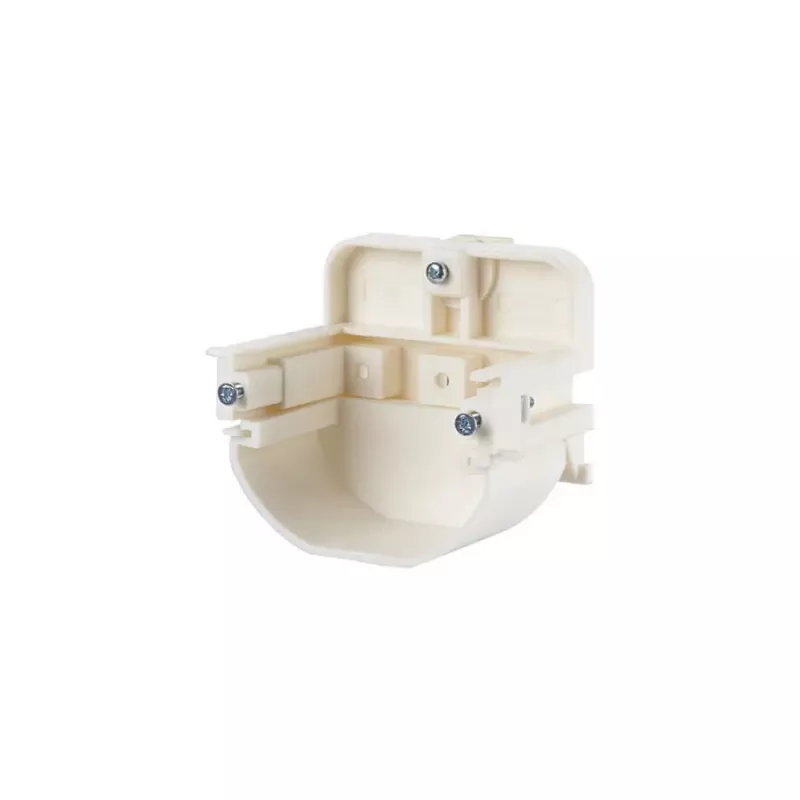

The METZ CONNECT 1308895021-I outlet box is a compact white mounting bracket designed for installing wall outlets in wall conduits while maintaining the required minimum bending radii for copper and fiber-optic data cables. It is intended to isolate low-voltage data and signal cables from mains-voltage parts when used with the plug-in separation cup option. The product is compatible with several common cable duct systems and is available in multiple mounting-height variants.

Advantages

The bracket provides easy and compact installation of wall outlets inside conduits and supports correct cable routing to meet bending radius requirements. Versions with a plug-in separation cup offer electrical isolation between data cables and mains-voltage components. Multiple mounting-height options and adapter compatibility increase flexibility for different duct systems.

Suitable for

• Installation of communication and power outlets in wall conduits
• Maintaining bending radii for copper and fiber optic data cables
• Separating low-voltage data wiring from mains-voltage parts (with separation cup)
• Use with Niedax, Nowaplast and Rehau (Signo series) cable ducts
• Use with Licatec, PROTEC, GGK and Thorsmann Inka series cable ducts (with adapters TTI-N70 or N215)

Key specifications

• Model: METZ CONNECT 1308895021-I
• Colour: White
• Outer dimensions: 79.8 x 50 x 54 mm (W x H x D)
• Available mounting heights: 50 mm, 52 mm, 55 mm (variants include versions with and without plug-in separation cup)
• Compatibility: Niedax, Nowaplast, Rehau (Signo) ducts — mounting height 52 mm; Licatec, PROTEC, GGK, Thorsmann Inka — mounting heights 50 and 55 mm with adapters TTI-N70 or N215
• Brand: MetzConnect
• MPN: 1308895021-I
• EAN: 4250184105152

How to use

Position the outlet box inside the selected wall conduit at the appropriate mounting height for the duct system. If electrical isolation between data and mains wiring is required, insert the plug-in separation cup into the bracket variant that includes this feature. Secure the bracket according to the conduit manufacturer’s instructions and route cables ensuring compliance with the required bending radii for copper and fibre-optic cables. Use compatible adapters (TTI-N70 or N215) when installing in Licatec, PROTEC, GGK or Thorsmann Inka ducts to achieve the correct mounting height.

Recommendations

Check the conduit manufacturer’s installation guidelines and local electrical regulations before installation. Choose the mounting-height variant and use the separation cup if isolation from mains-voltage parts is necessary. Use the specified adapters for non-matching duct profiles to ensure secure and compliant mounting.
