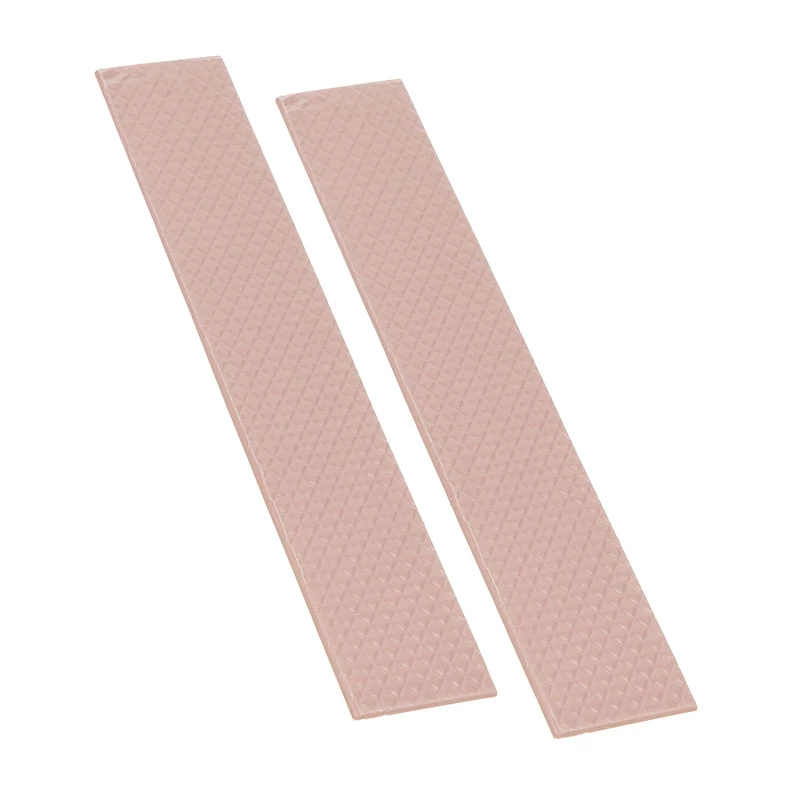

Pad termico Thermal Grizzly Minus Pad 8

The Thermal Grizzly Minus Pad 8 is a high-performance thermal pad designed to provide efficient and reliable heat transfer between electronic components. Measuring 120 mm x 20 mm x 0.5 mm, the pad is made from an elastic, flexible ceramic-silicon based compound with nano aluminium oxide to ensure consistently high thermal conductivity and to compensate for small gaps between surfaces. It is available in red and brown and is RoHS-compliant.

Advantages

The Minus Pad 8 combines high thermal conductivity with soft elasticity, allowing it to conform to uneven surfaces and fill microscopic gaps. Its flexible composition makes it easy to place and ensures stable heat transfer over time. The material formulation provides a balance of thermal performance and mechanical compliance while meeting environmental standards.

Suitable for

• Thermal interface between CPUs and heatsinks in compact systems
• GPU cooling solutions and memory modules
• Power management chips, MOSFETs and other PCB-mounted components
• Small electronics where thin, conformable pads are required

Key specifications

• Dimensions: 120 mm x 20 mm x 0.5 mm
• Material: ceramic-silicon based compound with nano aluminium oxide
• Thermal conductivity: high (manufacturer grade high-performance pad)
• Colours: Red, Brown
• Compliance: RoHS
• Brand / MPN / EAN: thermal grizzly / TG-MP8-120-20-05-2R / 0753677507401

How to use

Clean both mating surfaces to remove dust, old thermal material, and grease. Cut the pad to the required size if necessary and peel off any protective liners. Place the pad so it covers the contact area, then assemble the components and apply gentle, even pressure to ensure the pad conforms to the surfaces. Avoid overstretching or compressing beyond the recommended thickness to maintain thermal performance.

Recommendations

For optimal results use the Thermal Grizzly Minus Pad 8 in applications with small gaps or uneven contact surfaces. Replace the pad if it shows significant wear, contamination, or compression beyond recovery. Store unused pieces in a clean, dry environment away from direct sunlight.
