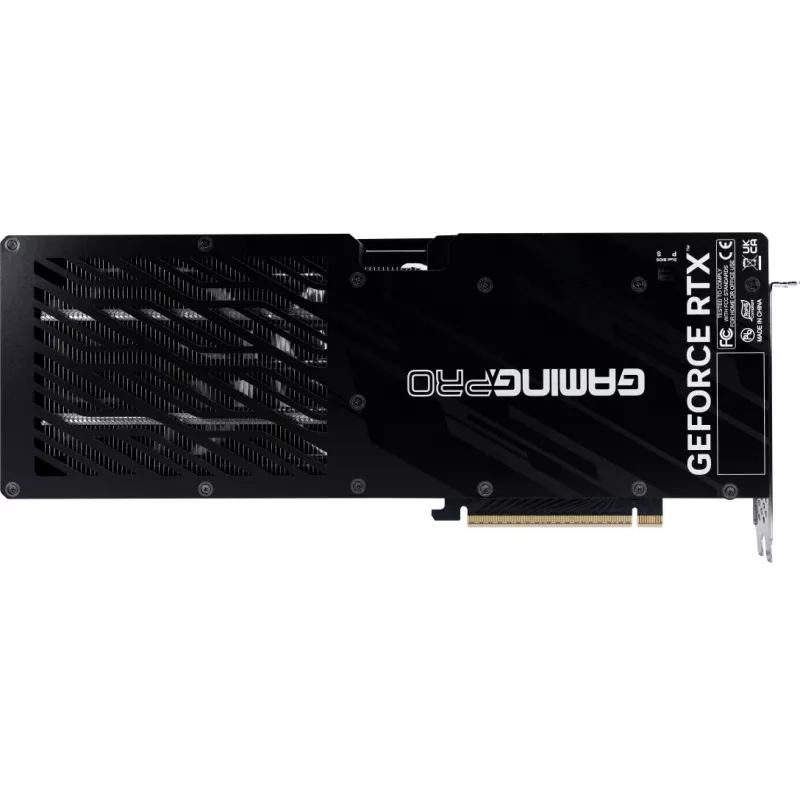

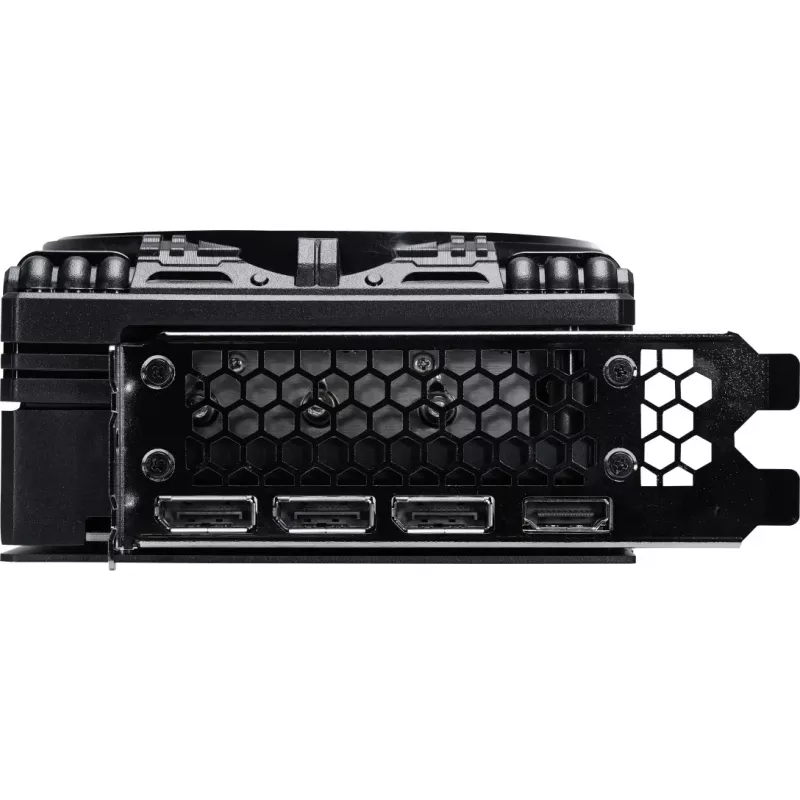

Scheda grafica NVIDIA GeForce RTX 5080 16 GB GDDR7

Palit GamingPro combines a streamlined industrial design with high-performance components to deliver reliable GPU operation. The card features ARGB accents, TurboFan 4.0, Air Deflector, Composite Heat Pipes and a die-casting full-cover frame for improved cooling and structural protection. Powered by NVIDIA Blackwell and GeForce RTX™ 50 Series technologies, it supports full ray tracing, advanced AI features such as DLSS 4 and Reflex 2, and Studio and broadcast tools for creators.

Advantages

TurboFan 4.0 and the 30° fin angle optimize airflow for improved thermal efficiency and reduced noise. Composite Heat Pipes with grooved and sintered powder structures increase heat dissipation. Dual BIOS and 0dB technology provide flexible performance profiles and silent idle operation. A universal 5V ARGB connector enables easy lighting synchronization, while a larger die-cast frame and digital PWM increase board durability and stable power delivery. ThunderMaster software allows overclocking, fan control and LED customization.

Key specifications

• Graphics architecture: NVIDIA Blackwell / GeForce RTX™ 50 Series
• Cooling: TurboFan 4.0, Air Deflector, Composite Heat Pipes
• Frame: Full-cover die-casting, rounded corner design
• Lighting: 5V ARGB connector (plug and play)
• Bearings: Dual-ball bearing with IP5X dust resistance
• BIOS modes: Dual BIOS (Performance / Silent)
• Idle behavior: 0dB fans until activation (~60°C or TGP > ~150W)
• Thermal enhancements: 30° fin angle and optimized blade winglets
• Software: Palit ThunderMaster for tuning and monitoring

How to use

Install the graphics card into a compatible PCIe slot, connect the required power cables and plug the 5V ARGB connector to your motherboard header for synchronized lighting. Use the system BIOS or operating system to ensure the GPU is recognized, then install the latest NVIDIA drivers and Palit ThunderMaster to configure BIOS mode, fan curves, RGB effects and overclocking settings. Fans remain off during light workloads and will start automatically when temperature or TGP thresholds are reached.

Recommendations

For best results, keep chassis airflow unobstructed, use the latest GeForce drivers, and select Performance or Silent BIOS according to your cooling and noise preferences. Regularly update ThunderMaster to access the latest tuning and monitoring features.
