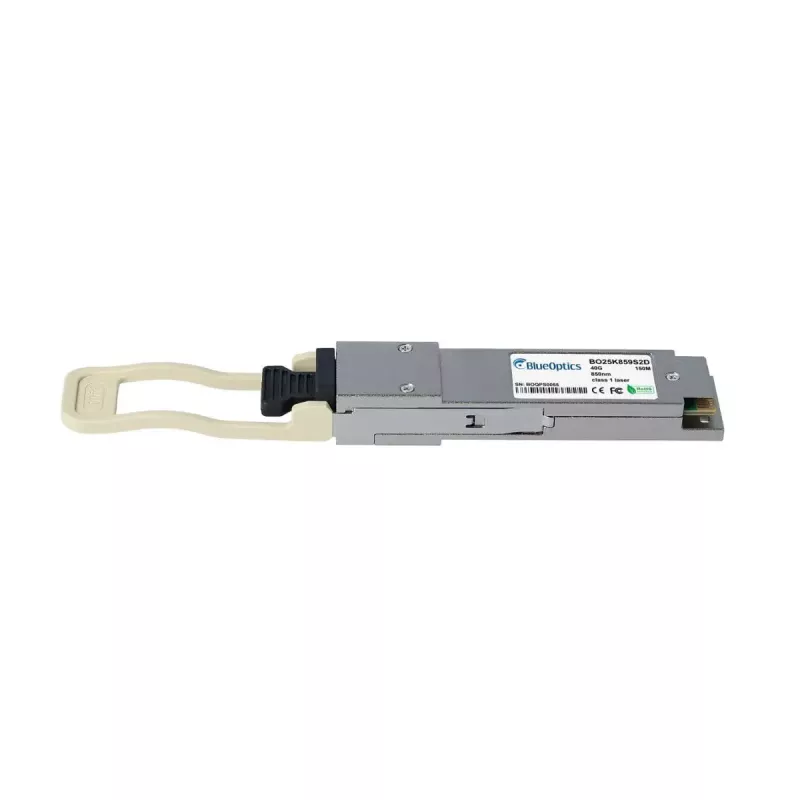

Modulo ricetrasmettitore in fibra ottica BlueOptics AFBR-79EIPZ-BO 40000 Mbit/s QSFP 850 nm

The BlueOptics AFBR-79EIPZ-BO is a fiber optic transceiver module with a QSFP interface designed for high-speed links up to 40000 Mbit/s. It operates at an 850 nm wavelength and is intended for use with multimode fiber and MPO/MTP connections where QSFP modules are supported. The module is lightweight (approx. 20 g) and conforms to common QSFP mechanical and electrical interface expectations for pluggable transceivers.

Advantages

The transceiver supports 40 Gbit/s aggregated throughput over a QSFP form factor and uses an 850 nm optical wavelength suitable for short-reach multimode fiber connections. Compact and lightweight, the module is compatible with systems that accept QSFP pluggable optics and is built to meet Multi-Source Agreement (MSA) interoperability standards. It includes digital diagnostic monitoring capability when used in host hardware that exposes DDM/DOM data, enabling real-time monitoring of operating parameters.

Suitable for

• 40 G Ethernet links in data centers and server rooms
• High-speed interconnects between switches, routers and storage systems
• Short-reach multimode fiber connections using MPO/MTP cabling

Key specifications

• Interface type: QSFP
• Maximum data transfer rate: 40000 Mbit/s (40 Gbit/s)
• Wavelength: 850 nm
• Fiber type: multimode fiber (MPO/MTP connector)
• Form factor: QSFP pluggable transceiver
• Weight: 0.02 kg

How to use

Insert the BlueOptics AFBR-79EIPZ-BO into a compatible QSFP port on a switch, router or other network device that supports QSFP transceivers. Connect the module to the multimode MPO/MTP patch cord and ensure the opposite end is terminated to a compatible transceiver or patch panel. Confirm that the host device firmware or software supports the module and, if required, enable or verify DDM/DOM monitoring in the host to view diagnostic parameters. Follow standard electrostatic discharge (ESD) precautions during handling and avoid touching the optical connector end face.

Recommendations

For optimal link quality, use certified multimode MPO/MTP patch cords and maintain clean connector end faces. Verify compatibility with the target hardware and, where available, test the module in the target system before full deployment.
