Panasonic sensore fotoelettrico EX26APN — serie EX20/EX26, portata 14 mm

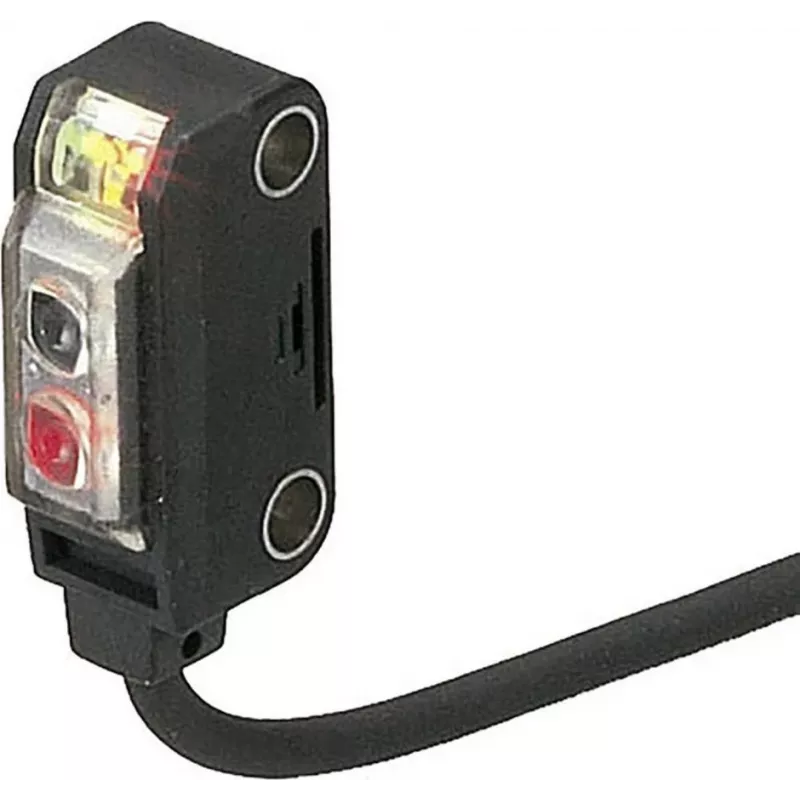

Panasonic EX26APN is a compact photoelectric (light) sensor from the EX20/EX26 series designed for short-range object detection. With a specified detection range of 14 mm, this sensor provides reliable presence and position sensing in automated systems. Its small footprint and straightforward optical detection principle make it suitable for integration into conveyor lines, pick-and-place stations, and tight machine spaces where precise, short-distance sensing is required.

Advantages

The sensor combines a short, fixed detection range and a compact housing to facilitate installation in confined areas. Built to work with standard industrial control systems, it offers stable optical detection with minimal setup. Its form factor supports reliable alignment and mounting while reducing interference with adjacent components. The EX26APN's design emphasizes consistent detection at close range and straightforward wiring for common automation environments.

Suitable for

• Conveyor monitoring for small parts and short-pitch items
• Component detection at pick-and-place or assembly stations
• Position verification in compact machine modules
• Short-range presence sensing where space is limited

Key specifications

• Sensor type: Photoelectric (light) sensor
• Series: EX20/EX26 family
• Detection range: 14 mm (fixed)
• Mounting: Compact housing suitable for close-quarter installation
• Output compatibility: Designed for use with standard industrial control inputs
• Optical principle: Short-range optical beam detection for presence/position sensing

How to use

Mount the EX26APN where the sensing axis aligns with the expected object path, ensuring the target passes within the specified 14 mm detection range. Secure the sensor using appropriate brackets or fixtures that match the compact housing, and route wiring to the control system following local electrical standards. Adjust alignment during commissioning to achieve consistent detection; do not rely on targets outside the fixed detection range. Verify sensor response with representative parts to confirm reliable operation under actual process conditions.

Recommendations

For best results, use the sensor in environments where targets present within the 14 mm range and avoid strong ambient light or reflective surfaces that may cause false readings. Confirm electrical wiring and input compatibility with the machine controller and perform routine checks of alignment and cleanliness to maintain reliable detection.
