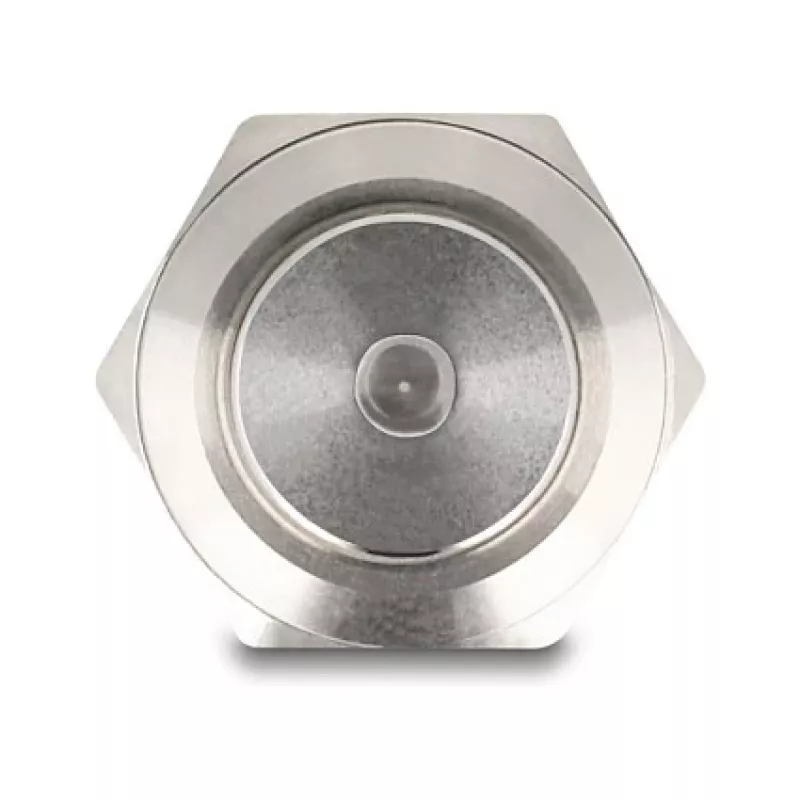

Pannello a pulsanti DeLOCK 20982 argento 230V 3A

The DeLOCK 20982 push-button panel is a compact, silver-coloured control element designed for installation in control panels and switchboards. Made from nickel and stainless steel, it operates at 230 V with a maximum current rating of 3 A and has a compact footprint of 23 mm width and 14 mm depth. The device is suitable for industrial, regulation and consumer applications where a momentary push-button is required.

Advantages

The push button returns to its initial position after actuation, providing reliable momentary switching. Constructed from nickel and stainless steel, the unit offers corrosion resistance and a durable surface finish. Two contact types are available in the device: NO (normally open) for making a circuit when pressed and NC (normally closed) for breaking a circuit when pressed. Its compact dimensions and 230 V / 3 A rating make it suitable for a variety of panel-mounted tasks.

Suitable for

• Industrial control panels and switch cabinets
• Regulation and automation technology
• Doorbell and hallway lighting trigger applications
• Low-power consumer and automotive control circuits (up to 230 V, 3 A)

Key specifications

• Brand: DELOCK
• Model / MPN: 20982
• Colour: Silver (nickel / stainless steel)
• Rated voltage: 230 V
• Rated current: 3 A
• Dimensions: 23 mm (width) × 14 mm (depth)
• Contact types: NO (closer) and NC (opener)
• EAN: 4043619209828

How to use

Mount the push button into a suitable panel cut-out and connect the supply and load according to the wiring requirements of the control circuit, observing the NO and NC contact functions. Ensure connections are rated for 230 V and up to 3 A. After installation, pressing the button closes or opens the associated contact only while depressed; it returns to the rest position when released.

Recommendations

Use the push button within the specified electrical ratings (230 V, 3 A) and in environments appropriate for nickel and stainless steel finishes. For safety and longevity, install in a compatible panel, secure wiring with proper terminals, and perform regular inspections for contact wear or corrosion in demanding environments.
