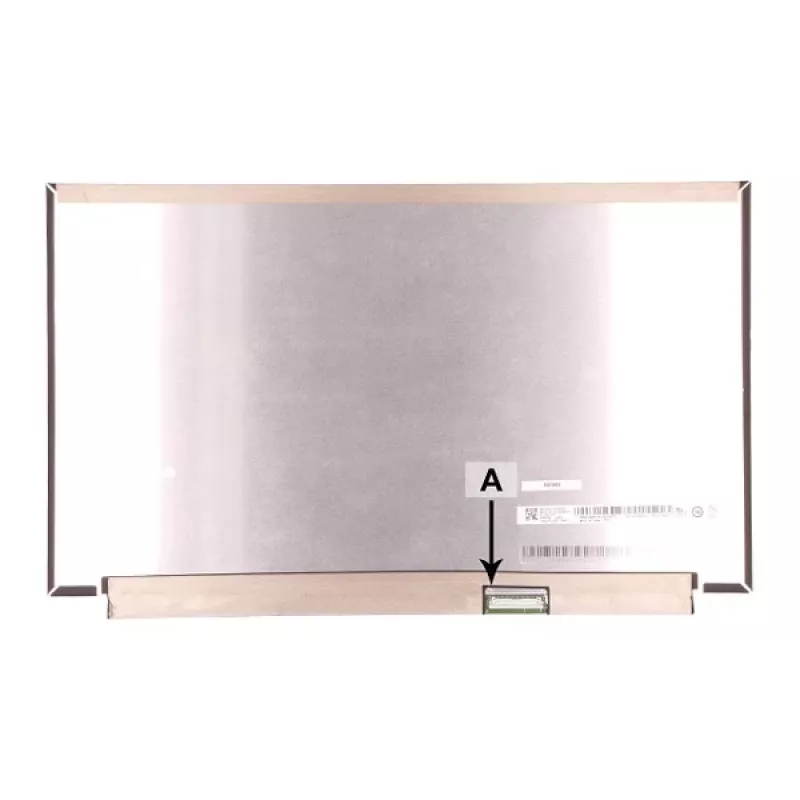

Pannello display LCD CSOT 15,6" UHD IPS 600nit 2-Power

The 2-Power LCD CSOT 15.6" UHD IPS 600nit is a high-performance display panel designed for professional applications requiring exceptional image quality and brightness. Manufactured by CSOT (China Star Optoelectronics Technology), this 15.6-inch panel delivers stunning 3840 x 2160 UHD resolution with vibrant colors and wide viewing angles, making it ideal for use in laptops, medical devices, or industrial equipment.

Advantages

With a brightness of 600 cd/m², this panel ensures clear visibility even in brightly lit environments. The IPS technology provides consistent and accurate colors from virtually any angle, while the 100% sRGB color gamut guarantees vivid and lifelike images. The WLED backlight offers energy efficiency and long lifespan.

Suitable for

• High-end laptops and notebooks
• Medical imaging displays
• Industrial control panels
• Professional graphic design workstations

Key specifications

• Screen Size: 15.6 inches
• Resolution: 3840 x 2160 (UHD)
• Panel Technology: IPS (a-Si TFT-LCD)
• Brightness: 600 cd/m² (nits)
• Refresh Rate: 60 Hz
• Aspect Ratio: 16:9
• Backlight Type: WLED
• Color Gamut: 100% sRGB, 72% NTSC
• Contrast Ratio: 1200:1 (Typ.)
• Viewing Angle (H/V): 85°/85° (L/R), 85°/85° (U/D)
• Response Time: 25 ms (Typ.)
• Display Colors: 16.7 Million (8-bit)
• Surface Finish: Glare (Hard coating 3H)
• Interface Type: eDP (4 Lanes)
• Connector Pins: 40-pin
• Panel Manufacturer: CSOT
• Supply Voltage: 3.3V (Typ.)

Recommendations

This panel is a direct replacement for many laptop models requiring a 15.6" UHD IPS display. Ensure compatibility with your device's eDP connector and mounting brackets before purchase. For optimal performance, handle with care and avoid pressure on the screen surface.
