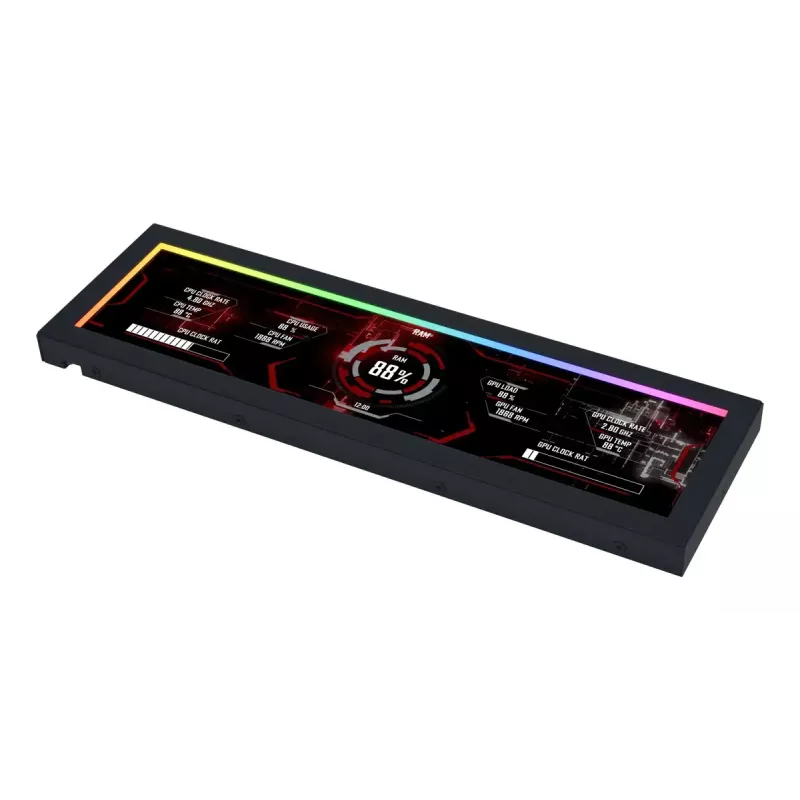

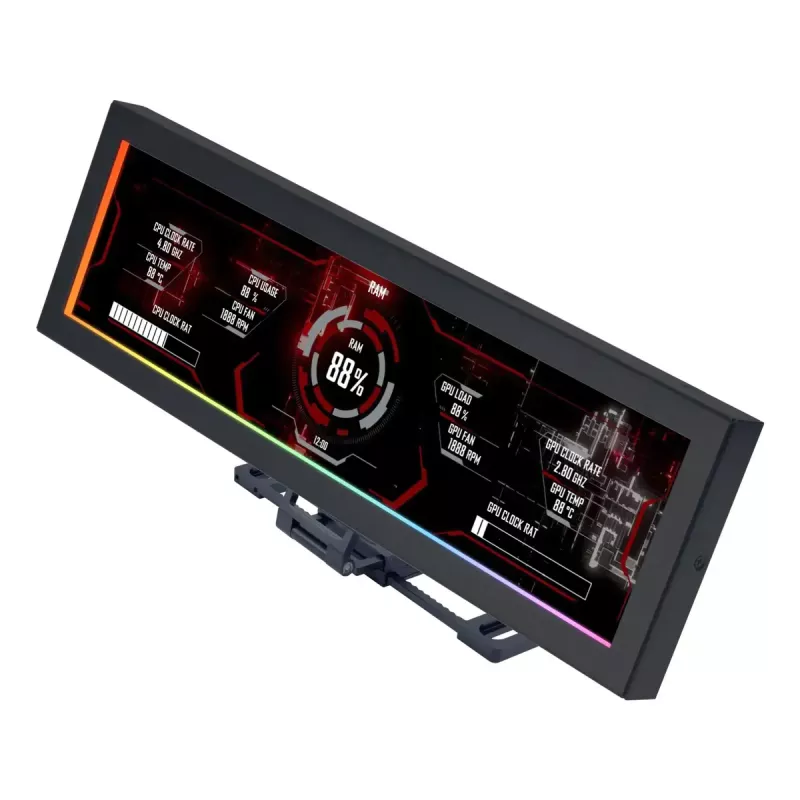

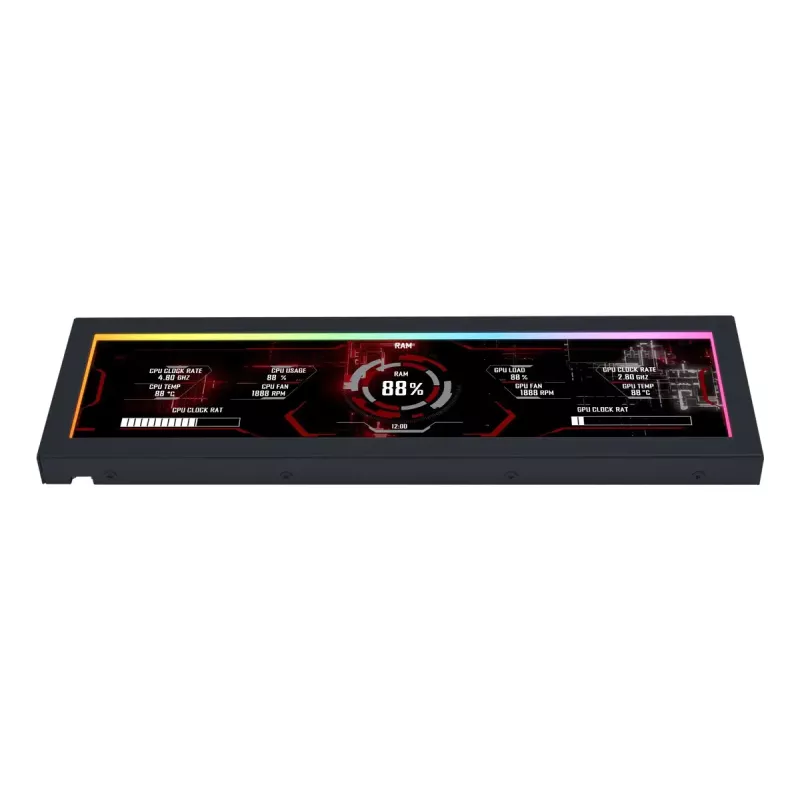

Pannello display Lian Li SM088X, case universale, 237×73×13 mm, 5 V, nero

The Lian Li SM088X Universal Display is an 8.8" IPS LCD designed to integrate cleanly into a wide range of PC builds. With a 1920×480 resolution, 60 Hz refresh rate and 500 nits brightness, the slim display delivers clear visuals for animations, system statistics, images and video. The screen is available in black and white, and its compact 13 mm profile and 237 mm length make it suitable for minimalist and high-performance setups.

Advantages

The display connects via USB and requires no GPU output, allowing it to operate independently from graphics card ports. Multiple mounting options—including 120 mm fan bracket, an adapter for 140 mm mounts, adhesive flat-surface mounting and a sliding rail with hinge for angle adjustment—provide flexible installation inside or outside the case. ARGB edge lighting and full software control through L-Connect 3 enable synchronized lighting and extensive content customization, supporting MP4, GIF, JPG and PNG formats as well as built-in templates and modular widgets. The unit also supports offline clock mode when the PC is off but power remains connected.

Suitable for

• Displaying system information (CPU/GPU metrics, temperatures)
• Showing custom animations, images and videos
• Integrating into minimalist or showcase PC builds
• Use as a secondary USB-powered display for overlays or media

Key specifications

• Screen size: 8.8" IPS LCD
• Resolution: 1920×480 pixels
• Refresh rate: 60 Hz
• Brightness: 500 nits
• Power: USB powered (5 V input)
• Dimensions: 237 mm (length) × 73 mm (depth) × 13 mm (height)

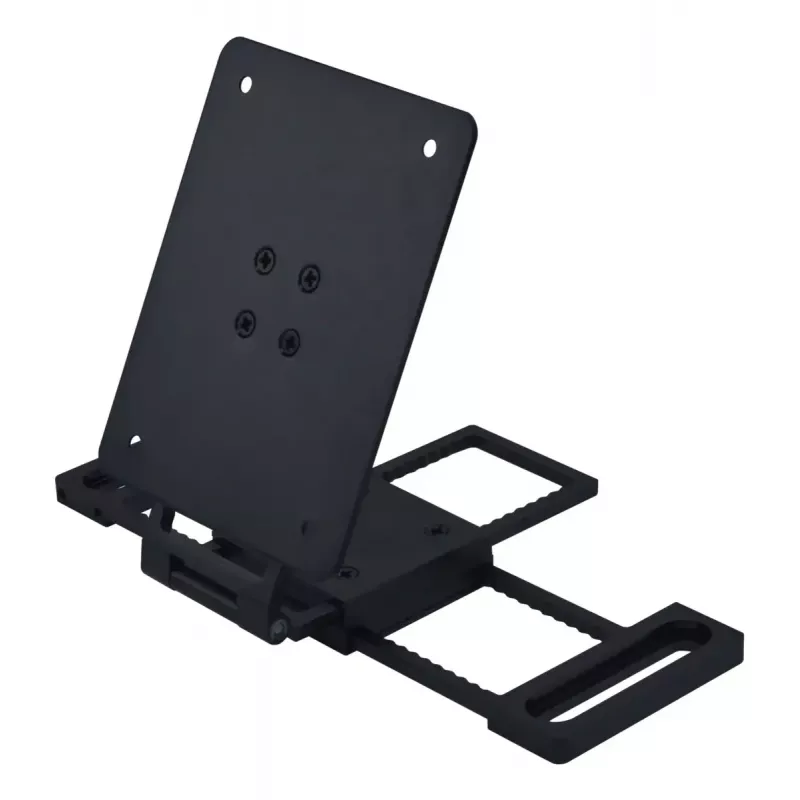

• Mounting: 120 mm fan mount compatible; adapter for 140 mm mounts; adhesive flat-surface support; sliding rail with hinge for angle adjustment
• Orientation: landscape or portrait; multi-screen support
• Lighting: ARGB edge lighting (software controllable)

How to use

Install the display using one of the provided mounting options: attach to a 120 mm fan frame or use the 140 mm adapter bracket, secure with the sliding rail and hinge to set the viewing angle, or apply adhesive to a flat surface for external placement. Connect the display to a motherboard USB 9-pin header or a rear I/O Type-A USB port to power the device. Launch L-Connect 3 to select templates, upload images or videos, arrange widgets and synchronize ARGB lighting. For secondary screen use, enable secondary screen mode in the software to play media or show live data.

Recommendations

For optimal visibility, position the display to minimize direct glare and use the sliding rail to fine-tune the angle. Use a stable USB power source (motherboard header or rear Type-A) and keep L-Connect 3 updated for the latest templates and lighting synchronization features.
