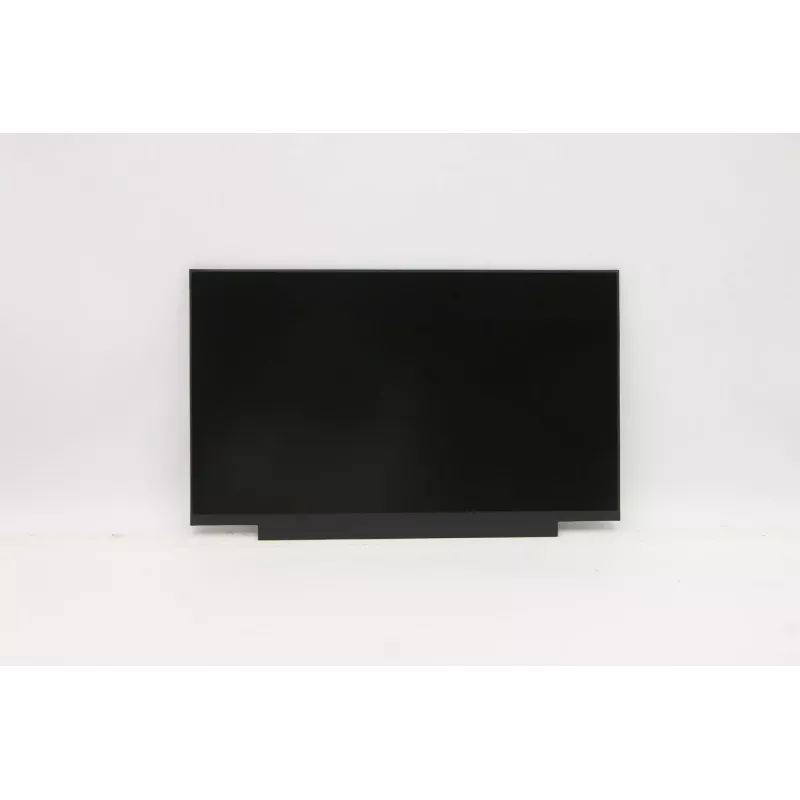

Pannello display per laptop Lenovo 01YN141 LCD HD TN 14,0", schermo sostitutivo HD TN 14,0"

Replacement 14.0-inch HD TN LCD display panel for Lenovo laptops, model 01YN141. This 14.0" HD TN replacement screen delivers standard 1366x768 resolution on a twisted nematic panel that is designed for basic productivity tasks, web browsing and office applications. The panel is intended as a direct replacement to restore visual output and touch-free display performance in compatible Lenovo notebook models.

Advantages

The TN panel offers fast pixel response and straightforward compatibility with many laptop models, providing clear text rendering and acceptable color reproduction for everyday work. The 14.0-inch diagonal and HD resolution balance visibility and power efficiency, while the conventional LCD construction keeps the component affordable and easy to install. The panel is supplied to fit original mounting points and connector types used in supported Lenovo systems, enabling a reliable hardware swap without complex adapters.

Suitable for

• Replacing a damaged or non-functioning laptop screen
• Restoring display output after cracks, dead pixels or backlight failure
• Refurbishing older Lenovo notebooks for office or study use
• Repair shops performing component-level laptop screen replacements

Key specifications

• Screen size: 14.0 inches (diagonal)
• Resolution: HD 1366 × 768 pixels
• Panel type: TN (Twisted Nematic) LCD
• Aspect ratio: 16:9
• Surface: Matte or anti-glare finish
• Backlight: LED
• Connector: 30-pin or standard laptop LVDS/eDP connector depending on compatible models
• Mounting: Standard laptop mounting brackets and screw positions

How to use

Turn off the laptop and disconnect the battery and power supply before beginning any repair. Remove the bezel and unscrew the existing damaged panel following the laptop manufacturer’s disassembly instructions. Detach the display cable carefully from the existing screen and connect it to the replacement panel, ensuring correct orientation and secure seating of the connector. Reposition the new screen into the frame, fasten mounting screws, reattach the bezel and reconnect the battery and power. Power on the laptop and verify image output, backlight function and correct resolution settings in the operating system.

Recommendations

Check the specific Lenovo model compatibility and display connector type before purchase. Handle the LCD surface and connector gently to avoid damage, and use a static-safe workspace while performing the replacement. If unsure, seek professional installation to ensure proper alignment and to avoid warranty or hardware risk.
