Pannello per guida DIN 19" DELOCK 67283 — montaggio orizzontale/verticale per sistemi a guida DIN

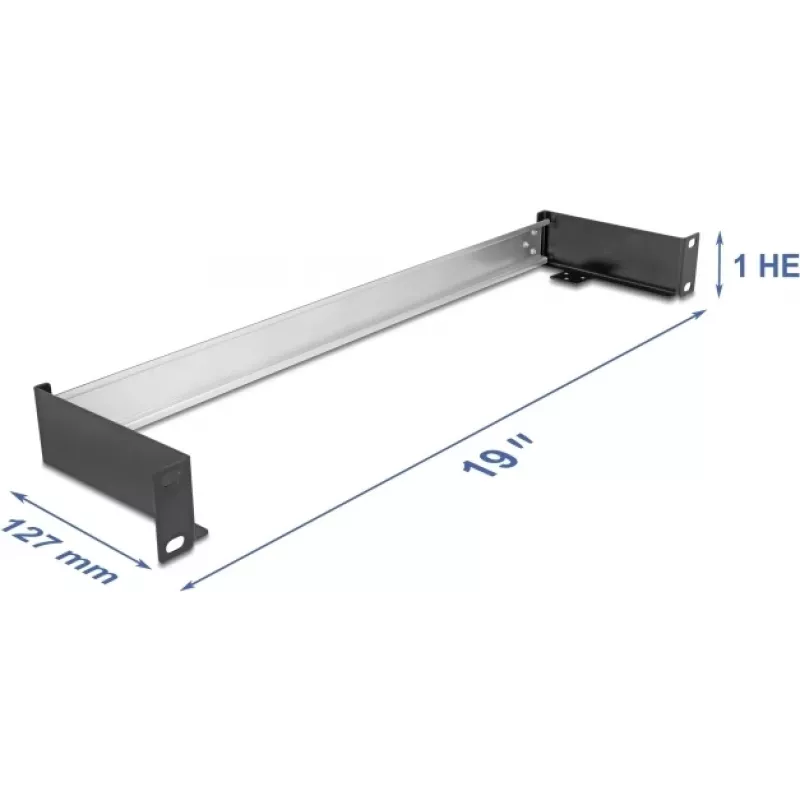

DELOCK 67283 is a 19-inch Hutschienenpanel engineered for mounting on DIN rail systems with the option for horizontal or vertical orientation. The panel creates a standardized 19" rack interface inside control cabinets and network enclosures, allowing integration of modules and devices that require a rack format while maintaining compatibility with DIN rail infrastructure.

Advantages

The panel supports both horizontal and vertical mounting on DIN rails, offering mounting flexibility for different cabinet layouts. Its 19-inch format provides a familiar rack standard for organizing equipment, and the construction is designed to simplify installation and alignment of rack-mounted modules within industrial and IT environments. The design helps create a tidy, modular layout that facilitates maintenance and component replacement.

Suitable for

• Mounting 19-inch modules and devices inside control cabinets
• Network enclosures where DIN rail mounting is required
• Industrial automation panels and controller racks
• Telecommunications or server closet applications with limited space

Key specifications

• Form factor: 19-inch rack compatible panel
• Mounting options: supports horizontal and vertical installation on DIN rail systems
• Compatibility: designed to interface 19" devices with DIN rail infrastructure
• Typical installation environment: control cabinets, network enclosures, industrial racks

How to use

Place the panel on the DIN rail in the desired orientation (horizontal or vertical) and secure it according to the cabinet and rail manufacturer's instructions. Attach 19-inch compatible modules or devices to the panel using the appropriate mounting hardware. Ensure alignment and spacing of installed components to allow proper cable routing and ventilation. Verify that all fastenings are tight and that the overall assembly does not interfere with other cabinet elements.

Recommendations

For reliable operation, select the mounting orientation that best matches cabinet space and airflow requirements. Confirm load capacity and clearances of the DIN rail and cabinet before installing multiple or heavy devices. Use correct grounding and follow local safety and electrical standards when integrating powered equipment.
