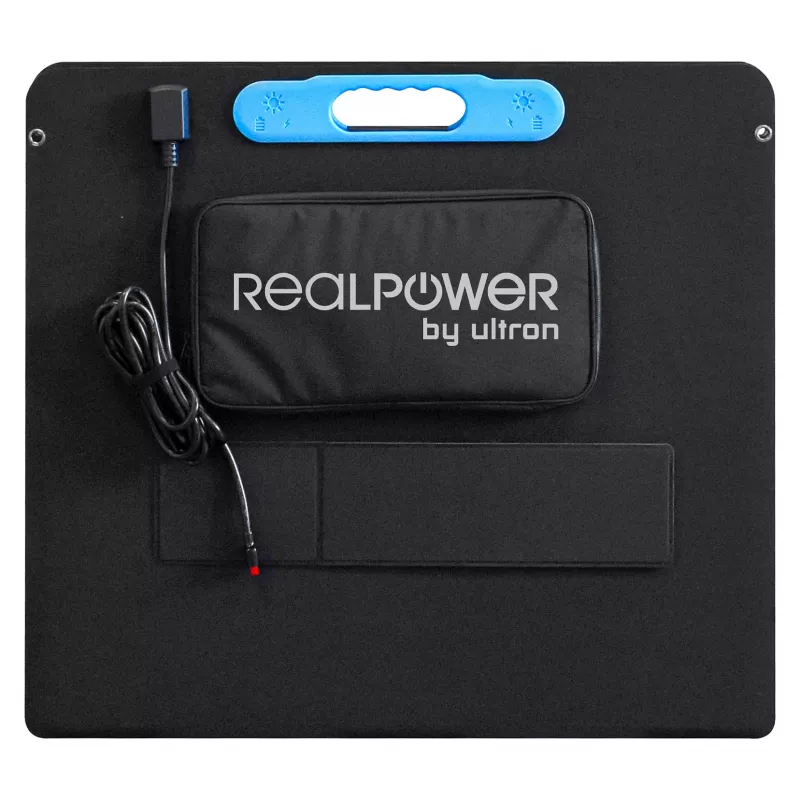

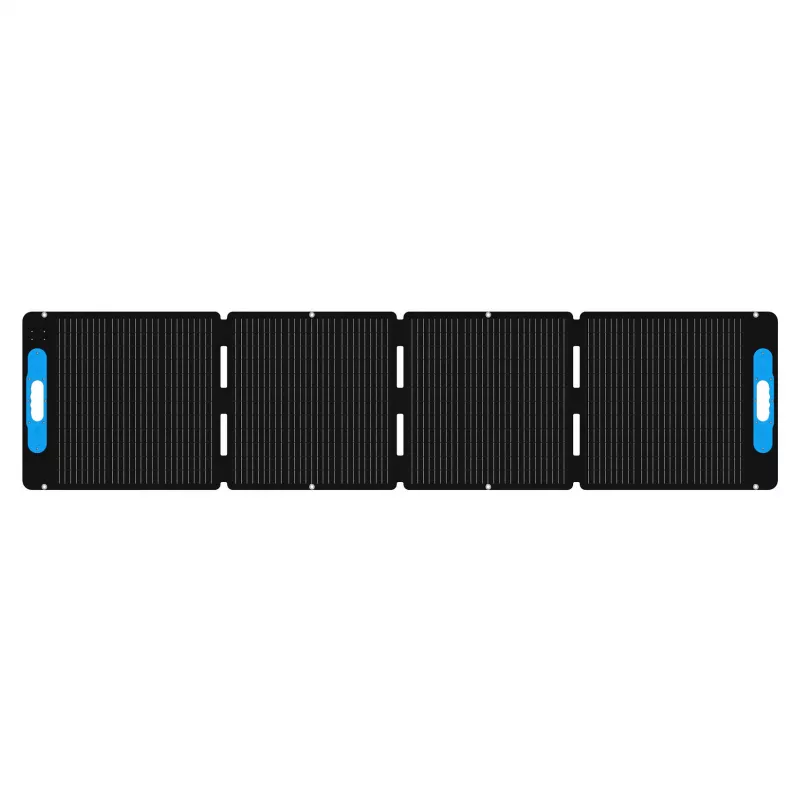

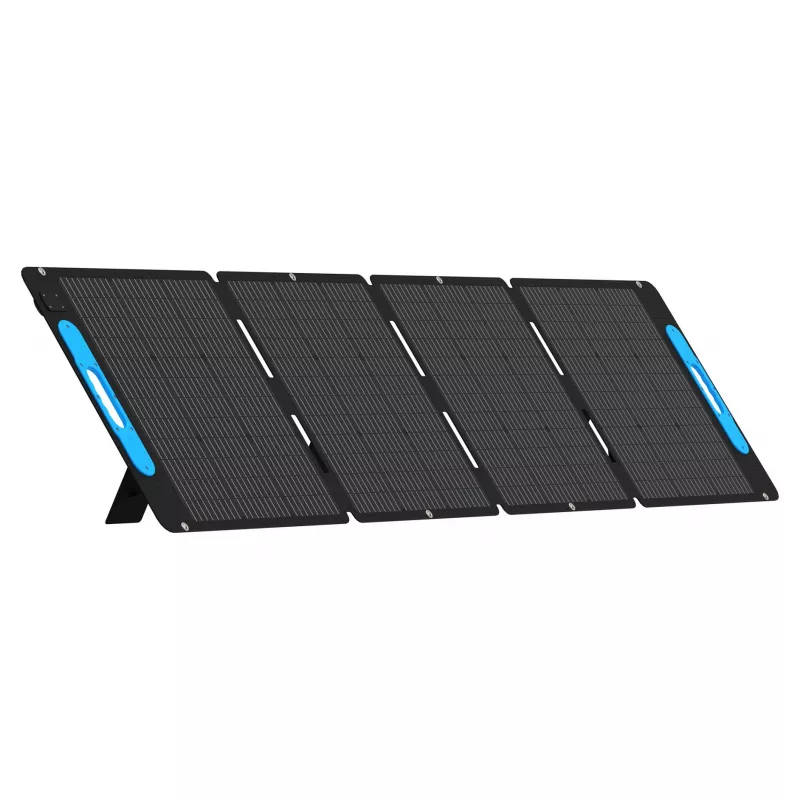

Pannello solare RealPower 411607 200 W silicio monocristallino 39 V 5,1 A

The RealPower 411607 200 W monocrystalline silicon solar panel delivers up to 200 watts of power with a maximum output voltage of 39 V and a rated current of 5.1 A. Designed for ground installation, this compact panel uses monocrystalline cells to provide stable energy generation for off-grid systems, battery charging and small-scale renewable installations. The panel is equipped with Anderson and DC connectors for straightforward electrical connections and fast integration into existing setups.

Advantages

Monocrystalline silicon cells offer higher efficiency and a smaller footprint compared with many polycrystalline alternatives, enabling more power per unit area. The panel’s 39 V maximum output voltage and 5.1 A current rating make it compatible with a variety of charge controllers and inverter configurations. Ground-installation design simplifies mounting and positioning, while Anderson and DC connectors reduce installation time and provide reliable contact points for routine use.

Suitable for

• Off-grid battery charging for cabins, RVs and boats
• Small residential and remote power systems
• Backup power for telecommunications or monitoring equipment
• Portable or temporary installations where ground mounting is preferred

Key specifications

• Rated power: 200 W
• Maximum output voltage: 39 V
• Rated current: 5.1 A
• Cell type: monocrystalline silicon

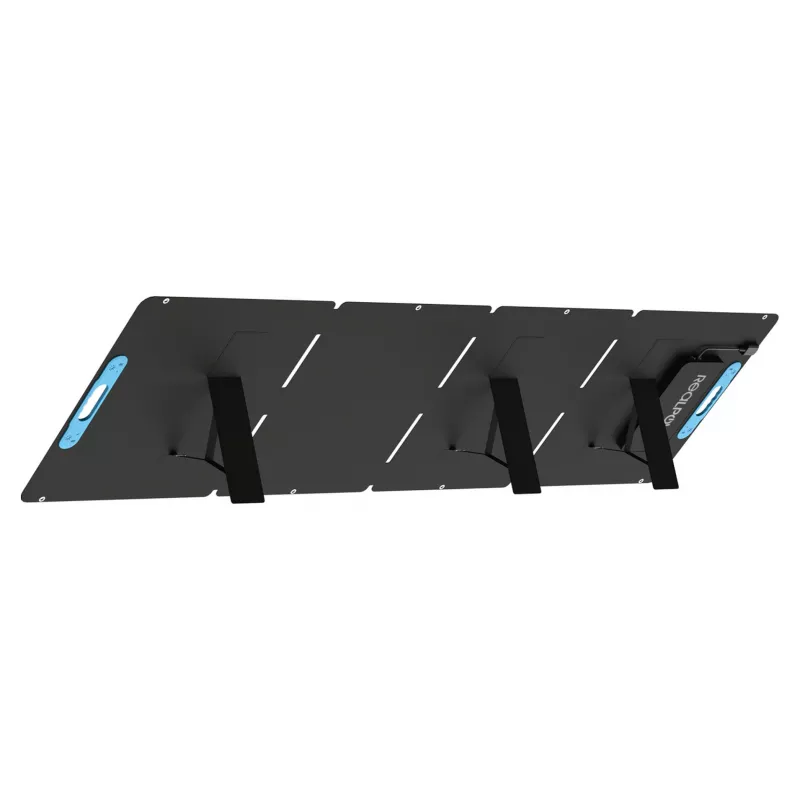

• Intended mounting: ground installation

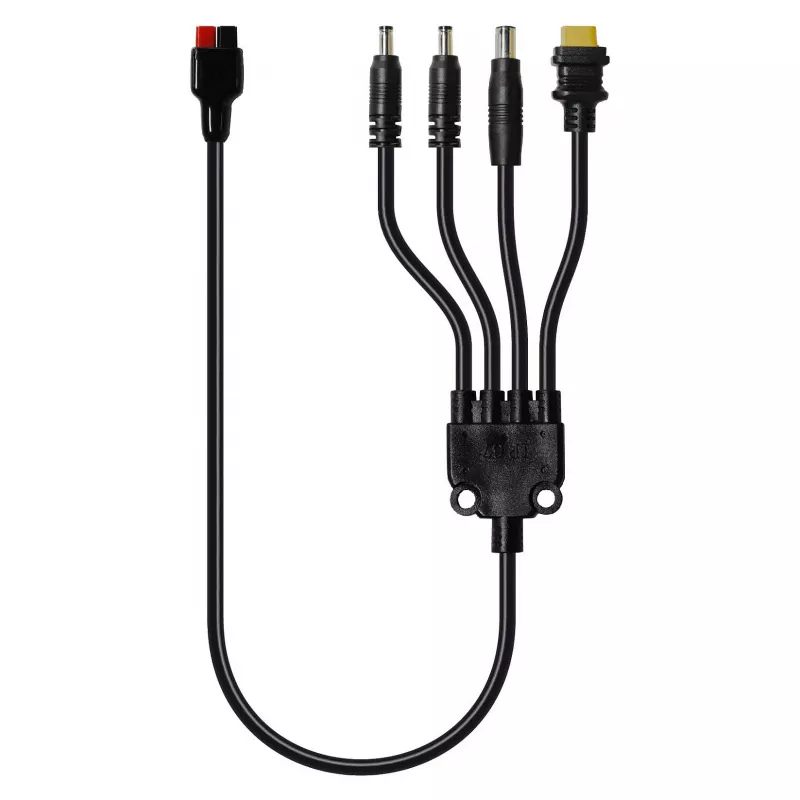

• Connectors: Anderson and DC connectors

How to use

Place the panel on a stable ground-mounted frame or support in a location with maximum sun exposure and minimal shading. Orient and tilt the panel according to local solar angles to optimize energy yield. Connect the panel to a compatible charge controller or inverter using the provided Anderson or DC connectors, observing correct polarity. Use appropriate wiring and overcurrent protection rated for the panel’s voltage and current. For battery charging, configure the charge controller settings to match the battery chemistry and voltage.

Recommendations

Regularly inspect connectors and cabling for corrosion or damage and keep the panel surface clean to maintain performance. Verify that mounting hardware secures the panel against wind and other environmental factors. For optimal longevity and safety, follow the installation guidelines of the charge controller or inverter manufacturer and consult a qualified installer if unsure about electrical connections.
