Parete laterale EFB Elektronik PRO-W422Z.GR

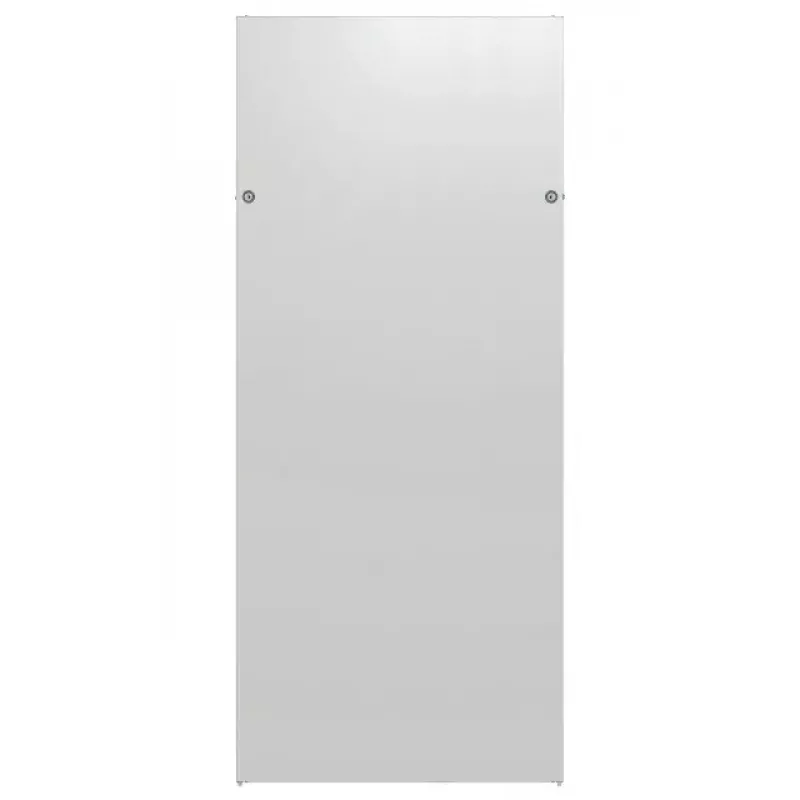

The EFB Elektronik PRO-W422Z.GR side wall is an accessory for 47U network cabinets with a depth of 1200 mm. Manufactured from steel sheet and finished in light grey (RAL7035) with the option of jet black (RAL9005), this side wall consists of two 600 mm elements and is supplied with a key and earthing cable to support secure installation and grounding.

Advantages

This side wall improves cabinet stability and protects installed equipment from dust and mechanical damage. Its steel construction and professional powder-coated finish offer durability and a consistent visual appearance for server rooms and network installations. Two latch locks (locking T3 / 1333) increase security and access control.

Suitable for

• 47U rack cabinets with 1200 mm depth
• Server rooms and data centres
• Network and telecom installations requiring locked side panels

Key specifications

• Height: 1200 mm
• Rack capacity: 42U (for 47U cabinets)
• Configuration: 2 elements of 600 mm each
• Locking: 2 x latch locking (locking T3 / 1333)
• Material: Steel sheet
• Finish colours: RAL7035 (light grey) / RAL9005 (jet black)
• Scope of delivery: side wall, 1 x key, earthing cable

How to use

Position the two 600 mm elements on the side of the 47U cabinet and secure them using the provided latch locks. Use the supplied key to lock or unlock the latches as required. Connect the earthing cable to the cabinet’s grounding point to ensure proper electrical bonding before placing active equipment inside the cabinet.

Recommendations

For optimal protection and longevity, install the side wall in a properly ventilated cabinet environment and perform periodic checks of the latch locks and earthing connection. Choose the finish colour that matches other cabinet components for a uniform appearance.
