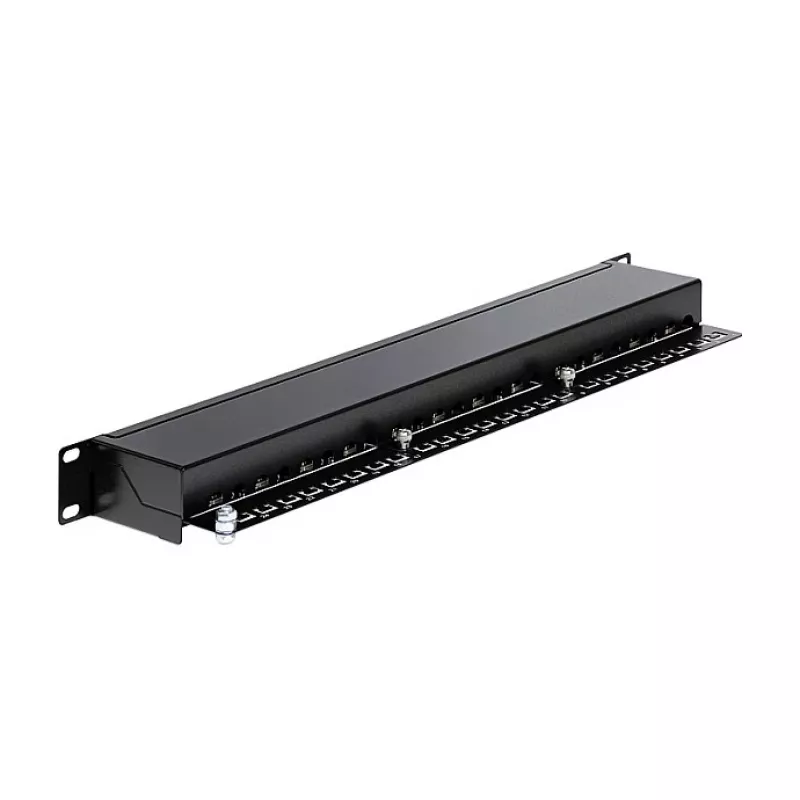

Patch Panel 1U DeLOCK 43298

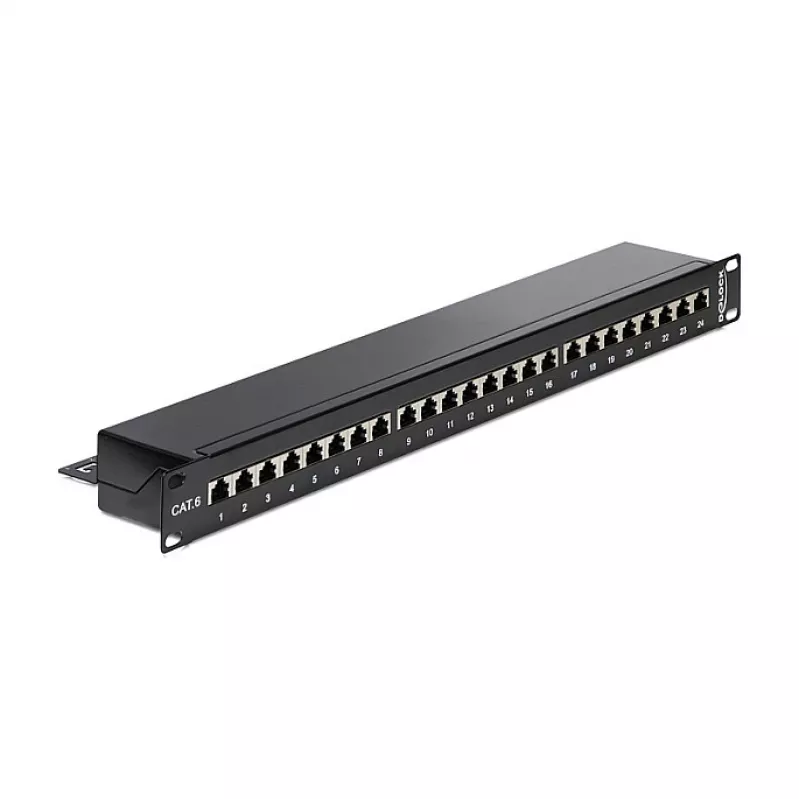

The DeLOCK 43298 is a 1U rack-mounted patch panel for 19" racks, designed for organizing RJ-45 network connections. It has a black finish and compact dimensions (483 mm × 44 mm × 109 mm), and provides a structured solution for terminating and routing up to 24 network cables using LSA blocks and a punch down tool.

Advantages

The patch panel supports up to 24 ports in a single 1U unit, saving rack space while keeping cabling tidy. Its LSA punch-down blocks allow secure, tool-assisted terminations and minimise signal loss caused by poor contacts. The metal housing and standard rack form factor ensure compatibility with typical server cabinets and offer durable, long-term use.

Suitable for

• Network patching in server rooms and data cabinets
• Structured cabling installations for small and medium businesses
• Organising Ethernet connections in comms cabinets and wiring closets

Key specifications

• Ports quantity: 24
• Form factor: 1U, 19" rack-mountable
• Interface: RJ-45 via LSA punch-down blocks
• Colour: Black
• Dimensions (W×H×D): 483 mm × 44 mm × 109 mm
• Brand: DELOCK, MPN: 43298, EAN: 4043619432981

How to use

Mount the patch panel into a standard 19" rack occupying one unit (1U) of height. Strip each network cable to the required length, align individual conductors to the corresponding LSA block positions following your wiring standard (e.g., T568A or T568B), and secure them with a punch down tool. After termination, route the cables neatly to the rear or sides and label ports as needed for easier identification.

Recommendations

Use a compatible LSA punch down tool and follow the chosen wiring standard consistently. Ensure cables are properly strain-relieved and avoid sharp bends to maintain signal integrity. For high-density or high-speed environments, consider using shielded cabling and verify compatibility with connected equipment.
